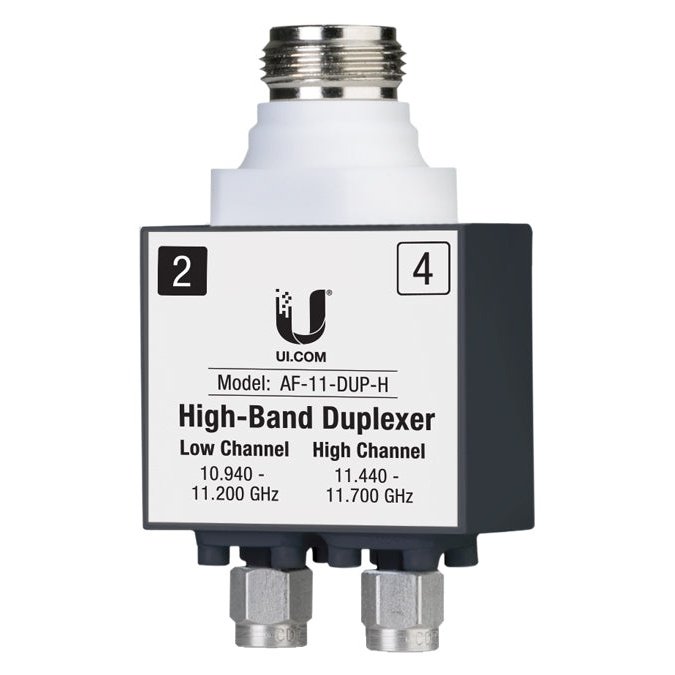

Elevate your AF-11 radio's capabilities with the Ubiquiti AF-11-DUP-H High Band Duplexer. This essential component enables the use of high band frequencies on the AF-11, making it an ideal choice for demanding wireless applications. A single duplexer is all that's needed for a SISO configuration, while two units are required for MIMO setups.
- High Band Support: Enable the use of high band frequencies on your AF-11 radio, enhancing its versatility and performance.
- Configurable Options: Use a single duplexer for SISO configurations or deploy two units for MIMO setups, providing flexibility for your specific needs.
- Low Channel: 10.940GHz – 11.200GHz
- High Channel: 11.440GHz – 11.700GHz
- Dimensions: 327 x 112 x 86 mm (12.87 x 4.41 x 3.39")
- Weight: 2.260 kg (5 lb)
- RF Connectors: (4) SMA Weatherproof: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1); (2) N-Type Waterproof, One per Duplexer
- Power Supply: 50VDC, 1.2A PoE Gigabit Adapter (Included)
- Power Method: Passive Power over Ethernet Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-) or DC Power Block
- Max. Power Consumption: 36W
- Supported Voltage Range: 38-56VDC
- Automatic Transmit Power Control (ATPC): Yes
- Mounting: Integrated Pole Mount Included; Oversized Rocket Mount Compatible
- LEDs: (8) Status LEDs: Data Port Link/Activity, Management Port Link/Activity, MIMO Mode, RF Link, (4) Autoscaling Signal Strength Bar Graph
- Operating Temperature: -40 to 55°C (-40 to 131°F)
- Certifications: CE, FCC, IC
AF-11 Networking Interface:
- Data Port: (1) 10/100/1000 Ethernet Port
- Management Port: (1) 10/100 Ethernet Port
- Processor: INVICTUS 2 IC
- Maximum Throughput: 1.2+ Gbps
- Maximum Range: 300+ km
- Encryption: 128-bit AES
- OS: airOS® F
- Wireless Modes: SISO/MIMO
- Latency: Full Duplex Mode < 200 µs at Full Throughput
- MTU (Maximum Transmission Unit): Up to 9600
Enhance the capabilities of your AF-11 radio with the Ubiquiti AF-11-DUP-H High Band Duplexer. Configure it for SISO or MIMO, and unlock the potential of high band frequencies for your wireless applications.
Note: AF-11 and dish not included. For inquiries regarding an 11GHz spectrum license, please contact firstname.lastname@example.org.
Note: The product image is for illustration purposes only. Actual products may vary.
