| CAMERA |
| Image Sensor |
1/2.7” Progressive Scan CMOS |
| Shutter Speed |
1/3 to 1/10000s |
| Slow Shutter |
Yes |
| Minimum Illumination |
0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism |
IR Cut Filter |
| Day/Night Switch |
Unified / Scheduled / Auto |
| LENS |
| Type |
Fixed Focal Lens |
| Focal Length |
2.8/4.0mm |
| Aperture |
F1.6 |
| FOV |
2.8mm: |
| Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134° |
| 4mm: |
| Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6° |
| Lens Mount |
M12*P 0.5 |
| DORI Distance |
2.8mm |
| Detect: 85m |
| Observe: 35m |
| Recognize: 17m |
| Identify: 8m |
| 4mm |
| Detect: 107m |
| Observe: 44m |
| Recognize: 21m |
| Identify: 11m |
| ANGLE ADJUSTMENT (MANUAL) |
| Range |
Pan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360° |
| ILLUMINATOR |
| IR LED |
Quantity: 4 |
| Range: 30m |
| Wavelength: 850nm |
| White LED |
Quantity: 4 |
| Range: 30m |
| Illuminator On/Off Control |
Auto / Scheduled / Always on / Always off |
| VIDEO |
| Max. Resolution |
3840 × 2160 |
| Main Stream |
Frame Rate: |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps |
| Resolution: |
| 3840 × 2160, 2560 × 1440, 2304 × 1296, 2048 × 1280, 1920 × 1080, |
| 1280 × 720 |
| Note: |
| If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| If 120dB is turned on, the frame rate can only support up to 20fps. |
| Sub-Stream |
Frame Rate: |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps |
| Resolution: |
| 704 × 576,640 × 480, 352 × 288, 320 × 240 |
| Note: |
| If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| If 120dB is turned on, the frame rate can only support up to 20fps. |
| Bit Rate Control |
CBR, VBR |
| Video Compression |
Main Stream: H.265+ / H.265 / H.264+ / H.264 |
| Sub-Stream: H.265 / H.264 |
| H.264 Type |
High Profile |
| H.264+ |
Main Stream Supported |
| H.265 Type |
Main Profile |
| H.265+ |
Main Stream Supported |
| Video Bit Rate |
Main Stream: 256Kbps to 6Mbps |
| Sub-Stream: 64Kbps to 512Kbps |
| IMAGE |
| Image Settings |
Mirror |
| Brightness |
| Contrast |
| Saturation |
| Sharpness |
| Exposure |
| WDR |
| White Balance |
| Prevent Overexposure to Infrared Light |
| HLC Adjustable by Client Software |
| Image Enhancement |
BLC / 3D DNR / HLC / SmartIR |
| Wide Dynamic Range |
120dB |
| SNR |
≥ 52dB |
| Image Parameters Switch |
Yes |
| Privacy Mask |
Up to 4× Masks |
| ROI |
1× Region |
| OSD Setting |
Yes |
| AUDIO |
| Audio Communication |
Two-Way Audio |
| Audio Input |
Yes |
| Audio Output |
Yes |
| Audio Compression |
Yes |
| Audio Sampling Rate |
8KHz |
| Environment Noise Filtering |
Yes |
| Audio Bit Rate |
64Kbps (G.711 alaw) |
| NETWORK |
| Protocol |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF |
Yes |
| API |
Open Network Video Interface (Profile S) |
| Simultaneous Live View |
3× Main Streams and 3× Sub-Streams |
| Client |
VIGI App, VIGI Security Manager, Web UI, VIGI VMS |
| Web Browser |
Google Chrome 57 and above |
| Firefox 52 and above |
| Safari 11 and above |
| Microsoft Edge 91 and above |
| Cloud |
Yes |
| Security |
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALARM AND EVENT MANAGEMENT |
| Smart Event |
Human and Vehicle Classification |
| Intrusion Detection |
| Line-Crossing Detection |
| Region Entering Detection |
| Region Exiting Detection |
| Object Abandoned Detection |
| Object Removal Detection |
| Loitering Detection |
| Smart Frame |
| People Detection |
| Vehicle Detection |
| Basic Event |
Motion Detection |
| Video Tampering Detection |
| Exception (Illegal Login) |
| Scene Change Detection |
| Alarm Linkage |
Memory Card Video Recording |
| Message Push |
| Audible Warning |
| White Light Flashing |
| Linkage Method |
N/A |
| Output Notification |
Message Push |
| INTERFACES |
| Network Interface |
1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm |
N/A |
| Reset Button |
Yes |
| Power |
DC Power Port |
| On-board Storage |
Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB |
| Built-In Microphone |
Yes; Records Anything Going on within a 4.5m Radius of the Camera |
| Built-In Speaker |
Yes |
| Audio |
N/A |
| GENERAL |
| Operating Temperature |
-30~60°C |
| Storage Temperature |
-40~60°C |
| Operating Humidity |
95% or Less (Non-Condensing) |
| Storage Humidity |
95% or Less (Non-Condensing) |
| Package Contents |

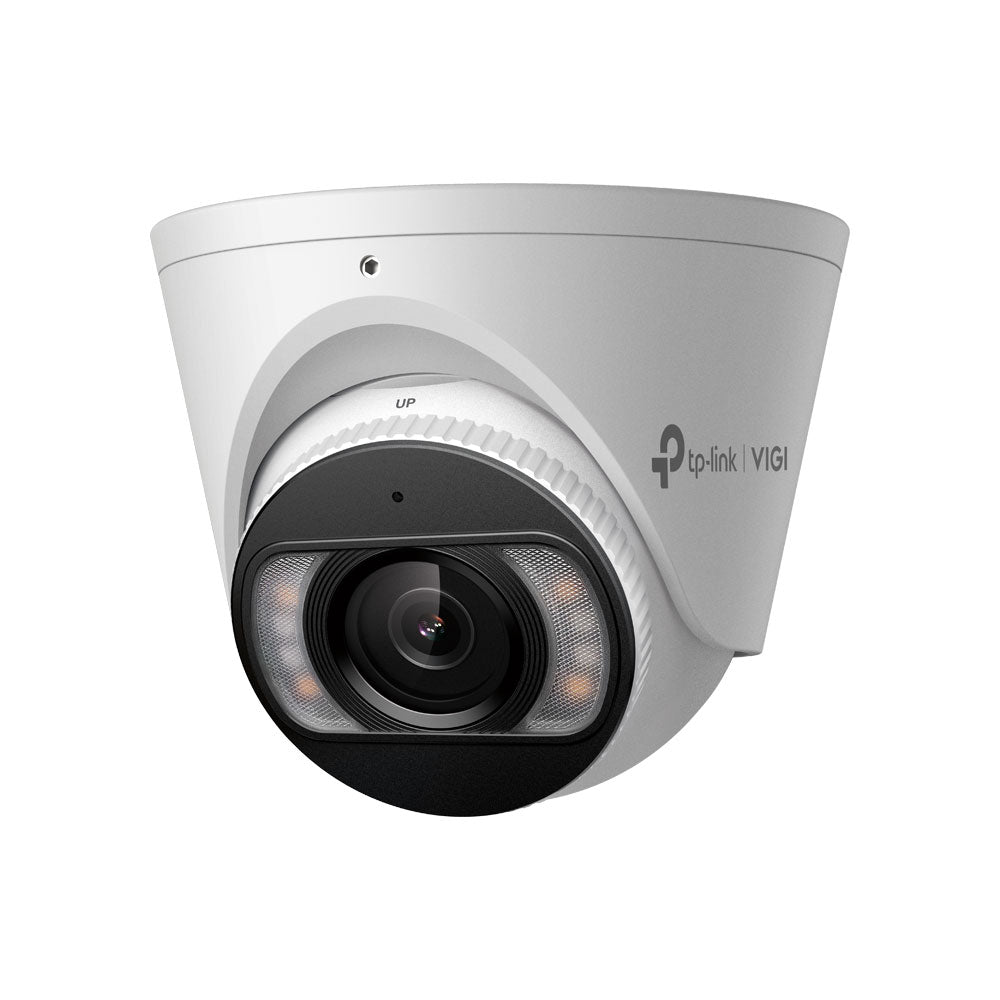

VIGI Network Camera |
| Quick Start Guide |
| Waterproof Cable Attachments |
| Mounting Accessories |
| Material |
Metal |
| Net Weight |
0.48kg |
| Power Supply |
12V DC ± 5%, Max. 11.5W, 5.5mm Coaxial Power Plug |
| PoE: 802.3af/at, class 0, Max. 12.5W |
| Protection |
IP67 |
| Product Dimensions (L × W × H) |
111 × 111 × 83.7mm |
| Certifications |
CE, NTRA, VCCI, KC, BSMI, FCC, IC |
