Description

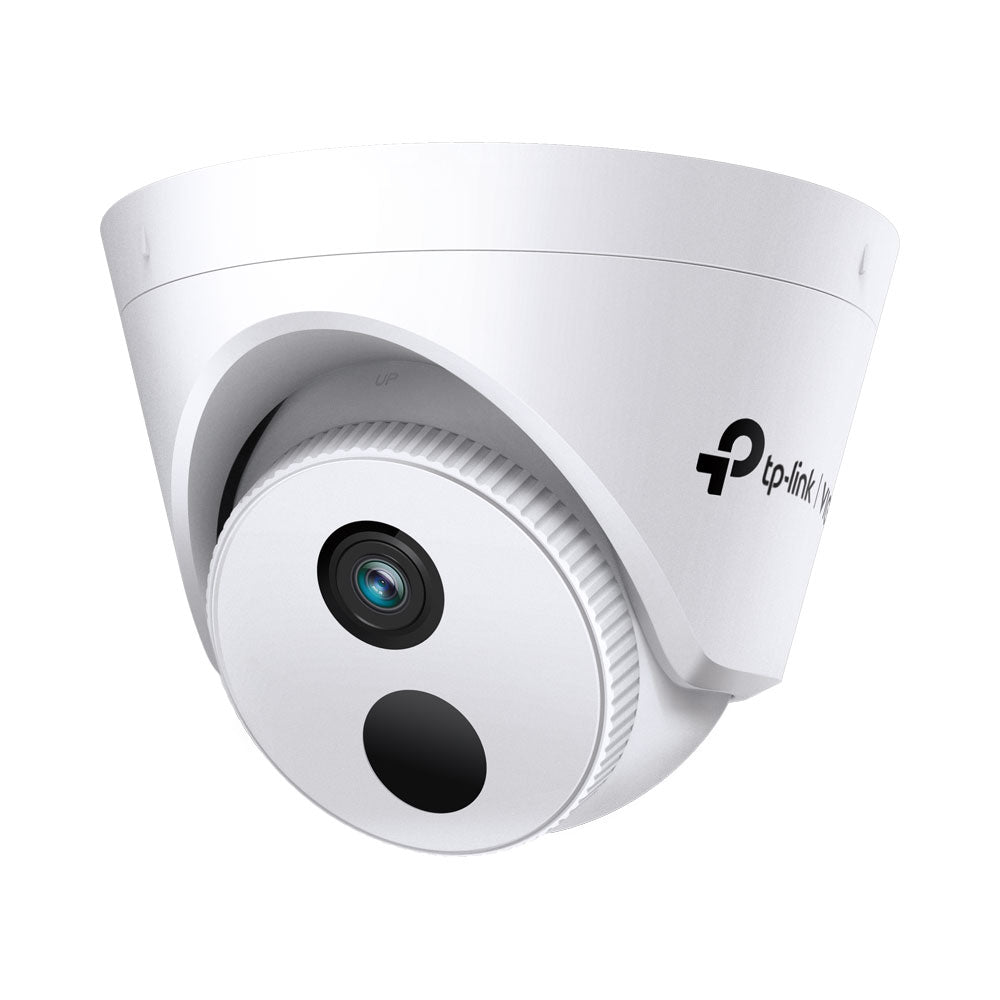

TP-Link VIGI C430I 3MP IR Turret Network Camera
Available in 2.8mm and 4mm
Security Never Shuts Down
FEATURES:
- 3MP Super-High Definition: The VIGI C430I camera comes with 3MP - more than enough pixels to pick up some of the more discrete details
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera or removes/abandons objects
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality
- Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR and Night Vision
- Corridor Mode: Allows you to change the image aspect ratio from 16:9 to 9:16 and helps to monitor long and narrow areas
- 12V DC/PoE: Two types of power supply not only give you more convenience but also make your wiring remarkably easy
- 2.8mm / 4mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, the C430I comes with two different lens types to better suit your security needs
- Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app and VIGI Security Manager
SPECIFICATIONS:
| CAMERA | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Lens | 2.8mm / 4mm |
| Aperture | 2.8mm: F2.2 |
| 4mm: F2.0 | |
| Lens Mount | M12 |
| Viewing Angle | 2.8mm: 97.8°/52.9°/117.9° (H/V/D) |
| 4mm: 82.5°/44.9°/99.3° (H/V/D) | |
| Day/Night Mechanism | IR Cut Filter |
| IR Working Distance | 30m |
| Minimum Illumination | Color: 0.1 Lux; 0 Lux with IR |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| NETWORK | |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
| GENERAL | |
| Package Contents | VIGI Network Camera |
| Quick Start Guide | |
| Mounting Accessories | |
| Operating Temperature | -30 -60°C |
| Certifications | CE/BSMI/VCCI/ONVIF |
| Dimensions ( H × W × D ) | 123 × 123 × 83 mm |
| Material | Plastic |
| General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug |
| PoE (802.3af/at, class 0) | |
| Power Consumption | 12V DC: Max 5W |
| PoE: Class 0 | |
| VIDEO/IMAGE | |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264 | |
| Frame Rate & Resolutions | Main Stream: |
| Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: 2304×1296, 2048×1280, 1920×1080, 1280×720 | |
| Sub-Stream: | |
| Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: 704×576, 640×480, 352×288, 320×240 | |
| Max. Resolution | 3MP (2304 × 1296) |
| Video Streaming | Main Stream |
| Sub-Stream | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Video Bit Rate | 64 Kbps to 4 Mbps |
| Day/Night Switch | Day/Night/Auto/Schedule |
| SMART FEATURE-SET | |
| Smart Event | Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Camera Tampering Detection, Exception (Illegal Login) |
| Linkage Method | Trigger Notification: ONVIF, HTTPS |
| Region of Interest | 1 Region |
| INTERFACES | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
