Description

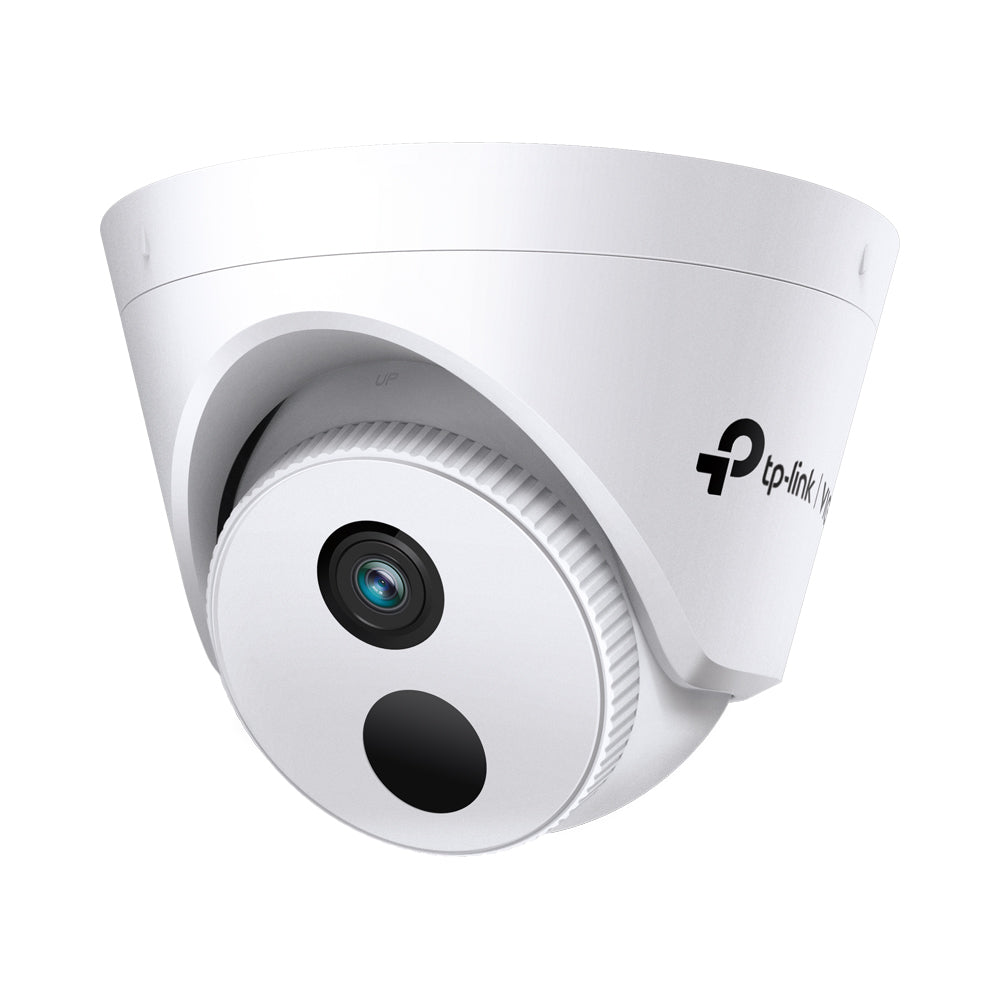

TP-Link VIGI C420I | 2MP Turret PoE IP Camera, H.265+
Available in 2.8mm and 4mm Lens
Security Never Shuts Down
FEATURES:
- 2MP Full-High Definition: The VIGI C420I camera comes with 2MP - more than enough pixels to pick up some of the more discrete details
- Human and Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera or removes/abandons objects
- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, eases network loads and reduces monitoring costs without sacrificing image quality
- Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR and Night Vision
- Corridor Mode: Allows you to change the image aspect ratio from 16:9 to 9:16 and helps to monitor long and narrow areas
- Simplified Deployment with PoE: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed
- 2.8/4mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, the C420I comes with two different lens types to better suit your security needs
- Flexible Management: Take full control over your security via three management methods: NVR UI, VIGI app and VIGI Security Manager
SPECIFICATIONS:
| CAMERA | |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Lens | 2.8mm / 4mm |
| Day/Night Switch | Unified / Scheduled / Auto |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| IR Working Distance | 30m |
| Shutter Speed | 1/3 to 1/10000s |
| Aperture | 2.8mm: F2.2 |
| 4mm: F2.0 | |
| Lens Mount | M12 |
| Viewing Angle | 2.8mm: 88.2° / 48.7° / 106.5° (H/V/D) |
| 4mm: 74.6° / 41.3° / 88.1° (H/V/D) | |
| Slow Shutter | Yes |
| Minimum Illumination | Colour: 0.1 Lux; 0 Lux with IR |
| Day/Night Mechanism | IR Cut Filter |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams and 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, VIGI NVR |
| Web Browser | Google Chrome 57 and above |
| Firefox 52 and above | |
| Safari 11 and above | |
| Microsoft Edge 91 and above | |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| GENERAL | |
| Operating Temperature | -30~60°C |
| Storage Temperature | -40~60°C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | VIGI Network Camera |
| Quick Start Guide | |
| Mounting Accessories | |
| Dimensions (H × W × D) | 123 × 123 × 83mm |
| Material | Plastic |
| General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Net Weight | 0.19kg |
| Gross Weight | 0.34kg |
| Power Consumption | PoE: Class 0 |
| Power Supply | PoE (802.3af/at, class 0) |
| Protection | N/A |
| Product Dimensions (L x W x H) | 123 × 83 × 123mm |
| Certifications | CE/BSMI/VCCI/ONVIF |
| INTERFACES | |
| Network Interface | 1× RJ45 10/100M Self-Adaptive Ethernet Port |
| ALARM AND EVENT MANAGEMENT | |
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception (Illegal Login) |
| Alarm Linkage | Message Push |
| Output Notification | Message Push |
| VIDEO/IMAGE | |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264 | |
| Frame Rate & Resolutions | Main Stream: |
| Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: 1920 × 1080, 1280 × 960, 1280 × 720 | |
| Sub-Stream: | |
| Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: 704 × 576, 640 × 480, 352 × 288, 320 × 240 | |
| Max. Resolution | 2MP (1920 × 1080) |
| Video Streaming | Main Stream |
| Sub-Stream | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Video Bit Rate | 64Kbps to 4Mbps |
| Day/Night Switch | Day/Night/Auto/Schedule |
| SMART FEATURE-SET | |
| Smart Event | Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Camera Tampering Detection, Exception (Illegal Login) |
| Linkage Method | Trigger Notification: ONVIF, HTTPS |
| Region of Interest | 1 Region |
| ILLUMINATOR | |
| IR LED | Quantity: 1 |
| Range: 30m | |
| Wavelength: 850nm | |
| White LED | N/A |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 2.8mm / 4mm |
| Aperture | 2.8mm: F2.2 |
| 4mm: F2.0 | |
| FOV | 2.8mm: |
| Horizontal FOV: 88.2°, Vertical FOV: 48.7°, Diagonal FOV: 106.5° | |
| 4mm: | |
| Horizontal FOV: 74.6°, Vertical FOV: 41.3°, Diagonal FOV: 88.1° | |
| Lens Mount | M12 |
| DORI Distance | 2.8mm |
| Detect: 45m | |
| Observe: 19m | |
| Recognize: 9m | |
| Identify: 5m | |
| 4 mm | |
| Detect: 60m | |
| Observe: 25m | |
| Recognize: 12m | |
| Identify: 6m | |
| ANGLE ADJUSTMENT (MANUAL) | |
| Range | Pan: 0° to 360° |
| Tilt: 0° to 85° | |
| Rotate: 0° to 360° | |
| VIDEO | |
| Max. Resolution | 1920 × 1080 |
| Main Stream | Frame Rate: |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: | |
| 1920 × 1080, 1280 × 960, 1280 × 720 | |
| Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps | |
| Sub-Stream | Frame Rate： |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: | |
| 704 × 576, 640 × 480, 352 × 288, 320 × 240 | |
| Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps | |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264 | |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256Kbps to 4Mbps |
| Sub-Stream: 64Kbps to 512Kbps | |
| IMAGE | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | WDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
