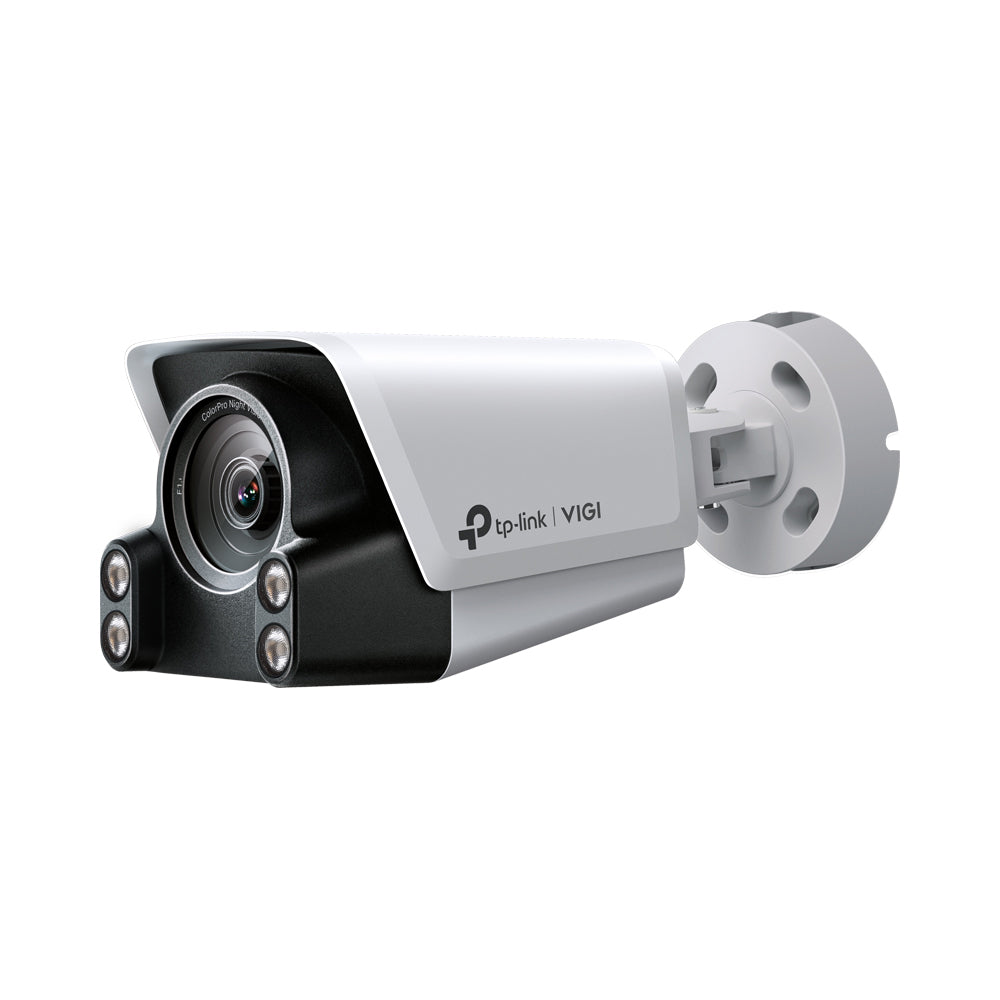

| CAMERA |
| Image Sensor |
1/1.8” Progressive Scan CMOS |
| Shutter Speed |
1/3 to 1/10000 s |
| Slow Shutter |
Yes |
| Aperture |
4mm: F1.0 |
| 6mm: F1.0 |
| Lens |
Fixed focal lens (4mm / 6mm) |
| Lens Mount |
M12 |
| Minimum Illumination |
Color: 0.0005 Lux; 0 Lux with white light |
| Day/Night Mechanism |
NA |
| Day/Night Switch |
Day/Night/Auto/Schedule-Switch |
| IR LED |
N/A |
| White LED |
Quantity: 4× |
| Digital Noise Reduction |
3D DNR |
| WDR |
120dB |
| Weatherproof Rating |
IP67 |
| Illumination Distance |
30m |
| Viewing Angle |
4mm: Horizontal FOV: 95.2°, Vertical FOV: 50.6°, Diagonal FOV: 114.7° |
| 6mm: Horizontal FOV: 57.1°, vertical FOV: 30.2°, Diagonal FOV: 67.2° |
| LENS |
| Type |
Fixed Focal Lens |
| Focal Length |
4mm |
| Aperture |
F1.0 |
| FOV |
4mm: Horizontal FOV: 95.2°, Vertical FOV: 50.6°, Diagonal FOV: 114.7° |
| Lens Mount |
M16*P 0.5 |
| DORI Distance |
4mm: |
| Detect: 70m |
| Observe: 29m |
| Recognize: 14m |
| Identify: 7m |
| ANGLE ADJUSTMENT (MANUAL) |
| Range |
Pan: -90° to 90° |
| Tilt: -90° to 90° |
| ILLUMINATOR |
| IR LED |
N/A |
| White LED |
Quantity: 4× |
| Range: 30m |
| Illuminator On/Off Control |
Auto/Scheduled/Always on/Always off |
| VIDEO |
| Max. Resolution |
2688 × 1520 |
| Main Stream |
Frame Rate: |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps |
| Resolution: |
| 2688 × 1520, 2560 × 1440, 2304 × 1296, 2048 × 1280, 1920 × 1080, 1280 × 720 |
| Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps |
| Sub-Stream |
Frame Rate: |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps |
| Resolution: |
| 640 × 480, 352 × 288, 320 × 240 |
| Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps |
| Bit Rate Control |
CBR, VBR |
| Video Compression |
Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264 |
| H.264 Type |
Main Profile/High Profile |
| H.264+ |
Main Stream Supported |
| H.265 Type |
Main Profile |
| H.265+ |
Main Stream Supported |
| Video Bit Rate |
Main Stream: 256Kbps to 6Mbps |
| Sub-Stream: 64Kbps to 512Kbps |
| IMAGE |
| Image Settings |
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement |
BLC/3D DNR/HLC |
| Wide Dynamic Range |
120dB |
| SNR |
≥ 52dB |
| Image Parameters Switch |
Yes |
| Privacy Mask |
Up to 4× Masks |
| ROI |
1× Region |
| OSD Setting |
Yes |
| AUDIO |
| Audio Communication |
Two-Way Audio |
| Audio Input |
Yes |
| Audio Output |
Yes |
| Audio Compression |
Yes |
| Audio Sampling Rate |
8KHz |
| Environment Noise Filtering |
Yes |
| Audio Bit Rate |
64Kbps (G.711 alaw) |
| NETWORK |
| Protocol |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF |
Yes |
| API |
ONVIF |
| Simultaneous Live View |
3× Main Streams and 3× Sub-Streams |
| Client |
VIGI App, VIGI Security Manager, VIGI NVR, Web |
| Web Browser |
Google Chrome 57 and above |
| Firefox 52 and above |
| Safari 11 and above |
| Microsoft Edge 91 and above |
| Cloud |
Yes |
| Security |
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Network Storage |
NAS (NFS, SMB/ CIFS) |
| ALARM AND EVENT MANAGEMENT |
| Smart Event |
Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection |
| Basic Event |
Motion Detection, Video Tampering Detection, Exception (Illegal Login) |
| Alarm Linkage |
Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Linkage Method |
N/A |
| Output Notification |
Message Push |
| DEEP LEARNING FUNCTION |
| Multi-Target-Type Detection |
Supports Simultaneous Detection and Capture of Human Body and Vehicle |
| People and Vehicle Analytics |
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier |
| Face Capture |
Support |
| Face Comparison |
Support |
| Perimeter Protection |
Motion, Line-Crossing, Intrusion, Region Entering, Region Exiting, Loitering |
| Supports Alarm Triggering by Specified Target Types (Human and Vehicle) |
| INTERFACES |
| Network Interface |
1RJ45 10/100M Self-Adaptive Ethernet Port |
| Audio Input |
Built-in Microphone |
| Audio Output |
Built-in Speaker |
| Alarm |
N/A |
| Reset Button |
Yes |
| Power |
DC Power Port |
| Button |
Reset Button |
| On-Board Storage |
Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB |
| Built-In Microphone |
Yes; Records Anything Going on within a 4.5m Radius of the Camera |
| Built-In Speaker |
Yes |
| Audio |
N/A |
| GENERAL |
| Operating Temperature |
-30~60°C |
| Storage Temperature |
-40~60°C |
| Operating Humidity |
95% or Less (Non-Condensing) |
| Storage Humidity |
95% or Less (Non-Condensing) |
| Package Contents |
VIGI Network Camera |
| Quick Start Guide |
| Waterproof Cable Attachments |
| Mounting Accessories |
| Material |
Front and Back Cover: Metal |
| Other: Plastic |
| General Features |
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Power Consumption |
12V DC: Max 10.1W |
| PoE: Class 0 |
| Power Supply |
12V DC ± 5%, 5.5mm Coaxial Power Plug |
| PoE (802.3af/at, class 0) |
| Protection |
IP67 |
| Product Dimensions (L × W × H) |
102 × 236 × 99mm |
| Certifications |
CE, RCM, BSMI, VCCI, RoHS, NTRA, KC |
| VIDEO/IMAGE |
| Video Compression |
Main stream: H.265+/H.265/H.264+//H.264 |
| Sub-Stream: H.265/H.264 |
| Frame Rate and Resolutions |
Main Stream |
| |
| Frame Rate: |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps |
| Resolution: 2688 × 1520,2560 × 1440, 2304 × 1296, 2048 × 1280, 1920 × 1080,1280 × 720 |
| |
| Sub-Stream |
| |
| Frame Rate: |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps |
| Resolution: 640 × 480, 352 × 288, 320 × 240 |
| Video Streaming |
Main Stream |
| Sub-Stream |
| Image Settings |
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Video Bit Rate |
Main Stream: 256Kbps to 4Mbps |
| Sub-Stream: 64Kbps to 512Kbps |
| SMART FEATURE-SET |
| Smart Event |
Intrusion Detection, Object Abandoned/Removal Detection, Region Entering Detection, Region Exiting Detection, Loitering Detection, Line Crossing Detection, Human Detection, Vehicle Detection |
| Basic Event |
Motion detection, Camera Tampering, Scene Change Detection, Exception (illegal login) |
| Linkage Method |
Trigger Notification: ONVIF, HTTPS |
| Region of Interest |
1× Region |
