Description

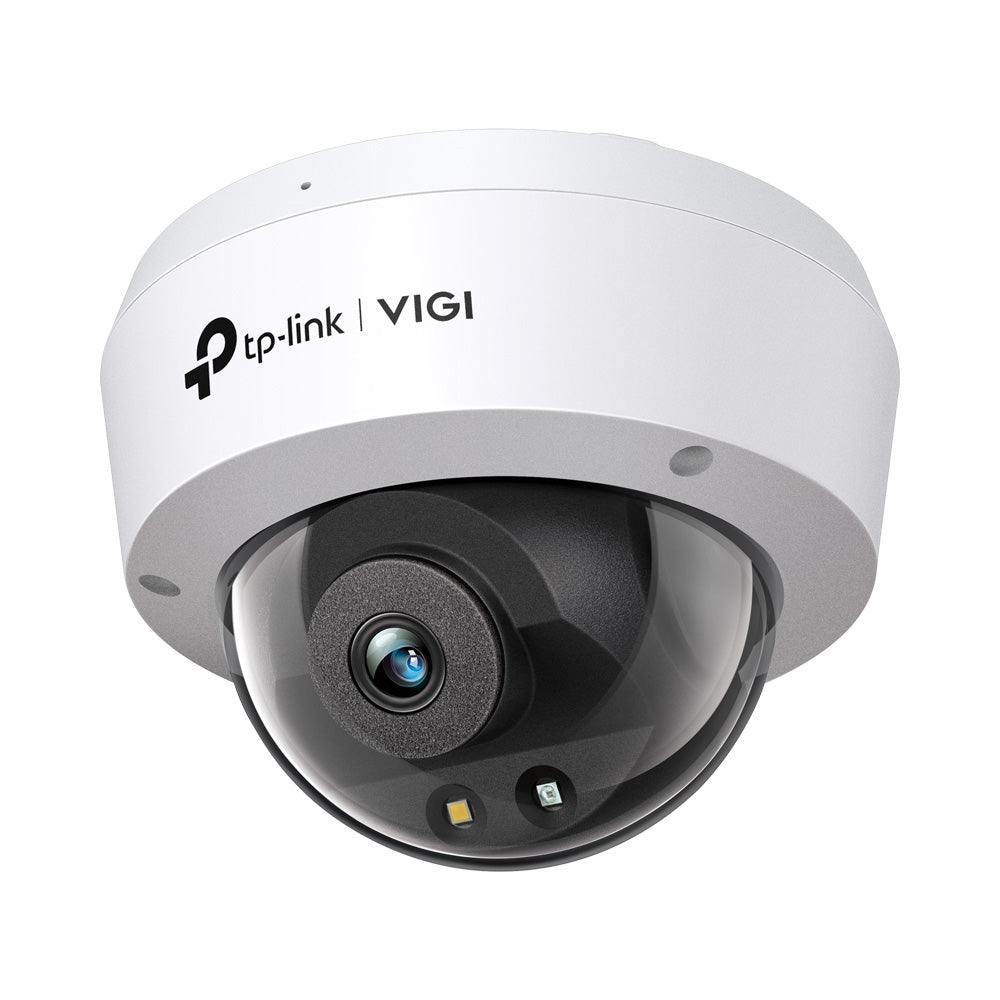

TP-Link VIGI C250 | 5MP Full-Colour Dome Network Camera
Available in 2.8mm or 4mm Lens
All The Colours, All The Time
24/7 Stunning Visual Experience
FEATURES:
- 5MP Super-High Definition - The camera comes with 5MP - more than enough pixels to pick up some of the more discrete details.
- 24H Full-Colour - Obtain 24-hour colour details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor and attached supplemental lights.
- Human and Vehicle Classification - Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection - Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
- People and Vehicle Analytics - Quickly find people and vehicles of interest using a series of attributes, allowing you to improve search efficiency.
- Built-In Microphone - Features a built-in microphone to record anything going on within a 4.5m radius of the camera.
- IK10 Vandal-Proof and IP67 Waterproof - With vandal-resistant, rugged housing and waterproof design, this VIGI dome. camera is built tough to withstand vandalism and harsh environments, with rain and dust, for constant security anywhere and anytime.
- H.265+ - Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality.
- Smart Video Enhancement - VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, True WDR, 3D DNR and Night Vision.
- PoE/12V DC - Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
- Flexible Management and Storage - Take full control over your security via four management methods: the web UI, NVR UI, VIGI App and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB).
SPECIFICATIONS:
| CAMERA | |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Day/Night Switch | Day/Night/Auto/Schedule-Switch |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/white light |
| Day/Night Mechanism | IR Cut Filter |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3× Main Streams and 3× Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome 57 and above |
| Firefox 52 and above | |
| Safari 11 and above | |
| Microsoft Edge 91 and above | |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Network Storage | NAS (NFS, SMB/ CIFS) |
| GENERAL | |
| Operating Temperature | -30~60 °C |
| Storage Temperature | -40~60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | VIGI Network Camera |
| Quick Start Guide | |
| Waterproof Cable Attachments | |
| Mounting Accessories | |
| Material | Plastic |
| Net Weight | 0.28kg |
| Gross Weight | 0.47kg |
| Power Supply | 12V DC ± 5%, Max. 7W, 5.5mm Coaxial Power Plug |
| PoE: 802.3at, class 0, Max. 8W | |
| Power Consumption | Maximum: 7W |
| Typical (Day Mode): 1.5W | |
| Typical (Night Mode with IR LED): 2.5W | |
| Typical (Night Mode with White LED): 2.8W | |
| Protection | IP67, IK10 |
| Product Dimensions (L × W × H) | Φ115 × 85.7mm |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
| INTERFACES | |
| Network Interface | 1× RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | N/A |
| Audio | N/A |
| ALARM AND EVENT MANAGEMENT | |
| Smart Event | Human and Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception (Illegal Login), Scene Change Detection |
| Alarm Linkage | Memory Card Video Recording, Message Push, White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
| DEEP LEARNING FUNCTION | |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier |
| Multi-Target-Type Detection | Supports Simultaneous Detection and Capture of Human Body and Vehicle |
| Face Capture | N/A |
| Face Comparison | N/A |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 2.8/4mm |
| Aperture | 2.8mm: F1.6 |
| 4mm: F1.6 | |
| FOV | 2.8mm: |
| Horizontal FOV: 109°, Vertical FOV: 57°, Diagonal FOV: 128° | |
| 4mm: | |
| Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107° | |
| Lens Mount | M12*P 0.5 |
| DORI Distance | 2.8mm |
| Detect: 64m | |
| Observe: 27m | |
| Recognize: 13m | |
| Identify: 6m | |
| 4mm | |
| Detect: 80m | |
| Observe: 33m | |
| Recognize: 16m | |
| Identify: 8m | |
| ANGLE ADJUSTMENT (MANUAL) | |
| Range | Pan: 0° to 360°, Tilt: 0° to 85° |
| AUDIO | |
| Audio Communication | N/A |
| Audio Input | Yes |
| Audio Output | N/A |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64Kbps (G.711 alaw) |
| ILLUMINATOR | |
| IR LED | Quantity: 1× |
| Range: 30m | |
| Wavelength: 850nm | |
| White LED | Quantity: 1× |
| Range: 30m | |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
| Max. Resolution | 2880 × 1620 |
| Main Stream | Frame Rate: |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: | |
| 2880 × 1620,2688 × 1520, 2304 × 1296, 2048 × 1280, 1920 × 1080, 1280 × 720 | |
| Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps | |
| Sub-Stream | Frame Rate: |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | |
| Resolution: | |
| 704 × 576,640 × 480, 352 × 288, 320 × 240 | |
| Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. | |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264 | |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256Kbps to 6Mbps |
| Sub-Stream: 64Kbps to 512Kbps | |
| IMAGE | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4× Masks |
| ROI | 1× Region |
| OSD Setting | Yes |
