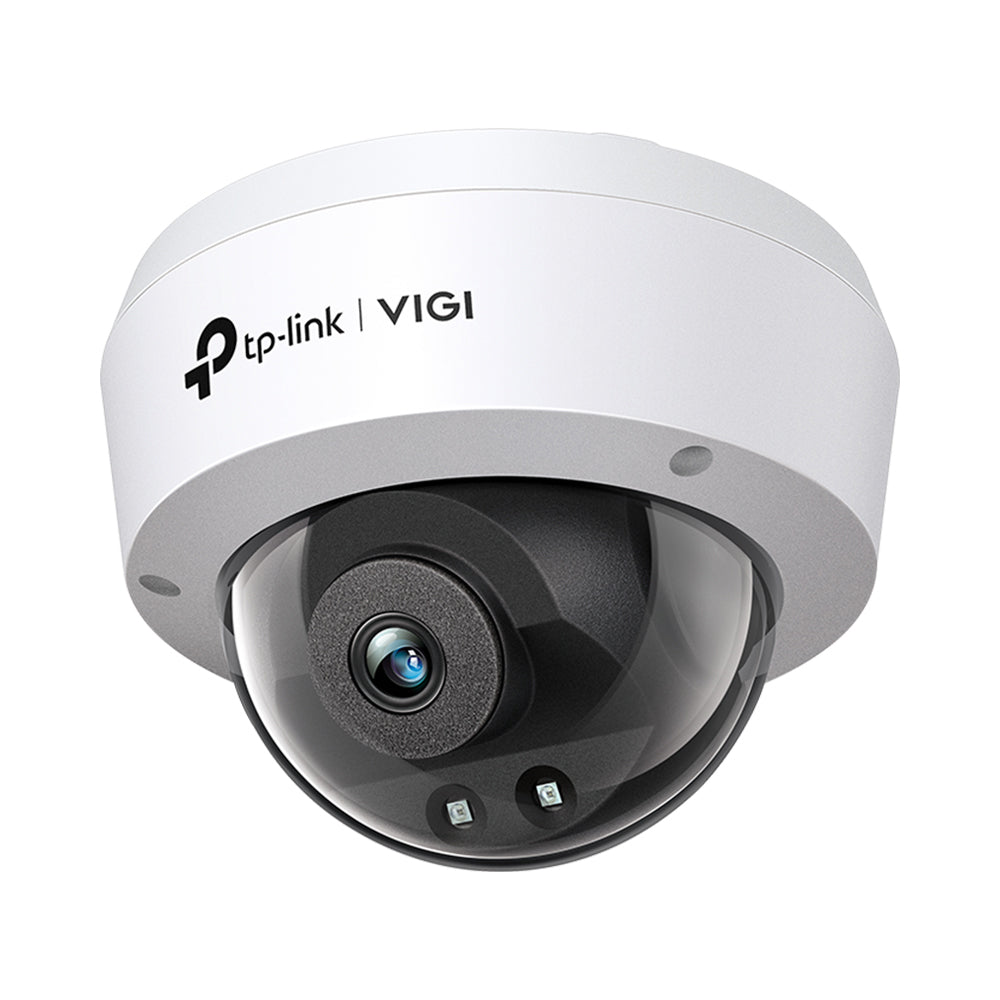

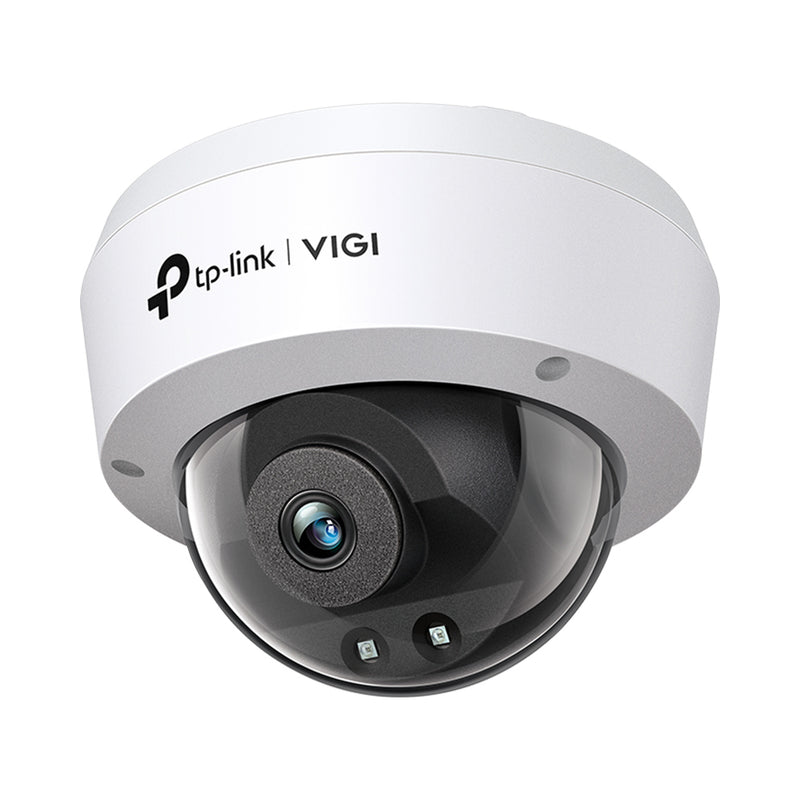

| CAMERA |
| Image Sensor |
1/3” Progressive Scan CMOS |
| Lens |
2.8mm / 4mm |
| Day/Night Switch |
Unified/ Scheduled / Auto |
| Digital Noise Reduction |
3D DNR |
| WDR |
DWDR |
| Weatherproof Rating |
IP67 |
| IR Working Distance |
30m |
| Shutter Speed |
1/3 to 1/10000 s |
| Aperture |
2.8mm: F2.2 |
| 4mm: F2.2 |
| Lens Mount |
M12 |
| Viewing Angle |
2.8mm: 88.8°/48.9°/106.5°(H/V/D) |
| 4mm: 75.1°/41.5°/88.7°(H/V/D) |
| Slow Shutter |
Yes |
| Minimum Illumination |
Colour: 0.1 Lux; 0 Lux with IR |
| Day/Night Mechanism |
IR Cut Filter |
| NETWORK |
| Protocol |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF |
Yes |
| API |
ONVIF |
| Simultaneous Live View |
3× Main Streams and 3× Sub-Streams |
| Client |
VIGI App, VIGI Security Manager, VIGI NVR, Web |
| Web Browser |
Google Chrome 57 and above |
| Firefox 52 and above |
| Safari 11 and above |
| Microsoft Edge 91 and above |
| Cloud |
Yes |
| Security |
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| GENERAL |
| Operating Temperature |
-30~60°C |
| Storage Temperature |
-40~60°C |
| Operating Humidity |
95% or Less (Non-Condensing) |
| Storage Humidity |
95% or Less (Non-Condensing) |
| Package Contents |
VIGI Network Camera |
| Quick Start Guide |
| Waterproof Cable Attachments |
| Mounting Accessories |
| Material |
Plastic |
| General Features |
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Net Weight |
0.27kg |
| Gross Weight |
0.45kg |
| Power Consumption |
12V DC: Max. 5W (Power Adapter Not Included) |
| PoE: Class 0 |
| Power Supply |
12V DC ± 5%, 5.5mm Coaxial Power Plug (Power Adapter Not Included) |
| PoE (802.3af/at, class 0) |
| Vandal Resistant |
IK10 |
| Protection |
IP67, IK10 |
| Product Dimensions (L × W × H) |
115 × 86 × 115mm |
| Certifications |
CE/BSMI/VCCI/ONVIF |
| INTERFACES |
| Network Interface |
1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Alarm |
N/A |
| Reset Button |
N/A |
| Power |
DC Power Port |
| On-board Storage |
N/A |
| Built-in Microphone |
N/A |
| Built-in Speaker |
N/A |
| Audio |
N/A |
| ALARM AND EVENT MANAGEMENT |
| Smart Event |
Human and Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event |
Motion Detection, Video Tampering Detection, Exception (Illegal Login) |
| Alarm Linkage |
Message Push |
| Linkage Method |
N/A |
| Output Notification |
Message Push |
| VIDEO/IMAGE |
| Video Compression |
Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264 |
| Frame Rate & Resolutions |
Main Stream: |
| Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps |
| Resolution: 2560 × 1440, 2304 × 1296, 2048 × 1280, 1920 × 1080, 1280 × 720 |
| Sub-Stream: |
| Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps |
| Resolution: 640 × 480, 352 × 288, 320 × 240 |
| Max. Resolution |
4MP (2560 × 1440) |
| Video Streaming |
Main Stream |
| Sub-Stream |
| Image Settings |
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement |
BLC/3D DNR/HLC/SmartIR |
| Video Bit Rate |
64Kbps to 4Mbps |
| Day/Night Switch |
Day/Night/Auto/Schedule |
| SMART FEATURE-SET |
| Smart Event |
Human and Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event |
Motion Detection, Video Tampering Detection, Exception (Illegal Login) |
| Linkage Method |
Trigger Notification: ONVIF, HTTPS |
| Region of Interest |
1× Region |
| AUDIO |
| Audio Communication |
N/A |
| Audio Input |
N/A |
| Audio Output |
N/A |
| Audio Compression |
N/A |
| Audio Sampling Rate |
N/A |
| Environment Noise Filtering |
N/A |
| Audio Bit Rate |
N/A |
| ILLUMINATOR |
| IR LED |
Quantity: 2 |
| Range: 30m |
| Wavelength: 850nm |
| White LED |
N/A |
| Illuminator On/Off Control |
Auto/Scheduled/Always on/Always off |
| LENS |
| Type |
Fixed Focal Lens |
| Focal Length |
2.8mm / 4mm |
| Aperture |
2.8mm: F2.2 |
| 4mm: F2.2 |
| FOV |
2.8 mm: |
| Horizontal FOV: 88.8°, Vertical FOV: 48.9°, Diagonal FOV: 106.5° |
| 4 mm: |
| Horizontal FOV: 75.1°, Vertical FOV: 41.5°, Diagonal FOV: 88.7° |
| Lens Mount |
M12 |
| DORI Distance |
2.8mm: |
| Detect:60m |
| Observe: 25m |
| Recognize: 12m |
| Identify: 6m |
| 4mm: |
| Detect: 80m |
| Observe:33m |
| Recognize: 16m |
| Identify: 8m |
| ANGLE ADJUSTMENT (MANUAL) |
| Range |
Pan: 0° to 355° |
| Tilt: 0° to 75° |
| VIDEO |
| Max. Resolution |
2560 × 1440 |
| Main Stream |
Frame Rate: |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps |
| Resolution: 2560 × 1440, 2304 × 1296, 2048 × 1280, 1920 × 1080, 1280 × 720 |
| Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream |
Frame Rate: |
| 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps |
| 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps |
| Resolution: 640 × 480,352 × 288, 320 × 240 |
| Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control |
CBR, VBR |
| Video Compression |
Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264 |
| H.264 Type |
Main Profile/High Profile |
| H.264+ |
Main Stream Supported |
| H.265 Type |
Main Profile |
| H.265+ |
Main Stream Supported |
| Video Bit Rate |
Main Stream: 256 Kbps to 4 Mbps |
| Sub-Stream: 64 Kbps to 512 Kbps |
| IMAGE |
| Image Settings |
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement |
BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range |
DWDR |
| SNR |
≥ 52 dB |
| Image Parameters Switch |
Yes |
| Privacy Mask |
Up to 4× Masks |
| ROI |
1× Region |
| OSD Setting |
Yes |
