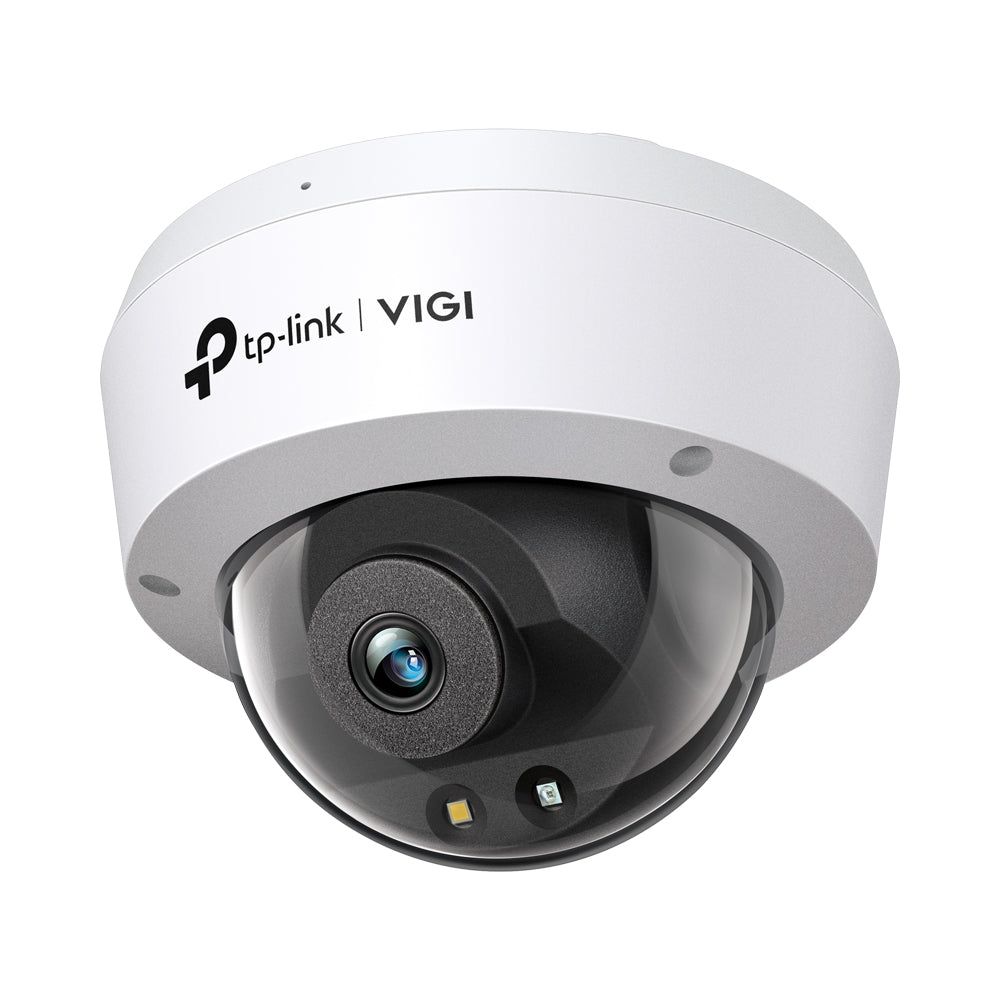

Tp-Link Vigi C240 4Mp Full-Colour Dome Poe Ip Camera, H.265+

Roll over image to zoom in

Tp-Link Vigi C240 4Mp Full-Colour Dome Poe Ip Camera, H.265+

Name: Tp-Link Vigi C240 4Mp Full-Colour Dome Poe Ip Camera, H.265+
Brand: Tp-Link
SKU: CAM-C240-2.8MM
Price: 979.0 ZAR
Availability: OutOfStock

Save 4%

Tp-LinkSKU: CAM-C240-2.8MM

filler

TP-Link VIGI C240 | 4MP Full-Colour Dome Network Camera

All The Colours, All The Time

FEATURES:

4MP Super-High Definition: The camera comes with 4MP - more than enough pixels to pick up some of the more discrete details
24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor and attached supplemental lights
Human and Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera or removes/abandons objects
Built-In Microphone: Features a built-in microphone to record anything going on within a 4.5m radius of the camera
IK10 Vandal-Proof and IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime
H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads and reduce monitoring costs without sacrificing image quality
Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR and Night Vision
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy
Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256 GB)

SPECIFICATIONS:

CAMERA
Image Sensor	1/3” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	Color: 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified / Scheduled / Auto
Lens	2.8mm
Aperture	2.8mm: F1.6
Lens Mount	M12
Viewing Angle	2.8mm:
Viewing Angle	Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0°
Pan/Tilt Range	Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°
Digital Noise Reduction	3D DNR
WDR	DWDR
Weatherproof Rating	IP67
LENS
Type	Fixed Focal Lens
Focal Length	2.8mm
Aperture	2.8mm: F1.6
FOV	2.8mm:
FOV	Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0°
Lens Mount	M12
DORI Distance	2.8 mm:
	Detect: 64m
	Observe: 27m
	Recognize: 13m
	Identify: 6m
VIDEO
Max. Resolution	2560 × 1440
Main Stream	Frame Rate:
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

	Resolution:
	2560 × 1440,2304 × 1296, 2048 × 1280, 1920 × 1080, 1280 × 720


	Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps
Sub-Stream	Frame Rate:
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

	Resolution:
	640 × 480,352 × 288, 320 × 240

	Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
Video Compression	Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps
Video Bit Rate	Sub-Stream: 64 Kbps to 512 Kbps
ILLUMINATOR
IR LED	Quantity: 1
	Range: 30m
	Wavelength: 850nm
White LED	Quantity: 1
White LED	Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
Angle Adjustment (Manual)
Range	Pan: 0° to 355°
Range	Tilt: 0° to 75°
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	DWDR
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
AUDIO
Audio Communication	N/A
Audio Input	Yes
Audio Output	N/A
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps (G.711 alaw)
NETWORK
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser	Google Chrome 57 and above
	Firefox 52 and above
	Safari 11 and above
	Microsoft Edge 91 and above
Cloud	Yes
ONVIF	Yes
INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm	N/A
Reset Button	N/A
Power	DC Power Port
On-board Storage	Built-in Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone	Yes
Built-in Speaker	N/A
Audio	N/A
ALARM AND EVENT MANAGEMENT
Smart Event	Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception (Illegal Login)
Alarm Linkage	White Light Flashing, Message Push
Linkage Method	N/A
Output Notification	Message Push
GENERAL
Package Contents	VIGI Network Camera
	Quick Start Guide
	Waterproof Cable Attachments
	Mounting Accessories
Operating Temperature	-30 ~ 60°C
Storage Temperature	-40 ~ 60°C
Storage Humidity	95% or Less (Non-Condensing)
Operating Humidity	95% or Less (Non-Condensing)
Dimensions( H × W × D )	115 × 115 × 86 mm
Material	Plastic
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight	0.28kg
Gross Weight	0.46kg
Power Consumption	12V DC: Max 5.4W
Power Consumption	PoE: Class 0
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug
Power Supply	PoE (802.3af/at, class 0)
Vandal Resistant	IK10
Protection	IP67, IK10
Product Dimensions (L × W × H)	115 × 86 × 115mm
Certifications	CE/BSMI/VCCI/ONVIF
VIDEO/IMAGE
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
Video Compression	Sub-Stream: H.265/H.264
Frame Rate & Resolutions	Main Stream:
	Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720
	Sub-Stream:
	Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution: 640x480,352x288, 320x240
Max. Resolution	4MP (2560 × 1440)
Video Streaming	Main Stream
Video Streaming	Sub-Stream
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation (90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Video Bit Rate	64Kbps to 4Mbps
Day/Night Switch	Day/Night/Auto/Schedule
SMART FEATURE-SET
Smart Event	Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region
