| HARDWARE FEATURES |
|
| Interface |
• 48x 10/100/1000 Mbps RJ45 Ports |
| |
• 4x Gigabit SFP Slots |
| |
• 1x RJ45 Console Port |
| |
• 1x Micro-USB Console Port |
| Fan Quantity |
3 |
| Power Supply |
100-240 V AC~50/60 Hz |
| PoE+ Ports(RJ45) |
• Standard: 802.3at/af compliant |
| |
• PoE+ Ports: 48 Ports, up to 30 W per port |
| |
• Power Budget: 384 W |
| PoE Ports (RJ45) |
• Standard: 802.3at/af compliant |
| |
• PoE+ Ports: 48 Ports, up to 30 W per port |
| |
• PoE Power Budget: 384 W |
| Dimensions ( W x D x H ) |
440 x 330 x 44mm |
| Mounting |
Rack Mountable |
| Max Power Consumption |
52.5 W (no PD connected) |
| |
485.4 W (110 V/60 Hz) (with 384 W PD connected) |
| Max Heat Dissipation |
179.1 BTU/hr (110 V/60 Hz) (no PD connected) |
| |
1656.2 BTU/hr (110 V/60 Hz) (with 384 W PD connected) |
| PERFORMANCE |
|
| Switching Capacity |
104 Gbps |
| Packet Forwarding Rate |
77.4 Mpps |
| MAC Address Table |
16 K |
| Packet Buffer Memory |
12 Mbit |
| Jumbo Frame |
9 KB |
| SOFTWARE FEATURES |
|
| Quality of Service |
• 8 priority queues |
| |
• 802.1p CoS/DSCP priority |
| |
• Queue scheduling |
| |
- SP (Strict Priority) |
| |
- WRR (Weighted Round Robin) |
| |
- SP+WRR |
| |
• Bandwidth Control |
| |
- Port/Flow based Rating Limiting |
| |
• Smoother Performance |
| |
• Action for Flows |
| |
- Mirror (to supported interface) |
| |
- Redirect (to supported interface) |
| |
- Rate Limit |
| |
- QoS Remark |
| L2 and L2+ Features |
• Link Aggregation |
| |
- Static link aggregation |
| |
- 802.3ad LACP |
| |
- Up to 8 aggregation groups and up to 8 ports per group |
| |
• Spanning Tree Protocol |
| |
- 802.1d STP |
| |
- 802.1w RSTP |
| |
- 802.1s MSTP |
| |
- STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect |
| |
• Loopback Detection |
| |
- Port-based |
| |
- VLAN based |
| |
• Flow Control |
| |
- 802.3x Flow Control |
| |
- HOL Blocking Prevention |
| |
• Mirroring |
| |
- Port Mirroring |
| |
- CPU Mirroring |
| |
- One-to-One |
| |
- Many-to-One |
| |
- Tx/Rx/Both |
| L2 Multicast |
• Supports 511 (IPv4, IPv6) IGMP groups |
| |
• IGMP Snooping |
| |
- IGMP v1/v2/v3 Snooping |
| |
- Fast Leave |
| |
- IGMP Snooping Querier |
| |
- IGMP Authentication |
| |
• IGMP Authentication |
| |
• MVR |
| |
• MLD Snooping |
| |
- MLD v1/v2 Snooping |
| |
- Fast Leave |
| |
- MLD Snooping Querier |
| |
- Static Group Config |
| |
- Limited IP Multicast |
| |
• Multicast Filtering: 256 profiles and 16 entries per profile |
| VLAN |
• VLAN Group |
| |
- Max 4K VLAN Groups |
| |
• 802.1q Tagged VLAN |
| |
• MAC VLAN: 12 Entries |
| |
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16 |
| |
• GVRP |
| |
• VLAN VPN (QinQ) |
| |
- Port-Based QinQ |
| |
- Selective QinQ |
| |
• Voice VLAN |
| Access Control List |
• Time-based ACL |
| |
• MAC ACL |
| |
- Source MAC |
| |
- Destination MAC |
| |
- VLAN ID |
| |
- User Priority |
| |
- Ether Type |
| |
• IP ACL |
| |
- Source IP |
| |
- Destination IP |
| |
- Fragment |
| |
- IP Protocol |
| |
- TCP Flag |
| |
- TCP/UDP Port |
| |
- DSCP/IP TOS |
| |
- User Priority |
| |
• Combined ACL |
| |
• Packet Content ACL |
| |
• IPv6 ACL |
| |
• Policy |
| |
- Mirroring |
| |
- Redirect |
| |
- Rate Limit |
| |
- QoS Remark |
| |
• ACL apply to Port/VLAN |
| Security |
• IP-MAC-Port Binding |
| |
- DHCP Snooping |
| |
- ARP Inspection |
| |
- IPv4 Source Guard |
| |
• IPv6-MAC-Port Binding |
| |
- DHCPv6 Snooping |
| |
- ND Detection |
| |
- IPv6 Source Guard |
| |
• DoS Defend |
| |
• Static/Dynamic Port Security |
| |
- Up to 64 MAC addresses per port |
| |
• Broadcast/Multicast/Unicast Storm Control |
| |
- kbps/ratio/pps control mode |
| |
• IP/Port/MAC based access control |
| |
• 802.1X |
| |
- Port based authentication |
| |
- Mac based authentication |
| |
- VLAN Assignment |
| |
- MAB |
| |
- Guest VLAN |
| |
- Support Radius authentication and |
| |
accountability |
| |
• AAA (including TACACS+) |
| |
• Port Isolation |
| |
• Secure web management through HTTPS with SSLv3/TLS 1.2 |
| |
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2 |
| IPv6 |
• IPv6 Dual IPv4/IPv6 |
| |
• Multicast Listener Discovery (MLD) Snooping |
| |
• IPv6 ACL |
| |
• IPv6 Interface |
| |
• Static IPv6 Routing |
| |
• IPv6 neighbor discovery (ND) |
| |
• Path maximum transmission unit (MTU) discovery |
| |
• Internet Control Message Protocol (ICMP) version 6 |
| |
• TCPv6/UDPv6 |
| |
• IPv6 applications |
| |
- DHCPv6 Client |
| |
- Ping6 |
| |
- Tracert6 |
| |
- Telnet (v6) |
| |
- IPv6 SNMP |
| |
- IPv6 SSH |
| |
- IPv6 SSL |
| |
- Http/Https |
| |
- IPv6 TFTP |
| L3 Features |
• 16 IPv4/IPv6 Interfaces |
| |
• Static Routing |
| |
- 48 static routes |
| |
• Static ARP |
| |
• 316 ARP Entries |
| |
• Proxy ARP |
| |
• Gratuitous ARP |
| |
• DHCP Server |
| |
• DHCP Relay |
| |
• DHCP L2 Relay |
| Management |
• Web-based GUI |
| |
• Command Line Interface (CLI) through console port, telnet |
| |
• SNMPv1/v2c/v3 |
| |
- Trap/Inform |
| |
- RMON (1, 2, 3, 9 groups) |
| |
• SDM Template |
| |
• DHCP/BOOTP Client |
| |
• 802.1ab LLDP/LLDP-MED |
| |
• DHCP AutoInstall |
| |
• Dual Image, Dual Configuration |
| |
• CPU Monitoring |
| |
• Cable Diagnostics |
| |
• EEE |
| |
• Password Recovery |
| |
• SNTP |
| |
• System Log |
| Advanced Features |
• Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller |
| |
• Automatic Device Discovery |
| |
• Batch Configuration |
| |
• Batch Firmware Upgrading |
| |
• Intelligent Network Monitoring |
| |
• Abnormal Event Warnings |
| |
• Unified Configuration |
| |
• Reboot Schedule |
| |
• ZTP (Zero-Touch Provisioning) |
| MIBs |
• MIB II (RFC1213) |
| |
• Bridge MIB (RFC1493) |
| |
• P/Q-Bridge MIB (RFC2674) |
| |
• Radius Accounting Client MIB (RFC2620) |
| |
• Radius Authentication Client MIB (RFC2618) |
| |
• Remote Ping, Traceroute MIB (RFC2925) |
| |
• Support TP-Link private MIBs |
| |
• RMON MIB(RFC1757, rmon 1,2,3,9) |
| MANAGEMENT |
|
| Omada App |
Yes, through |
| |
• Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4) |
| |
• OC300 |
| |
• OC200 |
| |
• Omada Software Controller |
| Centralized Management |
• Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4) |
| |
• Omada Hardware Controller OC300 |
| |
• Omada Hardware Controller OC200 |
| |
• Omada Software Controller |
| Cloud Access |
Yes, through |
| |
• Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4) |
| |
• OC300 |
| |
• OC200 |
| |
• Omada Software Controller |
| Zero-Touch Provisioning |
Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210P v3.2, v5 and above, while is not supported by TL-SG2210P v4) |
| Management Features |
• Web-based GUI |
| |
• Command Line Interface (CLI) through console port, telnet |
| |
• SNMPv1/v2c/v3 |
| |
- Trap/Inform |
| |
- RMON (1, 2, 3, 9 groups) |
| |
• SDM Template |
| |
• DHCP/BOOTP Client |
| |
• 802.1ab LLDP/LLDP-MED |
| |
• DHCP AutoInstall |
| |
• Dual Image, Dual Configuration |
| |
• CPU Monitoring |
| |
• Cable Diagnostics |
| |
• EEE |
| |
• Password Recovery |
| |
• SNTP |
| |
• System Log |
| OTHERS |
|
| Certification |
CE, FCC, RoHS |
| Package Contents |

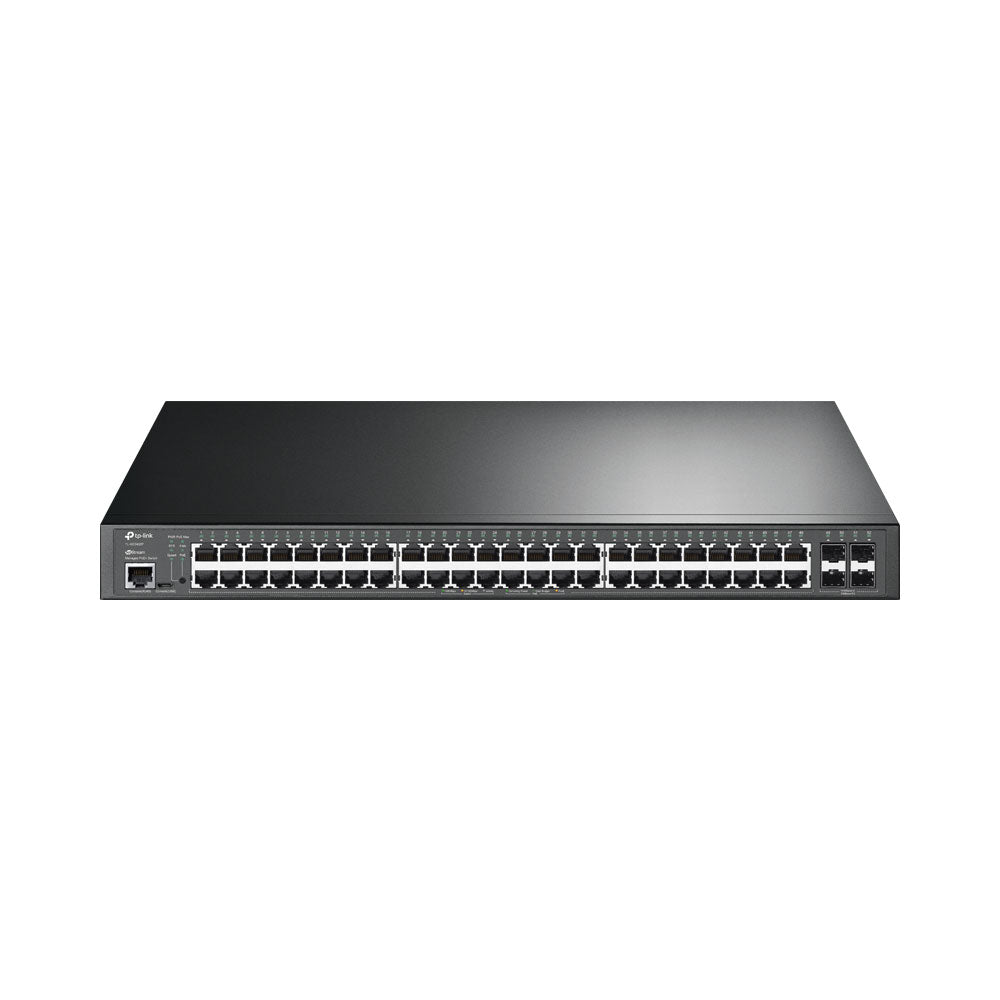

• TL-SG3452P Switch |
| |
• Power Cord |
| |
• Quick Installation Guide |
| |
• Rackmount Kit |
| |
• Rubber Feet |
