| HARDWARE FEATURES |
| Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, |
| IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, |
| IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
| Interface |
8 10/100/1000Mbps RJ45 Ports |
| 2 1000Mbps SFP Slots |
| (Auto-Negotiation/Auto MDI/MDIX) |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) |
| 1000BASE-X: MMF, SMF |
| Fan Quantity |
Fanless |
| Power Supply |
100~240VAC, 50/60Hz |
| External Power Adapter(Output: 53.5VDC/1.31A) |
| Power Consumption |
Maximum (PoE on): 75.3W (220V/50Hz) |
| Maximum (PoE off): 10.5W (220V/50Hz) |
| PoE Ports (RJ45) |
Standard: 802.3af/at compliant |
| PoE Ports: 8 Ports |
| Power Supply: 58W* |
| Dimensions ( W x D x H ) |
8.2 x 4.9 x 1.0 in (209 x 126 x 26mm) |
| PERFORMANCE |
| Bandwidth/Backplane |
20Gbps |
| Packet Forwarding Rate |
14.88Mpps |
| MAC Address Table |
8k |
| Packet Buffer Memory |
512KB |
| Jumbo Frame |
9216 Bytes |
| SOFTWARE FEATURES |
| Quality of Service |
Support 802.1p CoS/DSCP priority |
| Support 8 priority queues |
| Queue scheduling: SP, WRR, SP+WRR |
| Port/Flow- based Rate Limiting |
| Voice VLAN |
| VLAN |
Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
| Access Control List |
L2~L4 package filtering based on source and destination |
| MAC address, IP address, TCP/UDP ports, 802.1p, |
| DSCP, protocol and VLAN ID |
| Time Range Based |
| Security |
SSH v1/v2 |
| SSL v2/v3/TLSv1 |
| Port Security |
| Broadcast/Multicast/Unknown unicast Storm Control |
| 802.1x and Radius Authentication、IP-Mac-Port-VID Binding、ARP Inspection、DHCP Snooping、DoS Defend |
| L2 Switching Features |
IGMP Snooping V1/V2/V3 |
| 802.3ad LACP (Up to 6 aggregation groups, |
| containing 4 ports per group) |
| Spanning Tree STP/RSTP/MSTP |
| BPDU Filtering/Guard |
| TC/Root Protect |
| Loop back detection |
| 802.3x Flow Control |
| LLDP(LLDP-MED) |
| Management |
Web-based GUI and CLI management |
| SNMP v1/v2c/v3, compatible with public MIBs and |
| TP-LINK private MIBs |
| RMON (1, 2, 3, 9 groups) |
| CPU Monitoring |
| Port Mirroring |
| Time Setting: SNTP |
| Firmware Upgrade: TFTP & Web |
| System Diagnose: VCT |
| SYSLOG & Public MIBS |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Contents |

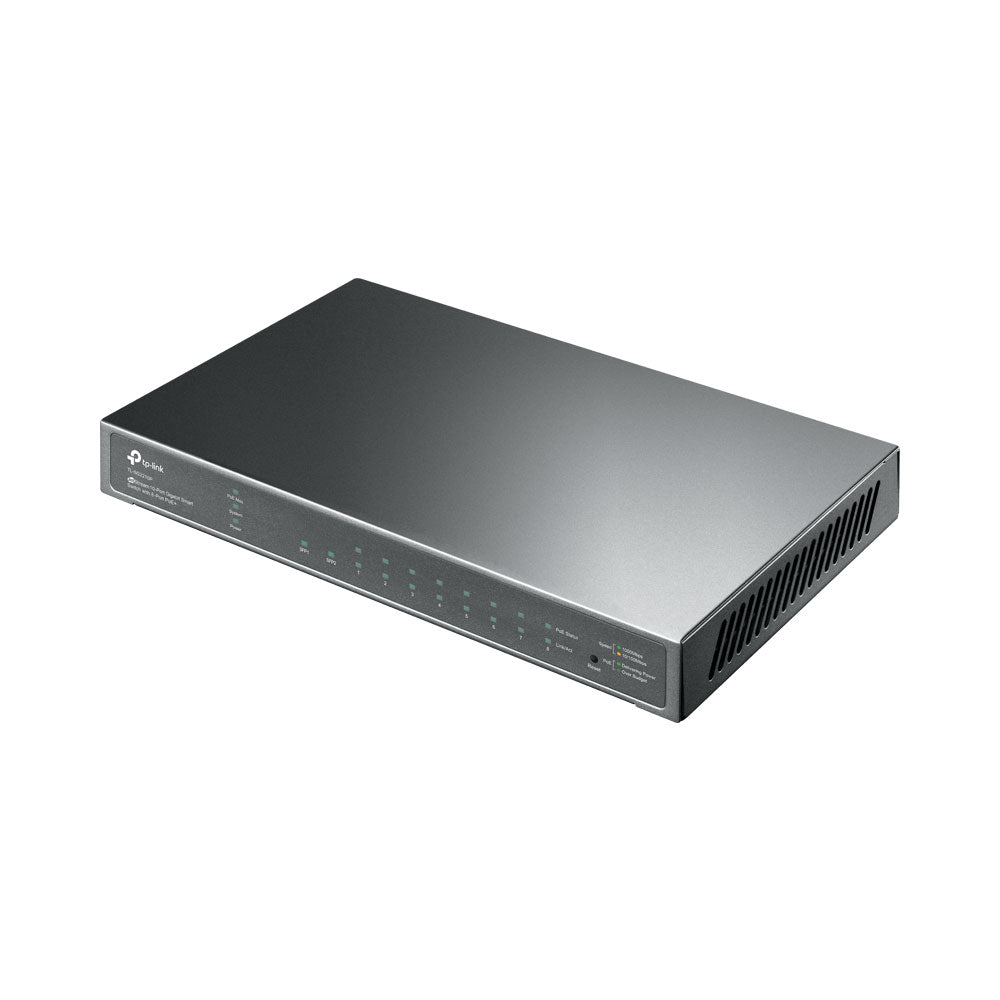

TL-SG2210P |
| Power Adapter |
| Installation Guide |
| Resource CD |
| Rubber Feet |
| System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉); |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) |
| Operating Humidity: 10%~90% non-condensing |
| Storage Humidity: 5%~90% non-condensing |
