| WIRELESS |
| Working Modes |
Range Extender/Access Point |
| HARDWARE FEATURES |
| Ports |
1× Gigabit Ethernet Port |
| Button |
WPS Button, Reset Button |
| Input Power |
100-240V~50/60Hz |
| Power Consumption |
23W |
| Dimensions (W × D × H) |
106.6 × 39.7 × 348.2mm |
| Antenna |
4× External Antennas |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11ax 6.0GHz, IEEE 802.11a/n/ac/ax 5.0GHz, IEEE 802.11b/g/n/ax 2.4GHz |
| Frequency |
2.4GHz, 5.0GHz and 6.0GHz |
| Signal Rate |
574Mbps at 2.4GHz, 2402Mbps at 5.0GHz and 2402Mbps at 6.0GHz |
| Working Modes |
Range Extender/Access Point |
| Reception Sensitivity |
6.0GHz: |
| 11ax HE20 MCS0:-92dBm, 11ax HE20 MCS11:-61dBm |
| 11ax HE40 MCS0:-89dBm, 11ax HE40 MCS11:-58dBm |
| 11ax HE80 MCS0:-86dBm, 11ax HE80 MCS11:-55dBm |
| 11ax HE160 MCS0:-83dBm, 11ax HE160 MCS11:-52dBm |
| 5.0GHz: |
| 11ax HE20 MCS0:-93dBm, 11ax HE20 MCS11:-62dBm |
| 11ax HE40 MCS0:-90dBm, 11ax HE40 MCS11:-59dBm |
| 11ax HE80 MCS0:-87dBm, 11ax HE80 MCS11:-56dBm |
| 11ax HE160 MCS0:-84dBm, 11ax HE160 MCS11:-53dBm |
| 2.4GHz: |
| 11ax HE20 MCS0:-95dBm, 11ax HE20 MCS11:-64dBm |
| 11ax HE40 MCS0:-92dBm, 11ax HE40 MCS11:-62dBm |
| Wireless Functions |
LED Control, Access Control, Power Schedule, Wi-Fi Coverage |
| Wireless Security |
64/128-bit WEP, WPA/WPA-PSK2 encryptions, WPA3 |
| Transmission Power |
FCC: 2.4GHz < 30dBm, 5.0GHz < 30dBm, 6.0GHz < 30dBm |
| Mesh Technology |
EasyMesh Compatible |
| OTHERS |
| Certification |
FCC, RoHS |
| Package Contents |

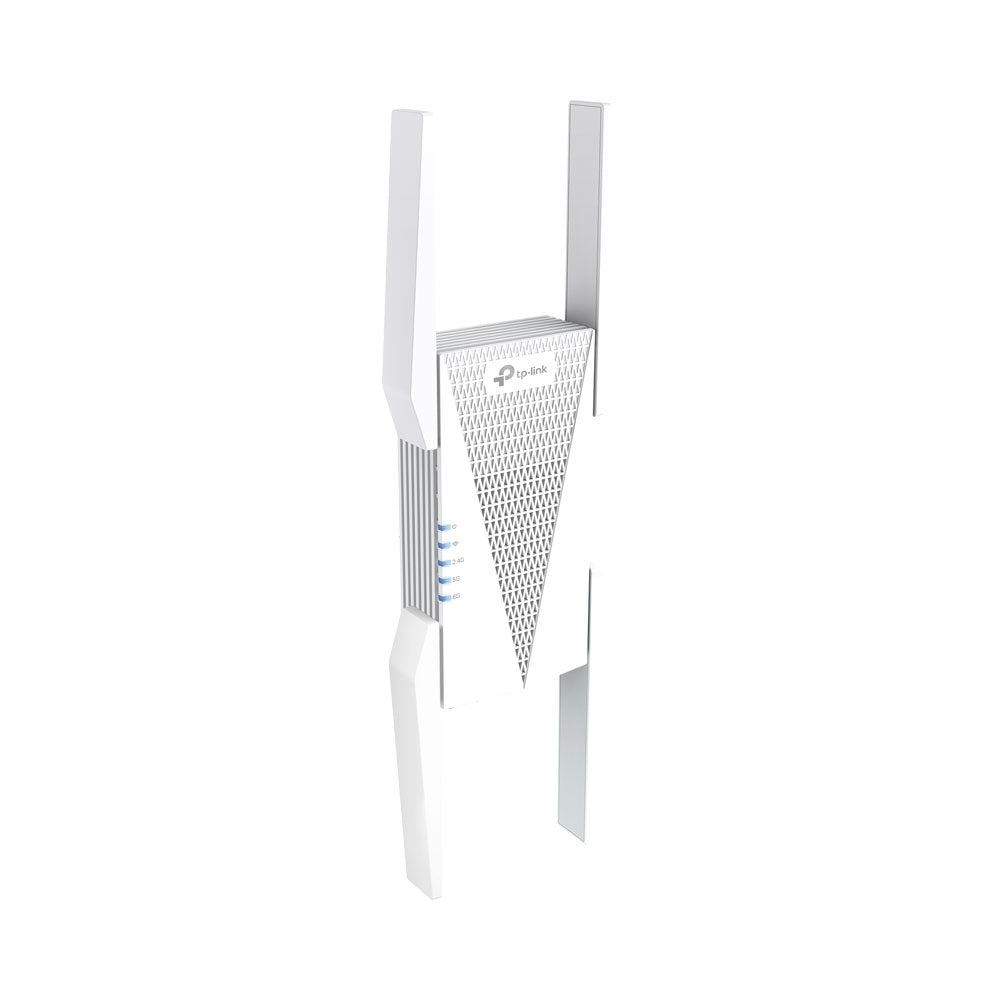

Wi-Fi Range Extender RE815XE |
| Quick Installation Guide |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux |
| Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Environment |
Operating Temperature: 0°C~40°C |
| Storage Temperature: -40°C~70°C |
| Operating Humidity: 10%~90% non-condensing |
| Storage Humidity: 5%~90% non-condensing |
