| HARDWARE FEATURES |
| Interface |
24× 10/100/1000Mbps PoE+ RJ45 Ports |
| 4× 10G SFP+ Slots |
| 2× USB2.0 Ports |
| 1× RJ45 Console Port |
| 1× USB Type-C Console Port |
| 1× RJ45 Management Port |
| Fan Quantity |
Four Field-replaceable and Hot-swappable Fans |
| Power Supply |
Two Field-replaceable and Hot-swappable Power Supply Modules (100-240 VAC 50/60Hz) |
| Shipping with one PSM500-AC module by default and another field-replaceable redundant power supply requires purchasing separately |
| PoE Ports (RJ45) |
Standard: 802.3at/af compliant |
| PoE+ Ports: 24-Ports, up to 30W per port |
| PoE Power Budget: up to 720W |
| The total PoE budget varies with the power supply modules |
| Dimensions (W × D × H) |
440 × 420 × 44mm |
| Mounting |
Rackmountable |
| Max. Power Consumption |
42.9W (110V 60Hz) (With no PD connected) |
| 916.6W (110V 60 Hz) (With 720W PD connected and powered by 2× PSM500-AC) |
| Max. Heat Dissipation |
146.29 BTU/hr (110V 60Hz) (With no PD connected) |
| 3,125.61 BTU/hr (110V 60 Hz) (With 720W PD connected and powered by 2× PSM500-AC) |
| PERFORMANCE |
| Switching Capacity |
128Gbps per Unit |
| Stacking |
Stacking Number: 4 |
| Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports) |
| Stack Bandwidth: 20Gbps per Port (Full-Duplex) |
| Packet Forwarding Rate |
95.2Mpps |
| MAC Address Table |
32K |
| Packet Buffer Memory |
3MB |
| Jumbo Frame |
9KB |
| SOFTWARE FEATURES |
| Quality of Service |
Class of Service |
| - 8× Queues of Priority |
| - Port Priority |
| - IEEE 802.1p Priority |
| - DSCP Priority |
| - Queue Min. Bandwidth |
| - Schedule Mode (SP, WRR, SP+WRR) |
| Bandwidth Control |
| - Rate Limit |
| - Storm Control |
| Voice VLAN |
| User-Defined OUI |
| Smoother Performance |
| Action for Flows |
| - QoS remark (802.1P Remark, DSCP Remark) |
| L3 Features |
IP Interfaces |
| - IPv4: Max 256, IPv6: Max. 256 |
| Static Routing |
| - Max. 1,024, IPv6: Max. 512 |
| Host Route Table: Max. 6,100 entries |
| RIP: Version v1/v2, Max. 8,190 |
| OSPF: Version v2/v3; v2: Max. 8,190, v3: Max. 4,097 |
| VRRP: Version v2/v3, Max. 64 groups |
| ECMP: 256 entries, Max. 32 ECMP Nexthops per Destination |
| Static ARP: 512 static entries |
| Dynamic ARP: 7,680 dynamic entries |
| Proxy ARP |
| DHCP Server |
| - Max. 8K IP Pools |
| - Max. 1,000 Manual Binding Entries |
| DHCP Relay |
| - Relayed Interface |
| - Relayed VLAN |
| L2 and L2+ Features |
Link Aggregation |
| Spanning Tree Protocol |
| Port-based and VLAN-based Loopback Detection |
| 802.3x Flow Control |
| Supports 2,048 IGMP groups |
| ERPS |
| Mirroring |
| RSPAN |
| MAC Address Table |
| PIM-DM (IPv4) |
| Multicast |
| - IGMP Snooping |
| - MLD Snooping |
| - L2 Multicast Table |
| - Fast Leave |
| - Multicast VLAN Registration (MVR) |
| - Static Multicast IP |
| - Multicast Filtering |
| Advanced Features |
Automatic Device Discovery |
| Batch Configuration |
| Batch Firmware Upgrading |
| Intelligent Network Monitoring |
| Abnormal Event Warnings |
| Unified Configuration |
| Reboot Schedule |
| ISP Features |
| 802.3ah Ethernet Link OAM |
| L2PT (Layer 2 Protocol Tunneling) |
| Device Link Detect Protocol (DLDP) |
| DDM |
| sFlow |
| VLAN |
Max. 4K VLAN Group (802.1q VLAN) |
| 802.1Q Tagged VLAN |
| MAC VLAN Entries: 200 |
| Multicast VLAN |
| Management VLAN |
| VLAN VPN (QinQ): Max. 256 entries |
| GVRP |
| Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries |
| VLAN VPN |
| Voice VLAN |
| Private VLAN |
| Security |
Port Isolation |
| CPU-Defend |
| ARP Inspection (Dynamic ARP Inspection) |
| DoS Defend |
| IP-MAC-Port Binding |
| -1,024 Entries |
| - DHCP Snooping |
| - ARP Inspection |
| - IPv4 Source Guard |
| IPv6-MAC |
| -Port Binding |
| -1,024 Entries |
| - DHCPv6 Snooping |
| - ND Detection |
| - ND Snooping |
| - IPv6 Source Guard |
| DHCP Filter |
| Static/Dynamic Port Security |
| - Up to 64 MAC addresses per port |
| Broadcast/Multicast/Unknown-unicast Storm Control |
| - kbps/ratio control mode |
| 802.1X |
| - Port base authentication |
| - Mac base authentication |
| - VLAN Assignment |
| - MAB |
| - Guest VLAN |
| - RADIUS authentication and accountability support |
| AAA (including TACACS+) |
| Secure web management through HTTPS with SSLv3/TLS 1.2 |
| Secure Command Line Interface (CLI) management with SSHv2 |
| IP/Port/MAC-based access control |
| MANAGEMENT |
| Omada App |
Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller or Omada Software Controller. |
| Centralized Management |
Omada Cloud-Based Controller |
| Omada Hardware Controller |
| Omada Software Controller |
| Cloud Access |
Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller or Omada Software Controller. |
| Zero-Touch Provisioning |
Yes. Requiring the use of the Omada Cloud-Based Controller. |
| Management Features |
Web-based GUI |
| Command Line Interface (CLI) through console port, telnet |
| SNMPv1/v2c/v3 |
| - Trap/Inform |
| - RMON (1, 2, 3, 9 groups) |
| SDM Template |
| DHCP/BOOTP Client |
| 802.1ab LLDP/LLDP-MED |
| DHCP Auto Install |
| Dual Image, Dual Configuration |
| CPU Monitoring |
| Cable Diagnostics |
| Password Recovery |
| SNTP |
| System Log |
| EEE |
| OTHERS |
| Package Contents |

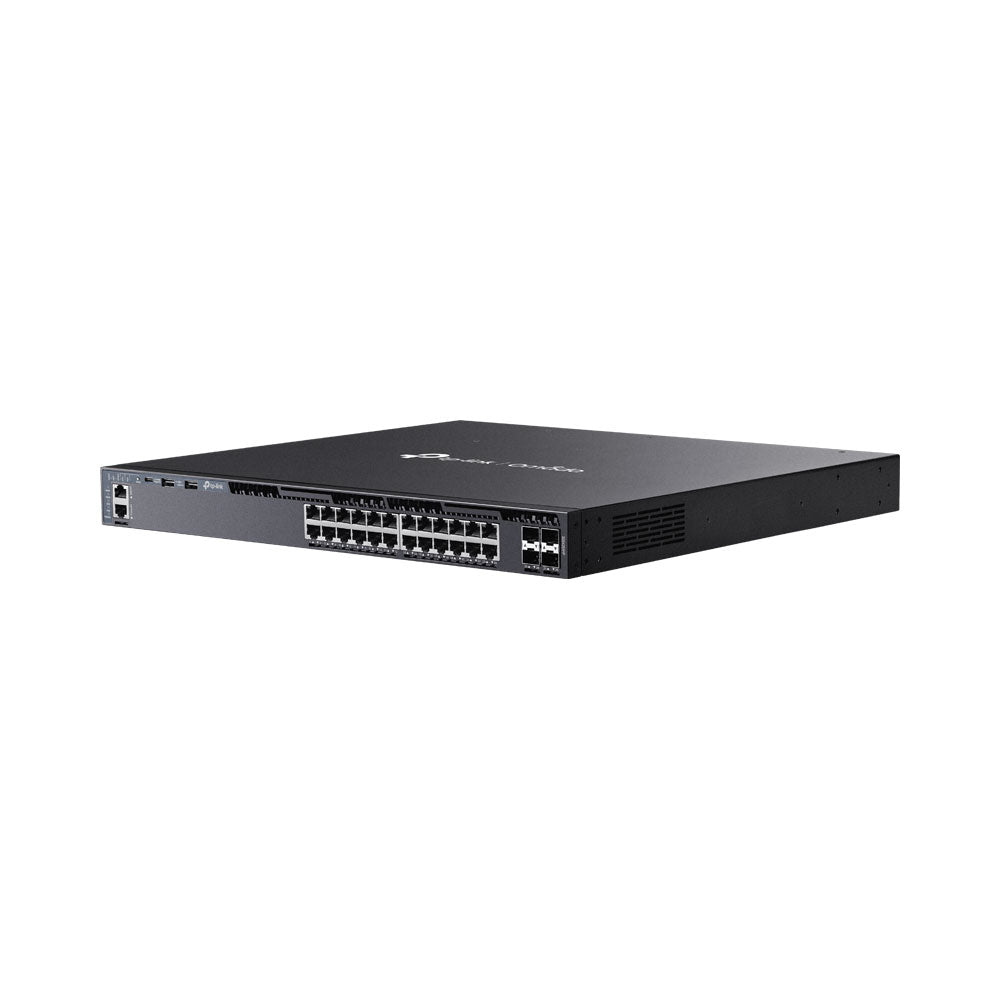

SG6428XHP Switch |
| Power Cord |
| RJ45 Console Cable |
| Quick Installation Guide |
| Rackmount Kit |
| Rubber Feet |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux |
| Environment |
Operating Temperature: 0~45°C |
| Storage Temperature: -40~70°C |
| Operating Humidity: 10–90% RH non-condensing |
| Storage Humidity: 5–90% RH non-condensing |
