| HARDWARE FEATURES |
|
| Interface |
Uplink: 10/100/1000 Mbps Ethernet Port*1 |
| |
Downlink: 10/100/1000 Mbps Ethernet Port*3 (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13W.) |
| Physical Security Lock |
Yes |
| Button |
Reset |
| Power Supply |
802.3af/802.3at PoE |
| Power Consumption |
9.8 watts /24.4 watts (PoE Out Included) |
| Dimensions |
143 × 86 × 20mm (5.6 × 3.4 × 0.8 in) |
| Antenna |
2 Dual-Band Antennas |
| |
2.4GHz: 2*4dBi |
| |
5GHz: 2*4dBi |
| Mounting |
Wall Plate Mounting |
| WIRELESS FEATURES |
|
| Wireless Standards |
IEEE 802.11a/b/g/n/ac |
| Frequency |
2.4GHz and 5GHz |
| Signal Rate |
5GHz: Up to 867Mbps |
| |
2.4GHz: Up to 300Mbps |
| Wireless Functions |
16 SSIDs(Up to 8 SSIDs on each band) |
| |
Enable/Disable Wireless Radio |
| |
Automatic Channel Assignment |
| |
Transmit Power Control (Adjust Transmit Power on dBm) |
| |
QoS(WMM) |
| |
MU-MIMO |
| |
Band Steering |
| |
Beamforming |
| |
Load Balance |
| |
Rate Limit |
| |
Reboot Schedule |
| |
Wireless Schedule |
| |
Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
Captive Portal Authentication |
| |
Access Control |
| |
Wireless Mac Address Filtering |
| |
Wireless Isolation Between Clients |
| |
SSID to VLAN Mapping |
| |
Local LAN port based VLAN |
| |
Rogue AP Detection |
| |
802.1X Support |
| |
64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise |
| Transmission Power |
CE: |
| |
≤20 dBm (2.4 GHz, EIRP) |
| |
≤23 dBm (5 GHz, EIRP) |
| |
FCC: |
| |
≤21 dBm (2.4 GHz) |
| |
≤21 dBm (5 GHz) |
| MANAGEMENT |
|
| Omada Cloud Access |
Yes |
| Omada App |
Yes |
| Omada Cloud Controller |
Yes |
| Centralized Management |
• Omada Cloud-Based Controller |
| |
• Omada Hardware Controller (OC300) |
| |
• Omada Hardware Controller (OC200) |
| |
• Omada Software Controller |
| Omada Controller Software |
Yes |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts |
Yes |
| LED ON/OFF Control |
Yes |
| Management MAC Access Control |
Yes |
| SNMP |
v1,v2c |
| System Logging Local/Remote Syslog |
Local/Remote Syslog |
| SSH |
Yes |
| Web-based Management |
HTTP/HTTPS |
| L3 Management |
Yes |
| Multi-site Management |
Yes |
| Management VLAN |
Yes |
| OTHERS |
|
| Certification |
CE, FCC, RoHS |
| Package Contents |

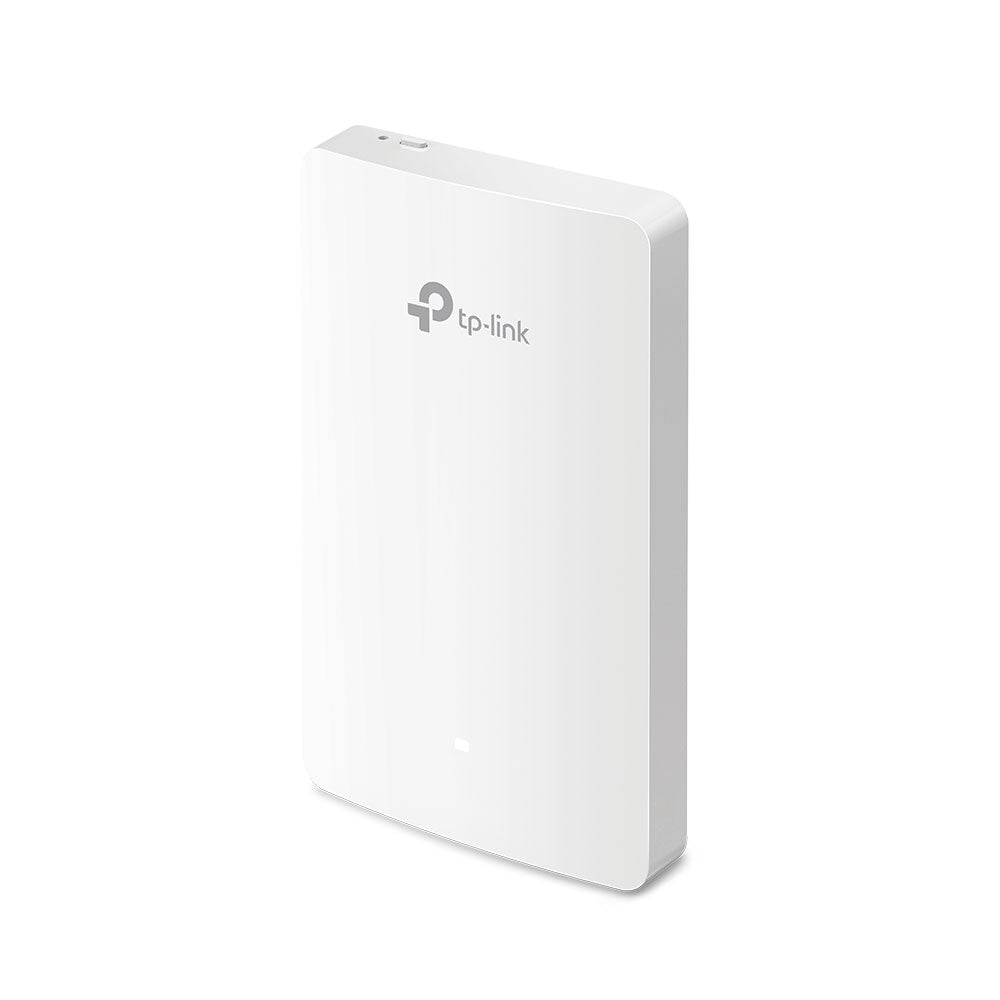

Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point |
| |
EAP235-Wall |
| |
Installation Guide |
| |
Mounting Screw |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) |
| |
Storage Temperature: -40℃~70℃ (-40℉~158℉) |
| |
Operating Humidity: 10%~90% non-condensing |
| |
Storage Humidity: 5%~90% non-condensing |
