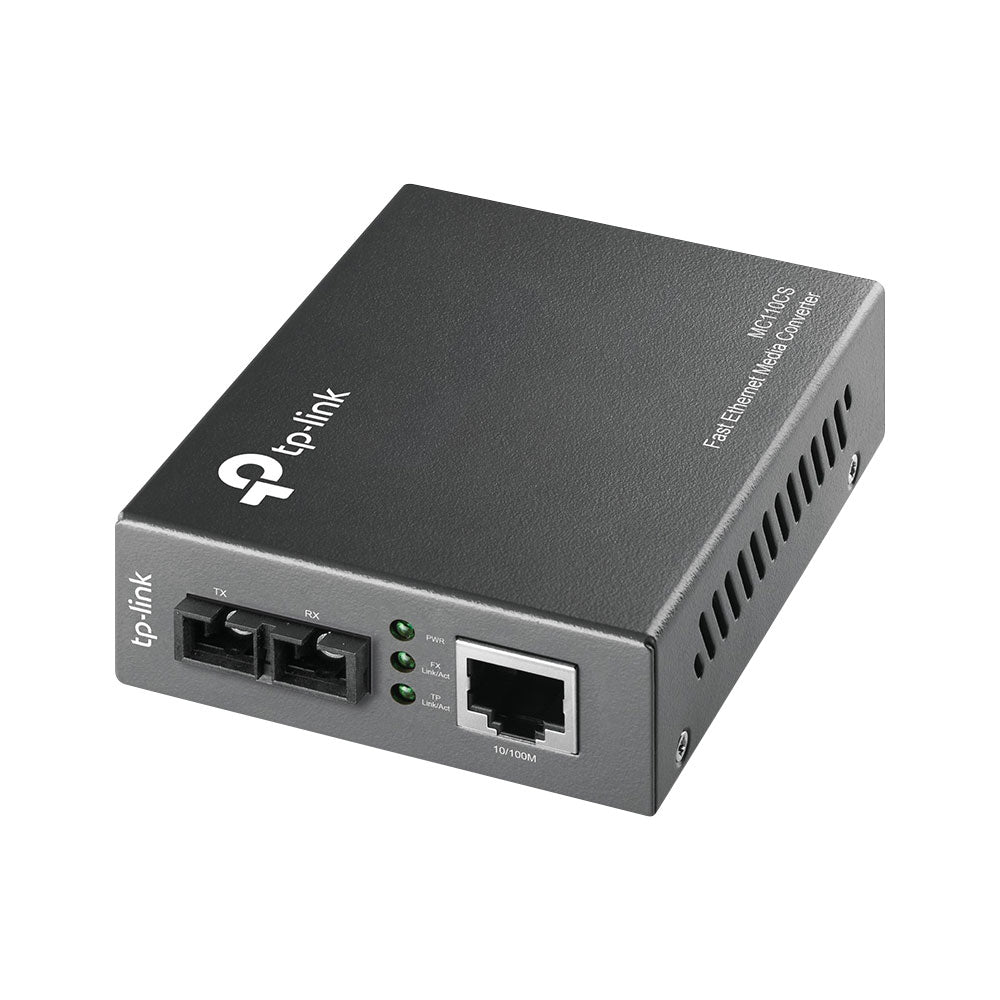

TP-Link MC110CS | 10/100Mbps Single-Mode SC Fibre Media Converter
The MC110CS is a media converter designed to convert 100BASE-FX fibre to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fibre cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s TL-MC1400 chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode. The MC110CS will transmit at extended fibre optic distances utilizing single-mode fiber up to 20km.
FEATURES:
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Extends fibre distance up to 20km
SPECIFICATIONS:
| Standards and Protocols |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Basic Function |
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode |
| Full Duplex Flow Control (IEEE 802.3x) |
| Half Duplex Flow Control (Backpressure) |
| Extends fibre distance up to 20km |
| Ports |
1× 100M SC/UPC port |
| 1× 10/100M RJ45 port (Auto MDI/MDIX) |
| Wave Length |
1310nm |
| Network Media 10BASE-T |
UTP category 3, 4, 5 cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-T |
UTP category 5, 5e cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-FX |
Single-mode Fibre |
| LED Indicators |
Power, Link/Act |
| Dimensions (W × D × H) |
94.5 × 73 × 27mm |
| Power Supply |
External power supply |
| Max. Power Consumption |
2.4W |
| Safety & Emission |
FCC, CE, RoHS |
| Package Contents |
Media Converter MC110CS |
| Power Adapter |
| Installation Guide |
| Environment |
Operating Temperature: 0°C~40°C |
| Storage Temperature: -40°C~70°C |
| Operating Humidity: 10%~90% non-condensing |
| Storage Humidity: 5%~90% non-condensing |
