| SECURITY |
| Access Control |
Source/Destination IP Based Access Control |
| Filtering |
WEB Group Filtering |
| URL Filtering |
| Web Security |
| ARP Inspection |
Sending GARP Packets |
| ARP Scanning |
| IP-MAC Binding |
| Attack Defense |
TCP/UDP/ICMP Flood Defense |
| Block TCP Scan (Stealth FIN/Xmas/Null) |
| Block Ping from WAN |
| HARDWARE FEATURES |
| Standards and Protocols |
IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q |
| TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |
| Interface |
2× 10GE SFP+ Ports (1× WAN, 1× WAN/LAN) |
| 1× 1GE SFP WAN/LAN Ports |
| 8× 1GE RJ45 WAN/LAN Ports |
| 1× RJ45 Console Ports |
| 2× USB Ports (Connecting 4G/3G Modem as WAN Backup) |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (Max. 100m) |
| EIA/TIA-568 100Ω STP (Max. 100m) |
| 100BASE-TX: UTP category 5, 5e cable (Max. 100m) |
| EIA/TIA-568 100Ω STP (Max. 100m) |
| 1000BASE-T: UTP category 5e, 6 cable (Max. 100m) |
| Fan Quantity |
2 |
| Button |
Reset Button |
| Power Supply |
Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz) |
| Flash |
4MB SPI NOR + 256 MB NAND |
| DRAM |
4GB DDR4 |
| LED |
PWR, SYS, WAN, LAN, USB, FAN |
| Dimensions (W × D × H) |
440 × 220 × 44mm |
| Protection |
4kV Surge Protection |
| Enclosure |
Steel |
| Mounting |
Rack Mountable |
| Max. Power Consumption |
26.36W (with USB3.0 connected) |
| 19.12W (without USB3.0 connected) |
| PERFORMANCE |
| WireGuard VPN |
1411Mbps |
| Concurrent Session |
2,300,000 |
| New Sessions /Second |
20,000 |
| NAT (Static IP) |
Upload: 9445.82Mbps |
| Download: 9449.26Mbps |
| NAT(DHCP) |
Upload: 9426.83Mbps |
| Download: 9426.20Mbps |
| NAT(PPPoE) |
Upload: 9413.96Mbps |
| Download: 9102.01Mbps |
| NAT (L2TP) |
Upload: 9064.66Mbps |
| Download: 8587.57Mbps |
| NAT (PPTP) |
Upload: 8712.11Mbps |
| Download: 8505.61Mbps |
| 64 Byte Packet Forwarding Rate |
Upload: 1080Mbps |
| Download: 1030Mbps |
| IPsec VPN Throughput |
ESP-SHA1-AES256: 3099.4Mbps |
| ESP-SHA256-AES256: 2928.4Mbps |
| ESP-SHA384-AES256: 2935.7Mbps |
| ESP-SHA512-AES256: 2878Mbps |
| OpenVPN |
4424.1Mbps |
| L2TP VPN Throughput |
Unencrypted: 5013.50Mbps |
| Encrypted: 2274.74Mbps |
| PPTP VPN Throughput |
Unencrypted: 10143Mbps |
| Encrypted: 952Mbps |
| SSL VPN Throughput |
4486Mbps |
| 1,518 Byte Packet forwarding rate |
Upload: 9970Mbps |
| Download: 9970Mbps |
| BASIC FUNCTIONS |
| WAN Connection Type |
Static/Dynamic IP |
| PPPoE |
| PPTP |
| L2TP |
| 6 to 4 Tunnel |
| Pass-Through |
| Mobile Broadband: 4G/3G modem for backup via USB port |
| MAC Clone |
Modify WAN/LAN MAC Address |
| DHCP |
DHCP Server/Client |
| DHCP Address Reservation |
| Multi-net DHCP |
| Multi-IP Interfaces |
| IPv6 |
WAN Connection |
| VLAN |
802.1Q VLAN |
| IPTV |
IGMP v2/v3 Proxy |
| ADVANCED FUNCTIONS |
| ACL |
IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing |
Static Routing |
| Policy Routing |
| Bandwidth Control |
IP/Port-based Bandwidth Control |
| Guarantee & Limited Bandwidth |
| Load Balance |
Intelligent Load Balance |
| Application Optimized Routing |
| Link Backup (Timing, Failover) |
| Online Detection |
| NAT |
One-to-One NAT |
| Multi-Net NAT |
| Port Forwarding |
| Port Triggering |
| NAT-DMZ |
| FTP/H.323/SIP/IPSec/PPTP ALG |
| UPnP |
| Security |
SPI Firewall |
| VPN Passthrough |
| FTP/H.323/PPTP/SIP/IPsec ALG |
| DoS Defence, Ping of Death |
| Local Management |
| Session Limit |
IP-based Session Limit |
| VPN |
| SSL VPN |
SSL VPN Server |
| SSL VPN Client |
| 500 SSL VPN Tunnels |
| IPsec VPN |
300 IPSec VPN Tunnels |
| LAN-to-LAN, Client-to-LAN |
| Main, Aggressive Negotiation Mode |
| DES, 3DES, SHA1, SHA256, SHA384, SHA512, AES128, AES192, AES256 Encryption Algorithm |
| IKE v1/v2 |
| MD5, SHA1 Authentication Algorithm |
| NAT Traversal (NAT-T) |
| Dead Peer Detection (DPD) |
| Perfect Forward Secrecy (PFS) |
| PPTP VPN |
PPTP VPN Server |
| PPTP VPN Client (32) |
| 300 Tunnels (Shared with L2TP) |
| PPTP with MPPE Encryption |
| L2TP VPN |
L2TP VPN Server |
| L2TP VPN Client (32) |
| 300 Tunnels (Shared with PPTP) |
| L2TP over IPSec |
| OpenVPN |
OpenVPN Server |
| OpenVPN Client (10) |
| 110 OpenVPN Tunnels |
| AUTHENTICATION |
| Web Authentication |
No Authentication |
| Simple Password |
| Hotspot (Local User / Voucher / SMS / Radius) |
| External Radius Sever |
| External Portal Sever |
| Instagram Follow |
| MANAGEMENT |
| Omada App |
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller. |
| Centralized Management |
Omada Hardware Controller (OC300) |
| Omada Hardware Controller (OC200) |
| Omada Software Controller |
| Omada Cloud-Based Controller |
| Cloud Access |
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller. |
| Service |
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance |
Web Management Interface |
| Remote Management |
| Export & Import Configuration |
| SNMP v1/v2c/v3 |
| Diagnostics (Ping & Traceroute) |
| NTP Synchronize |
| Syslog Support |
| Zero-Touch Provisioning |
Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features |
Automatic Device Discovery |
| Intelligent Network Monitoring |
| Abnormal Event Warnings |
| Unified Configuration |
| Reboot Schedule |
| Captive Portal Configuration |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Contents |

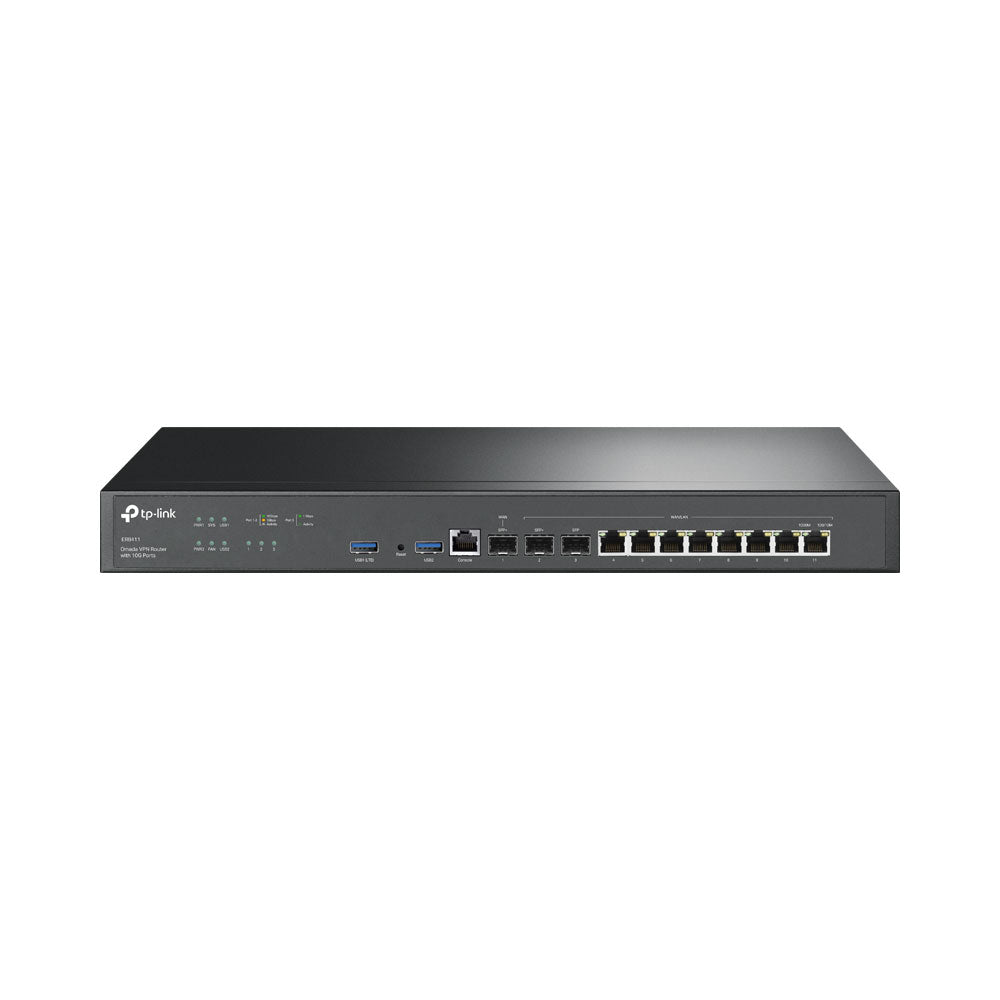

Omada 10G Multi-WAN Security Gateway ER8411 |
| Power Cord |
| Rack-Mount Kit |
| Quick Installation Guide |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux |
| Environment |
Operating Temperature: 0~40°C |
| Storage Temperature: -40~70°C |
| Operating Humidity: 10~90% RH non-condensing |
| Storage Humidity: 5~90% RH non-condensing |
