Description

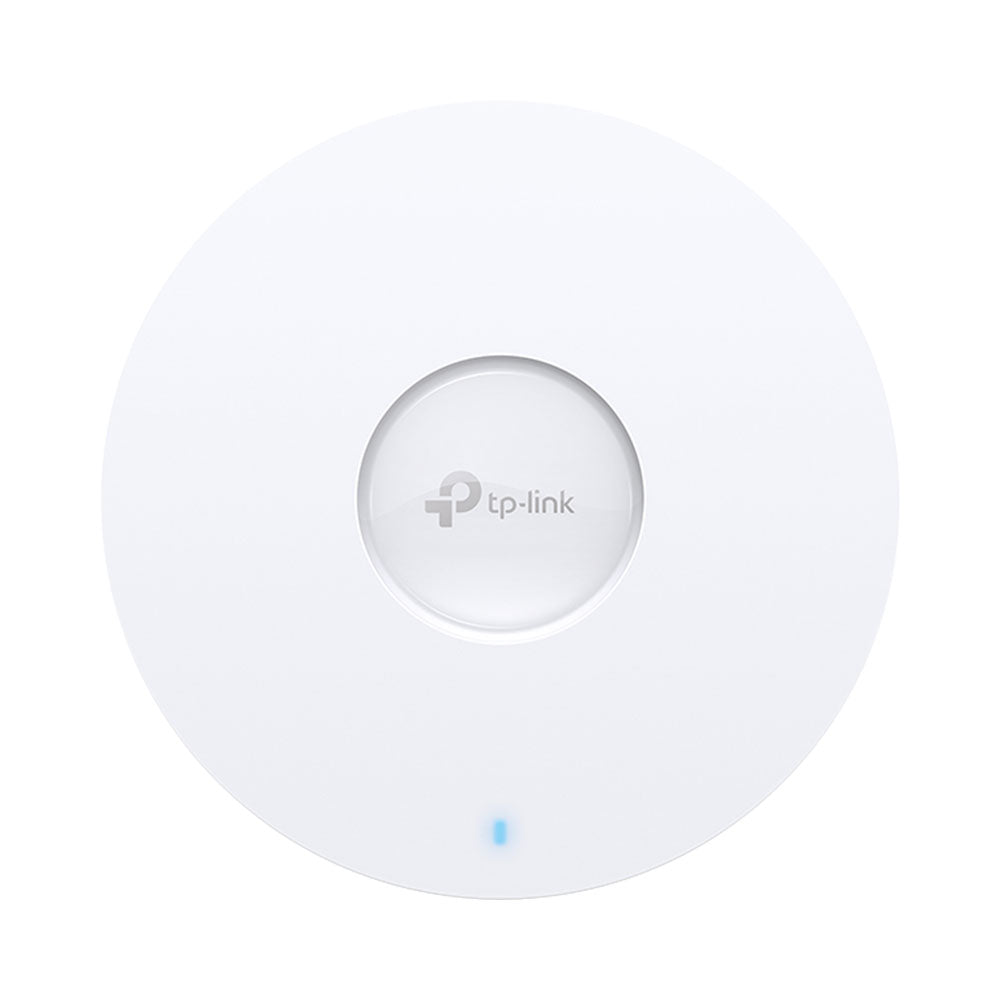

TP-Link EAP610 AX1800 Wireless Dual Band Ceiling Mount Access Point
Easily Upgrade to Business Wi-Fi 6 Network
FEATURES:
- Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds
- High-Efficiency Wi-Fi 6: More connected devices can enjoy faster speeds
- Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment
- PoE+ Powered: Supports both Power over Ethernet (802.3at) and DC power supply for flexible installations
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
SPECIFICATIONS:
| HARDWARE FEATURES | |
| Interface | 1x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) |
| Button | Reset |
| Power Supply | • 802.3at PoE |
| • 12 V / 1 A DC (Power Adapter included) | |
| Power Consumption | • EU: 12.8 W (For PoE); 10.8 W (for DC) |
| Dimensions ( W x D x H ) | 243 x 243 x 64mm |
| Antenna Type | Internal Omni |
| • 2.4 GHz: 2x 4 dBi | |
| • 5 GHz: 2x 5 dBi | |
| Mounting | Ceiling/Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 5 GHz: Up to 1201 Mbps |
| 2.4 GHz: Up to 574 Mbps | |
| Wireless Functions | • 1024-QAM |
| • 4x Longer OFDM Symbol | |
| • OFDMA | |
| • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) | |
| • Enable/Disable Wireless Radio | |
| • Automatic Channel Assignment | |
| • Transmit Power Control (Adjust Transmit Power on dBm) | |
| • QoS(WMM) | |
| • MU-MIMO | |
| • Seamless Roaming | |
| • Omada Mesh | |
| • Band Steering | |
| • Load Balance | |
| • Airtime Fairness | |
| • Beamforming | |
| • Rate Limit | |
| • Reboot Schedule | |
| • Wireless Schedule | |
| • Wireless Statistics based on SSID/AP/Client | |
| Wireless Security | • Captive Portal Authentication |
| • Access Control | |
| • Wireless Mac Address Filtering | |
| • Wireless Isolation Between Clients | |
| • SSID to VLAN Mapping | |
| • Rogue AP Detection | |
| • 802.1X Support | |
| • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
| Transmission Power | • CE: |
| <20 dBm(2.4 GHz, EIRP) | |
| <23 dBm(5 GHz, EIRP) | |
| • FCC: | |
| <25 dBm (2.4 GHz) | |
| <25 dBm (5 GHz) | |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller (Supported by EAP610 V1, V2, V2.2 and above, while is not supported by EAP610 V3) |
| • Omada Hardware Controller OC300 | |
| • Omada Hardware Controller OC200 | |
| • Omada Software Controller | |
| Cloud Access | Yes, through |
| • OC300 | |
| • OC200 | |
| • Omada Software Controller | |
| • Omada Cloud-Based Controller (Supported by EAP610 V1, V2, V2.2 and above, while is not supported by EAP610 V3) | |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP610 V1, V2, V2.2 and above, while is not supported by EAP610 V3) |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • EAP610 |
| • Power Adapter | |
| • Ceiling/Wall Mounting Kits | |
| • Installation Guide |
