| SYSTEM |
| System Requirements |
Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux |
| Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Cable or DSL Modem |
| Subscription with an internet service provider (for internet access) |
| ENVIRONMENT |
| Operating Temperature |
0°C~40°C |
| Storage Temperature |
-40°C~70°C |
| Operating Humidity |
10%~90% non-condensing |
| Storage Humidity |
5%~90% non-condensing |
| PACKAGE CONTENTS |
| Package Contents |

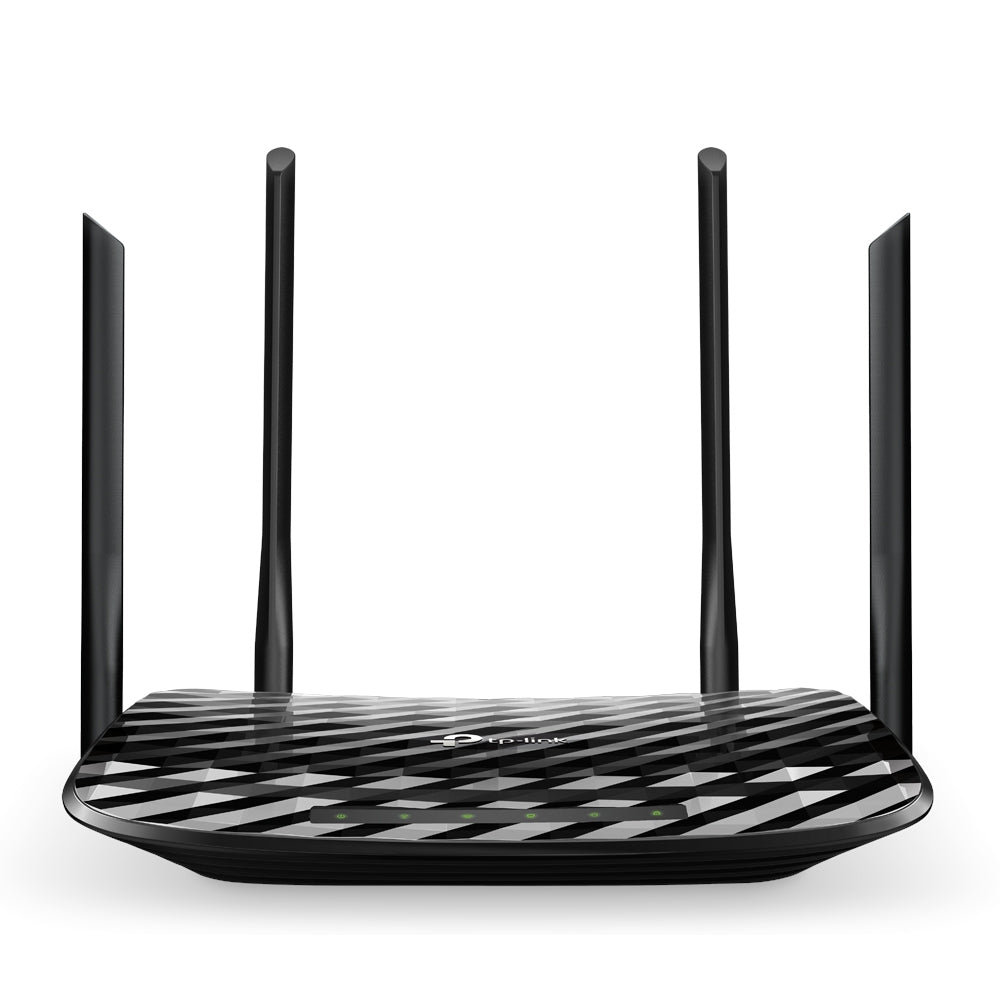

Wireless Router Archer A6 |
| Power Adapter |
| RJ45 Ethernet Cable |
| Quick Installation Guide |
| HARDWARE FEATURES |
| Ports |
4*10/100/1000Mbps LAN Ports, 1*10/100/1000Mbps WAN Port |
| Button |
Reset Button, Power On/Off Button, WPS/Wi-Fi On/Off Button |
| Power Supply |
12V/1A |
| Dimensions ( W x D x H ) |
9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm) |
| Antenna |
4 Fixed External Antennas and 1 Internal Antenna |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency |
2.4GHz and 5GHz |
| Signal Rate |
5GHz: Up to 867Mbps |
| 2.4GHz: Up to 300Mbps |
| Reception Sensitivity |
5GHz: |
| 11a 6Mbps:-93dBm;11a 54Mbps:-78dBm; |
| 11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm; |
| 11ac HT80 mcs9:-62dBm; |
| 2.4GHz: |
| 11g 54Mbps:-78dBm; |
| 11n HT20 mcs7:-74dBm; |
| 11n HT40 mcs7:-71dbm; |
| Transmit Power |
CE EIRP: <20dBm(2.4GHz); <23dBm(5GHz) |
| FCC EIRP: <30dBm(2.4GHz); <30dBm(5GHz) |
| Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM, |
| Wireless Statistics |
| Wireless Security |
64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption |
| SOFTWARE FEATURES |
| WAN Type |
Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual |
| Access), BigPond |
| Management |
Access Control, Local Management, Remote Management |
| DHCP |
Server, DHCP Client List, Address Reservation |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, NO-IP |
| Access Control |
Parental Controls, Local Management Control, Host List, White List, Black List |
| Firewall Security |
DoS, SPI Firewall, IP and MAC Address Binding |
| Protocols |
IPv4, IPv6 |
| Guest Network |
2.4GHz guest network, 5GHz guest network |
| VPN Server |
OpenVPN,PPTP VPN |
