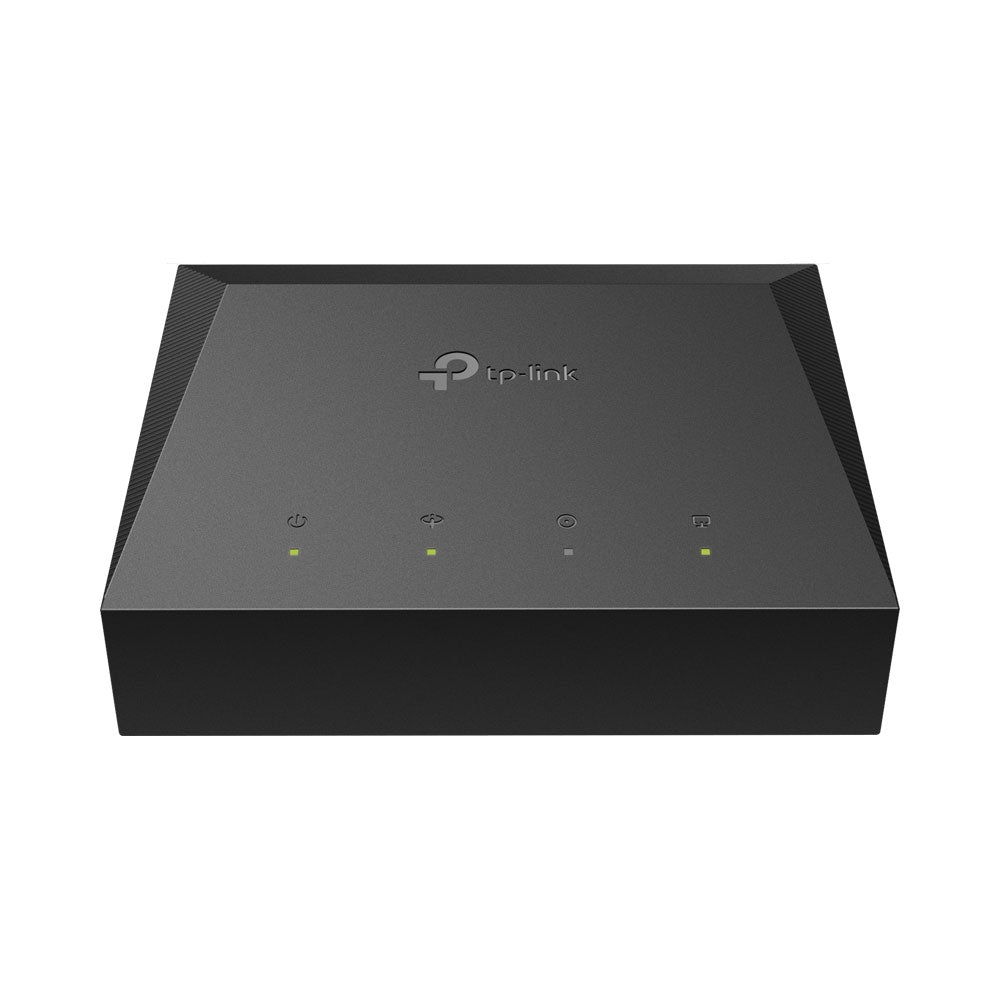

TP-Link Aginet XZ000-G3 | 1-Port Gigabit GPON ISP Terminal
Ideal and Preconfigured for ISPs
High-Speed GPON Service - Compliant with the ITU-T G.984 GPON standards
TP-Link‘s 1-Port Gigabit GPON Terminal XZ000-G3 provides up to 2.488Gbps of uplink and 1.244 Gbps of downlink bandwidth simultaneously. It meets the higher bandwidth demand of various high-bandwidth services. It also reduces both capital and operating expenditure, protecting ISPs' existing infrastructure investments.
FEATURES:
- Quality of Service - Quality of Service control for transaction prioritization and bandwidth management
- Durability-Intelligent power-saving method
- Easy Remote Management - TR-069 protocol enables an operator to remotely configure and manage end-user devices
- Full Gigabit Port-Fibre access and gigabit port provide incredibly fast transfer speeds
SPECIFICATIONS:
| HARDWARE FEATURES |
| Interface |
1× 10/100/1000Mbps RJ45 Port, 1 SC/APC Port |
| Button |
1× RESET Button |
| External Power Supply |
9VDC / 0.6A |
| IEEE Standards |
IEEE 802.3, 802.3u, 802.1p, 802.1Q |
| Data Rates |
Upstream: 1.244Gbps, Downstream: 2.488Gbps |
| Dimensions ( W × D × H ) |
95.0 × 75.0 × 29.3mm |
| Distance |
0 ~ 20km Max. |
| GPON Standards |
ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4 |
| Optical Module |
Class B+ |
| Receiver |
Super-TIA |
| Transmitter |
DFB Laser |
| Wavelength |
Upstream: 1310nm, Downstream: 1490nm |
| SOFTWARE FEATURES |
| VLAN |
802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode, Authentication based on SN and Password, VLAN Auto Detect |
| Security |
AES Encryption, Packet Filter based on VLAN |
| Management |
Managed by Web, OMCI and Telnet, Specifed the management IP, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic |
| Advanced Features |
Upstream and Downstream FEC, Dynamic Bandwidth Allocation(DBA) support NSR/SR, Up to 16 T-CONTs and 256 GEM Ports, Optical power detection, Dying Gasp, Terminal Silent mechanism |
| IGMP |
IGMP v1/v2/v3 |
| OTHERS |
| Certifications |
CE, FCC, ROHS |
| Package Contents |
XZ000-G3, RJ45 Ethernet Cable, Quick Installation Guide, Power Adapter |
| System Requirements |
Microsoft Windows 8/7/Vista/XP, MAC OS, NetWare, UNIX or Linux |
| Environment |
Operating Temperature: 0°C~40°C; Storage Temperature: -40°C~70°C; Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
