| HARDWARE FEATURES |
| Interface |
1× 10/100/1000 Mbps Ethernet Port |
| (Supports Passive PoE) |
| Button |
Power On/Off Button, WPS Button, Reset Button |
| External Power Supply |
12V/1.5A |
| Wireless Standards |
IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz |
| Dimensions ( W x D x H ) |
225×145.5×37 in (400×255×72 mm) |
| Antenna Type |
4 Fixed High Performance Antennas |
| WIRELESS FEATURES |
| Frequency |
2.4 GHz and 5 GHz |
| Signal Rate |
867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz |
| Reception Sensitivity |
5 GHz: |
| 11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm |
| 11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm |
| 11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm |
| 11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm |
| |
| 2.4 GHz: |
| 11g 54Mbps: -78 dBm |
| 11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm |
| 11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm |
| Transmit Power |
CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz) |
| FCC: <30dBm(2.4GHz&5GHz) |
| Wireless Modes |
Access Point, Range Extender, Client, Multi-SSID |
| Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions |
| DHCP |
Server, DHCP Client List |
| Quality of Service |
WMM |
| Advanced Functions |
Captive Portal |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Contents |

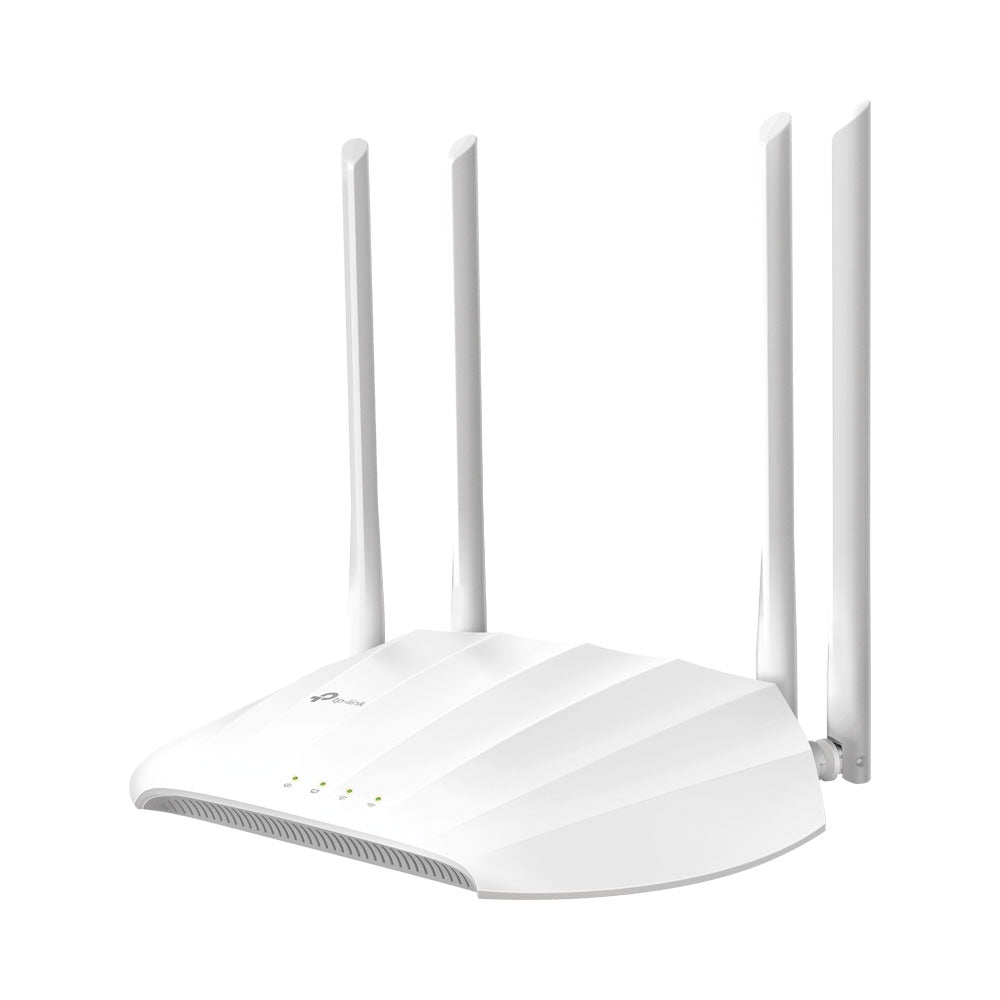

Wireless Access Point TL-WA1201 |
| Power Adapter |
| RJ45 Ethernet Cable |
| Quick Installation Guide |
| PoE Power Injector |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, |
| 10, MAC OS, NetWare, UNIX or Linux |
| Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other |
| Java-enabled browser |
| Environment |
Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F) |
| Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) |
| Operating Humidity: 10%~90% non-condensing |
| Storage Humidity: 5%~90% non-condensing |
| Protocol Support |
IPv4, IPv6 |
