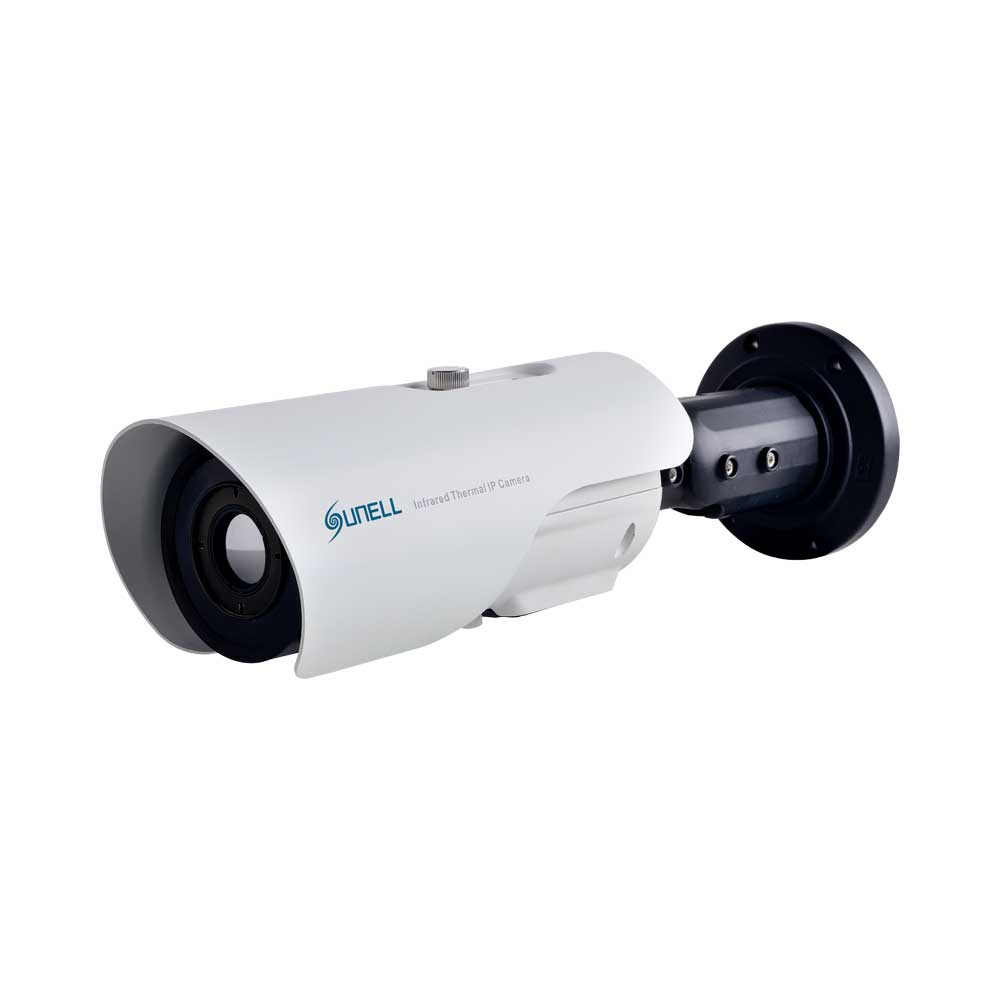

| Thermal Camera |
| Detector Type |
Uncooled IRFPA Microbolometer |
| Effective Pixels |
400(H) ×300(V) |
| Pixel Size |
17um |
| Thermal Sensitivity (NETD) |
40mK @F1.0, 300K |
| Spectral Range |
8~14um |
| Image Setting |
Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Contrast/ ROI |
| Color Palettes |
Black-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes |
| Pan/Tilt/ |
Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360 |
| Rotation Range |
| Thermal Lens |
| Lens Type |
Fixed |
| Focus Control |
Manual Focus |
| Focal Length |
8mm |
| F No. |
F1.0 |
| Angle of View |
H: 46° |
| V:35.3° |
| Detection Distance Fire(1m*1m) |
235m |
| Detection Distance Man(1.8m*0.5m) |
235m |
| Detection Distance Vehicle(4m*1.5m) |
722m |
| Recognition Distance Fire(1m*1m) |
78m |
| Recognition Distance Man(1.8m*0.5m) |
59m |
| Recognition Distance Vehicle(4m*1.5m) |
180m |
| Video and Audio |
| Compression |
H.265, H.264, MJPEG |
| Frame Rate |
Main Stream: D1 @25/30fps |
| Sub Stream: CIF @25/30fps |
| Bit Rate Control |
CBR/VBR |
| Bit Rate |
100Kbps~6Mbps |
| Region of Interest |
Off / On (8 Zone, Rectangle) |
| Electronic Image Stabilization(EIS) |
N/A |
| Digital Zoom |
16x |
| Mirror |
Support |
| Defog |
Support |
| Motion Detection |
Support |
| Privacy Masking |
Off / On (5 Area, Rectangle) |
| DVE Image Enhance |
Support |
| Audio Compression |
G.711, AMR, RAW_PCM (Optional) |
| Intelligence |
| Intelligent Functions |
Motion detection, Disk alarm, I/O alarm, Temperature alarm |
| IVS |
Perimeter, Single Virtual Fences, Double Virtual Fences, Object Left, Object Removed |
| Temperature Detection |
| Detection Mode |
Spot, Line, Area |
| Detection Preset |
Support 3 temperature measurement rule types, |
| 20 rules (20 points / 2 lines / 16 regions ) |
| Temperature Alarm |
Over temperature alarm, Temperature difference alarm |
| Accuracy |
±2℃ / ±2% |
| Response Time |
≤30ms |
| Effective temperature working environment |
-40 °C ~ 60 °C (-40°F ~ 140 °F) |
| Theory of temperature measurement range |
-40 °C ~ 150 °C (-40°F ~ 302 °F) |
| Temperature display mode |
Temperature target >5℃, Display absolute temperature value, |
| Temperature target ≤5℃, Display relative temperature value (temperature difference DEV = highest value - average) |
| NETWORK |
| Ethernet |
RJ-45 (10/100Base-T) |
| Protocols: |
IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, SIP ,802.1x |
| Interoperability |
ONVIF, CGI |
| Streaming Method |
Unicast |
| Max. User Access |
10 Users |
| Edge Storage |
NAS |
| Local PC for instant recording |
| Micro SD card 128GB |
| Web Viewer |
<IE11, Chrome, Firefox |
| Web Language |
English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian |
| INTERFACE |
| Ethernet |
1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Audio Interface |
1ch Audio In,1ch Audio Out |
| Alarm |
2ch Alarm In,2ch Alarm Out |
| RS485 |
Support |
| BNC Output |
Support |
| Reset Button |
Support |
| GENERAL |
| Power Supply |
DC12V/POE |
| Power Consumption |
Max 5W |
| Operating Temperature |
-40 °C ~ 60 °C (-40°F ~ 140 °F) |
| Storage Conditions |
0~ 90% RH |
| Certifications |
CE /FCC |
| Ingress Protection |
IP66 |
| Casing |
Metal |
| Dimensions |
φ110×388mm |
| Net Weight |
1900g |
