Description

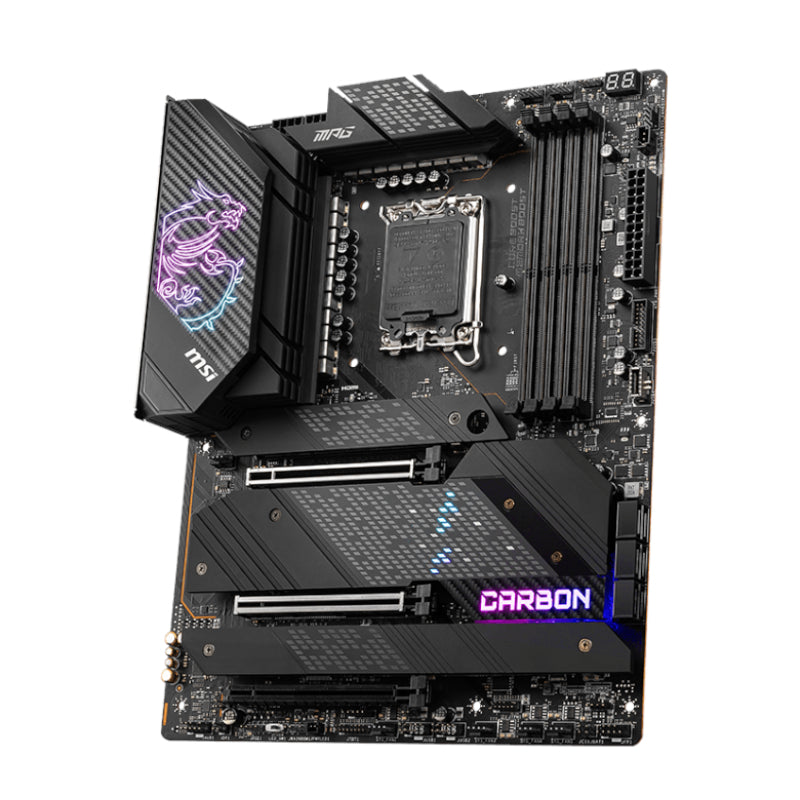

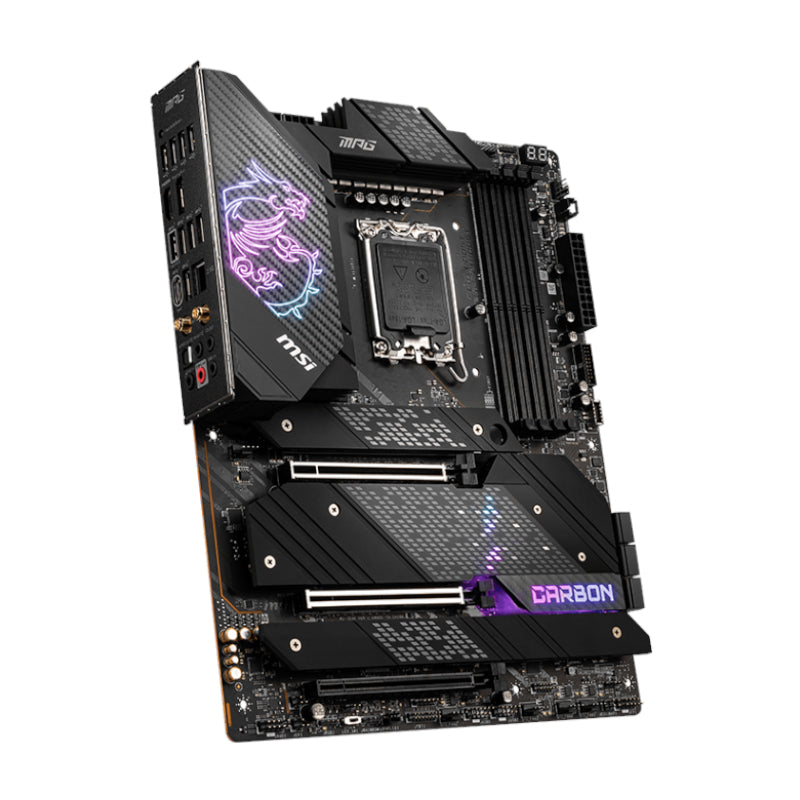

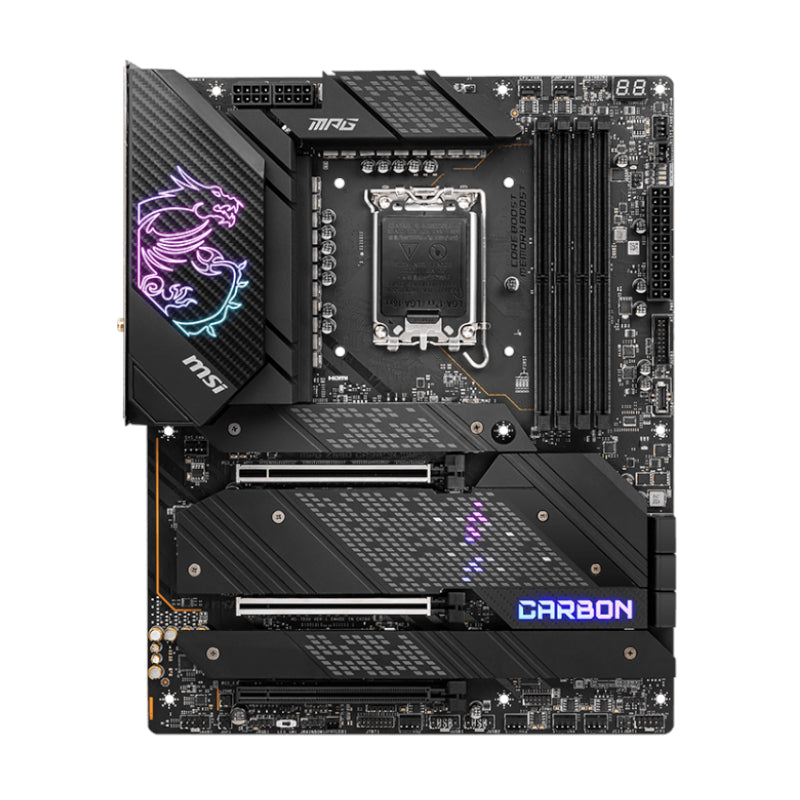

The MPG series brings out the best in gamers by allowing full expression in colour with advanced RGB lighting control and synchronization. With the MPG series, transform your equipment into the centre of attention and top leaderboards in style. With years of experience, MSI is no stranger to building high-performance motherboards.
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run at full speed with MSI motherboards. High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with a dedicated SMT welding process and MSI Memory Boost technology, MSI MPG Z690 Carbon Wi-Fi is ready to deliver world-class memory performance. MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immersive one.
FEATURES:
- Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 6666+(OC) MHz
- Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Enhanced Power Design: Direct 18+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high-performance system and non-stop gaming experience
- MYSTIC LIGHT: 16.8 million colours / fancy lighting effects controlled in one click.
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High-Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade-level material

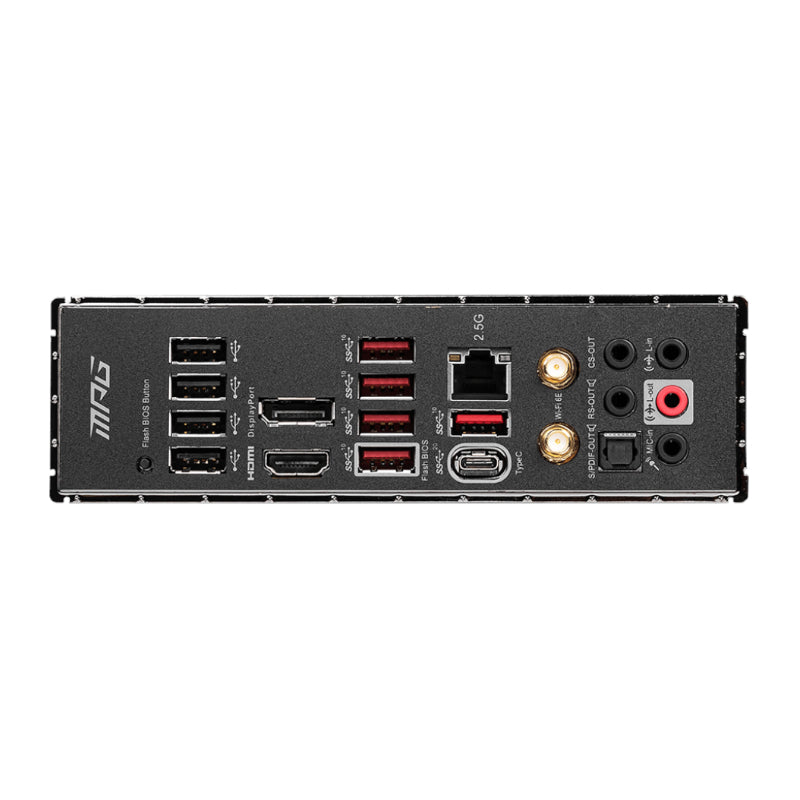

- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
SPECIFICATIONS:
- Socket: 1700
- CPU (Max Support): i9
- Chipset: Intel® Z690 Chipset
- DDR5 Memory: 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz
- Memory Channel: Dual
- DIMM Slots: 4
- Max Memory (GB): 128
- PCI-E x16: 3
- SATAIII: 6
- M.2 Slot: 5
- RAID: 0/1/5/10
- LAN: 1x Intel® I225V 2.5Gbps LAN controller
- WiFi and Bluetooth: Intel® Wi-Fi 6E module
- USB 3.2 ports (Front): 1(Gen 2, Type C), 2(Gen 1, Type A)
- USB 3.2 ports (Rear): 1(Gen 2x2, Type C), 5(Gen 2, Type A)
- USB 2.0 ports (Front): 4
- USB 2.0 ports (Rear): 4
- Audio ports (Rear): 5+ Optical S/PDIF (Realtek® ALC4080 Codec)
- DisplayPort: 1
- HDMI: 1
- DirectX: 12
- Form Factor: ATX
- Crossfire: Yes
- Operating System: Support for Windows® 10 64-bit
WHAT’S IN THE BOX:

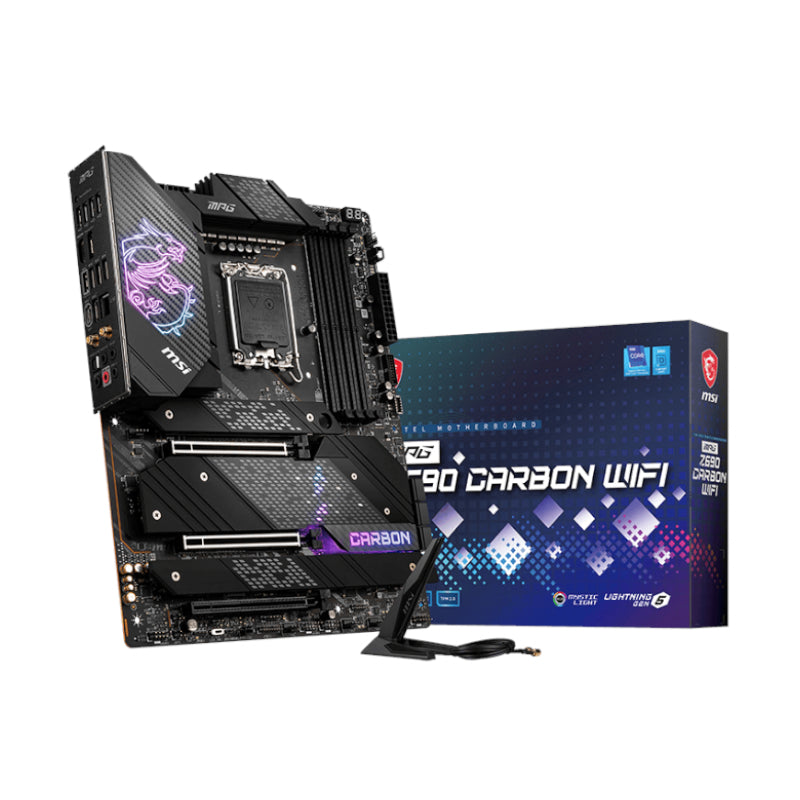

- MSI MPG Z690 Carbon Wi-Fi Intel ATX Motherboard – Black x1
- Wi-Fi Antenna x1
- SATA cables x2
- EZ M.2 Clips x2
- Screwdrivers x2
- USB Drive x1
- 1 to 2 RGB LED Extension Y Cable x1
- CORSAIR RGB LED Extension x1
- Rainbow RGB LED Extension Cable x1
- Cleaning Brush x1
- Cable Stickers Sheet x1
- MPG Stickers Sheet x1
- Quick Install Guide x1
- User Manual x1
