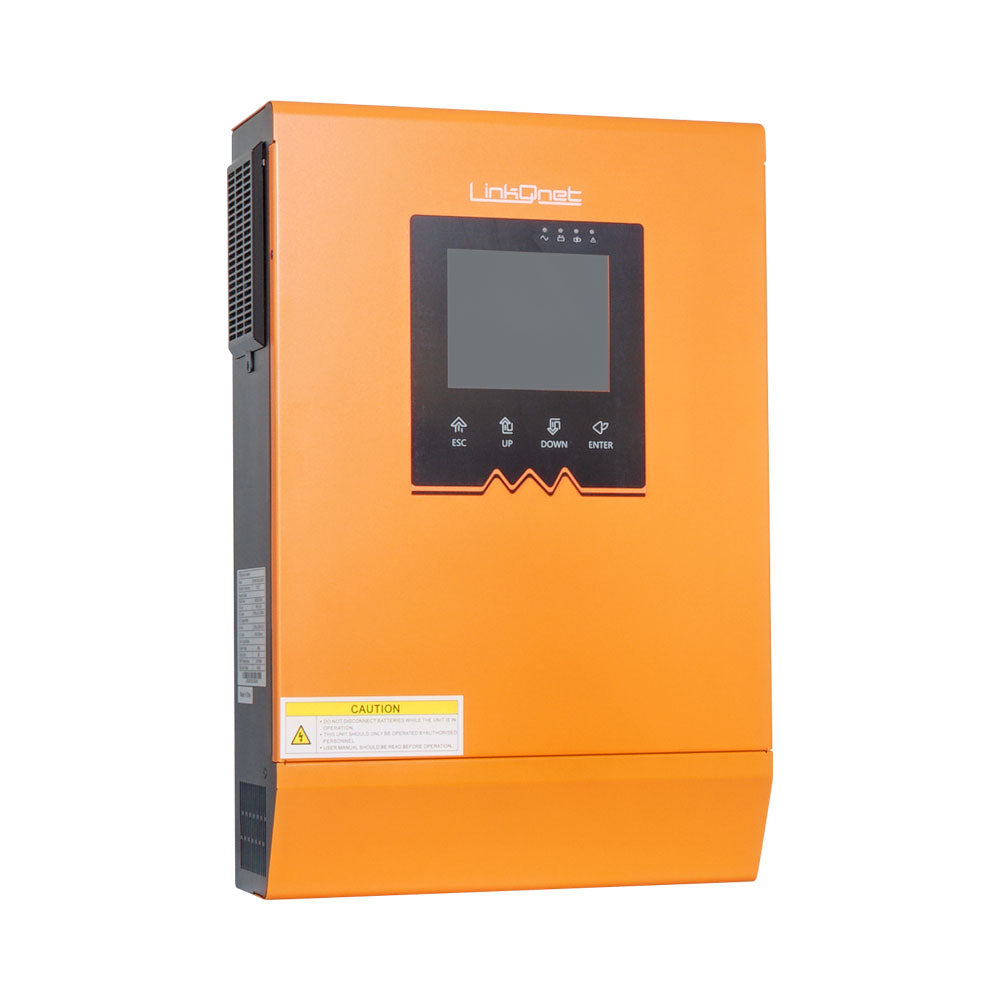

| INVERTER |
PEAK POWER |
5000VA (10000VA surge for max 10 seconds) |
| RMS POWER |
5000W (PF=1) |
| AC VOLTAGE |
230V (220V - 240V Adjustable) |
| AC WAVEFORM |
Pure Sine Wave (50Hz / 60Hz Auto sensing) |
| EFFICIENCY (PEAK) |
>94% |
| DC VOLTAGE |
48V (Single unit can operate without batteries if MPPT voltage > 130V DC) |
| TRANSFER TOLERANCE |
170V to 280V (UPS Mode) / 90V to 280V (Appliance Mode) |
| TRANSFER TIME |
10ms (UPS Mode) / 20ms (Appliance Mode) |
| CHARGING |
AC CHARGE |
80A (Adjustable) |
| SCC TYPE |
MPPT |
| SCC VOLTAGE |
120V - 430V DC |
| MAX PV OC VOLTAGE |
500V DC |
| MAX SCC POWER |
6000W |
| SCC CHARGE |
80A (Adjustable) |
| MAX COMBINED CHARGE |
80A (Adjustable) |
| SCC EFFICIENCY |
98% |
| STANDBY POWER CONSUMPTION |
2W (Inverter can be configured to shut down if no load is present) |
| OPTIONS |
PARALLEL CAPABLE |
Up to nine units in 1PH or three units in 3PH - Parallel kit included |
| COMMUNICATION |
USB-B, Wi-Fi Module Included |
| BATTERY TYPES |
Flooded, AGM, GEL, Li-Ion, Super Capacitor, Custom |
| BMS SUPPORT |
Yes - RS485/CANbus port for LinkQnet Li-FePO4 battery or compatible packs |
| WIFI SUPPORT |
Wi-Fi cloud data logging dongle included (2.4GHz, WPA2 WiFi is required) |
| RELAY SUPPORT |
Relay Port (NC/NO) for remote control of a generator start or other devices |
| WARRANTY |
Two Years - Conditional |
| PHYSICAL |
WEIGHT |
8.45kg |
| DIMENSIONS |
110mm(d) x 300mm(w) x 440mm(h) |
| OPERATING HUMIDITY |
5% to 95% Relative Humidity (non- condensing) |
| OPERATING TEMPERATURE |
0°C to 50°C (Room Temperature) |
| INSTALLATION |
INSTALLATION ENVIRONMENT |
Indoor environment with no exposure to direct external air in coastal regions |
| INPUT ISOLATOR AND SPD |
40A-63A dual pole (to be purchased) Surge Protection Device recommended |
| INPUT CIRCUIT BREAKER |
40A normal curve (to be purchased) |
| OUTPUT CIRCUIT BREAKER |
25A normal curve (to be purchased) |
| BYPASS SWITCH |
40A-63A dual pole, double throw with centre off (to be purchased) |
| OUTPUT ISOLATOR |
25A-63A dual pole (to be purchased) |
| EARTH LEAKAGE RELAY |
63A with 30mA break leakage for plug circuits (to be purchased) |
| PV CONFIGURATION AND SPD |
2 x 20A 600V Solar Fuse / Isolator with surge protection device is required if PV panels are installed. Typical PV layout is 9 x 380W to 600W panels is series. |
| INSTALLATION COMPETENCY |
Not consumer installable. Needs to be wired into building electrical system. Requires qualified electrician with CoC for municipal and insurance compliance. |
| RUNTIMES |
Typical Runtimes with new LinkQnet Li-FePO4 battery packs |
| Load (W) |
With 1 x 100Ah pack (hh:mm) |
With 2 x 100Ah pack (hh:mm) |
| 500W |
10h:16m |
21h:28m |
| 1000W |
04h:28m |
10h:13m |
| 1500W |
02h:38m |
06h:42m |
| 2000W |
01h:51m |
04h:31m |
| 2500W |
01h:30m |
03h:35m |
| 3000W |
01h:16m |
03h:02m |
| 3500W |
01h:05m |
02h:21m |
| 4000W |
00h:50m |
01h:52m |
| 4500W |
00h:44m |
01h:40m |
| 5000W |
(Not possible) |
01h:30m |
| |
|
| Linkqage endeavours to research customer feedback and continuously upgrade our products so specifications may be altered slightly to improve customer value and enhance performance. |
| |
Rev: 20230523A/BR |
