Lenkeng LKV824P | 1×4 HDMI Splitter with Extender

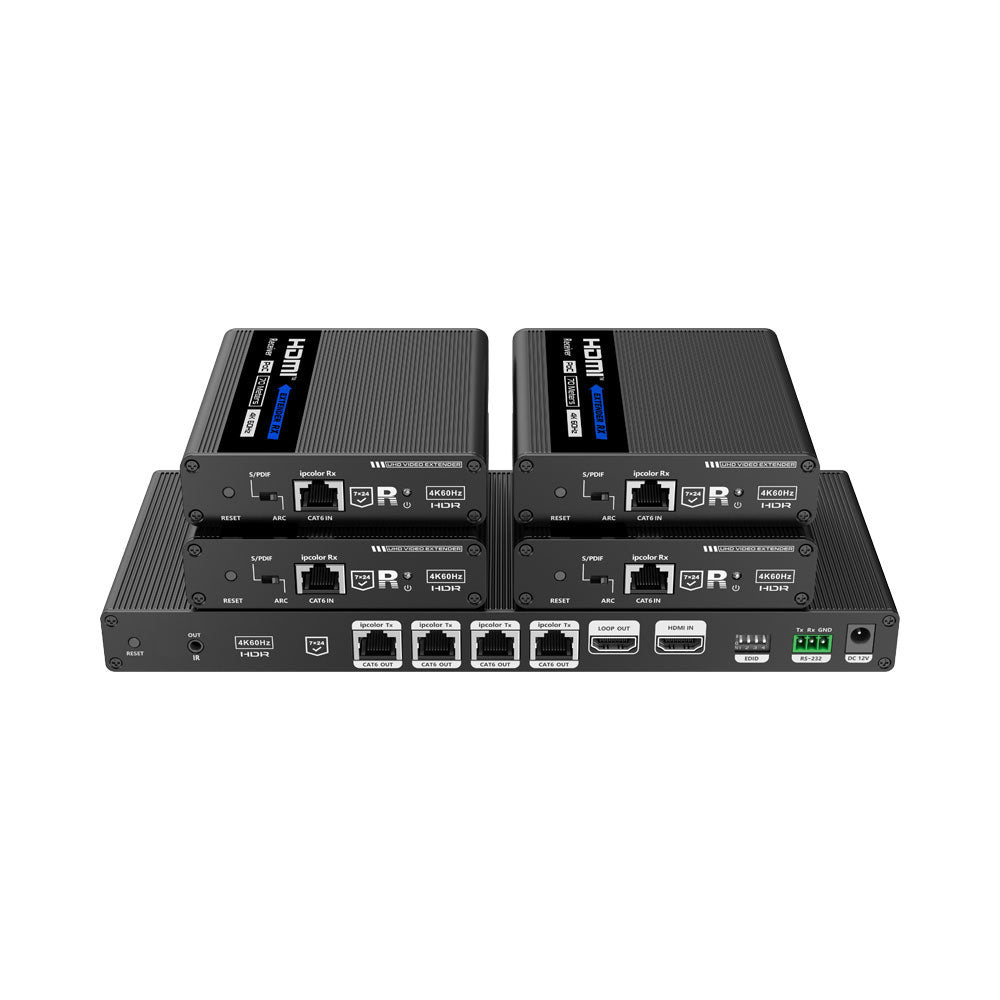

The Lenkeng LKV824P is a 1-input to 4-output extender splitter kit, which integrates the functions of distribution and extension. It distributes 1× HDMI input signal to 4× identical signal outputs, extends these signals up to 70m and supports 4K @60Hz resolution. It also supports IR passback, RS232 control and other functions.
FEATURES:
- Zero latency transmission
- Split and extend one HDMI input signal to four identical network output signals
- Supports up to 4K @60Hz resolution
- Transmission distance up to 70m via CAT6/6A/7 cables
- Supports IR passback (20KHz~60KHz)
- The transmitter supports HDMI loop out
- The receiver can output the digital audio of the TV or source device from the S/PDIF port
- Supports EDID passthrough or manually set the EDID of the product
- Supports RS232 command control
- Surge, lightning and ESD protection
- Equipped with rackmount ears
- Supports PoC - only the transmitter requires a power supply
SPECIFICATIONS:
| Transmission protocol |
ipcolor |
| Distribution mode |
1 In and 4 Out |
| Transmission distance |
CAT6/6A/7 ≤70m |
| HDMI signal |
HDMI2.0, HDCP2.2 |
| HDMI resolution |
480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz, 1280 × 960, 1280 × 800, 1280 × 768, 1680 × 1050, 1360 × 768, 1366 × 768, 1600 × 900, 1024 × 768, 800 × 600, 3840 × 2160 @24/25/30/50/60Hz, 4096 × 2160 @24/25Hz |
| Audio formats |
LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1 |
| IR |
Support IR passback function (20KHz~60KHz) |
| RS232 |
3-Pin: TxD-RxD-GND, follows RS232 levels |
| Working temperature |
-20~60°C |
| Storage temperature |
-30~70°C |
| Humidity (no condensation) |
0~90% RH |
| Protection |
ESD protection |
| 1a Contact discharge level 2 |
| 1b Air discharge level 3 |
| Implementation of the standard: IEC61000-4-2 |
| Lightning protection |
| Surge protection |
| Power supply |
TX: DC12V 3A |
| Power consumption |
TX <13W |
| RX <4W |
| Material |
Aluminium Alloy |
| Colour |
Black |
| Weight |
TX: 640g |
| RX: 210g |
| Dimensions (L × W × H) |
TX: 264 × 104 × 23.5mm |
| RX: 106 × 99 × 26.2mm |
