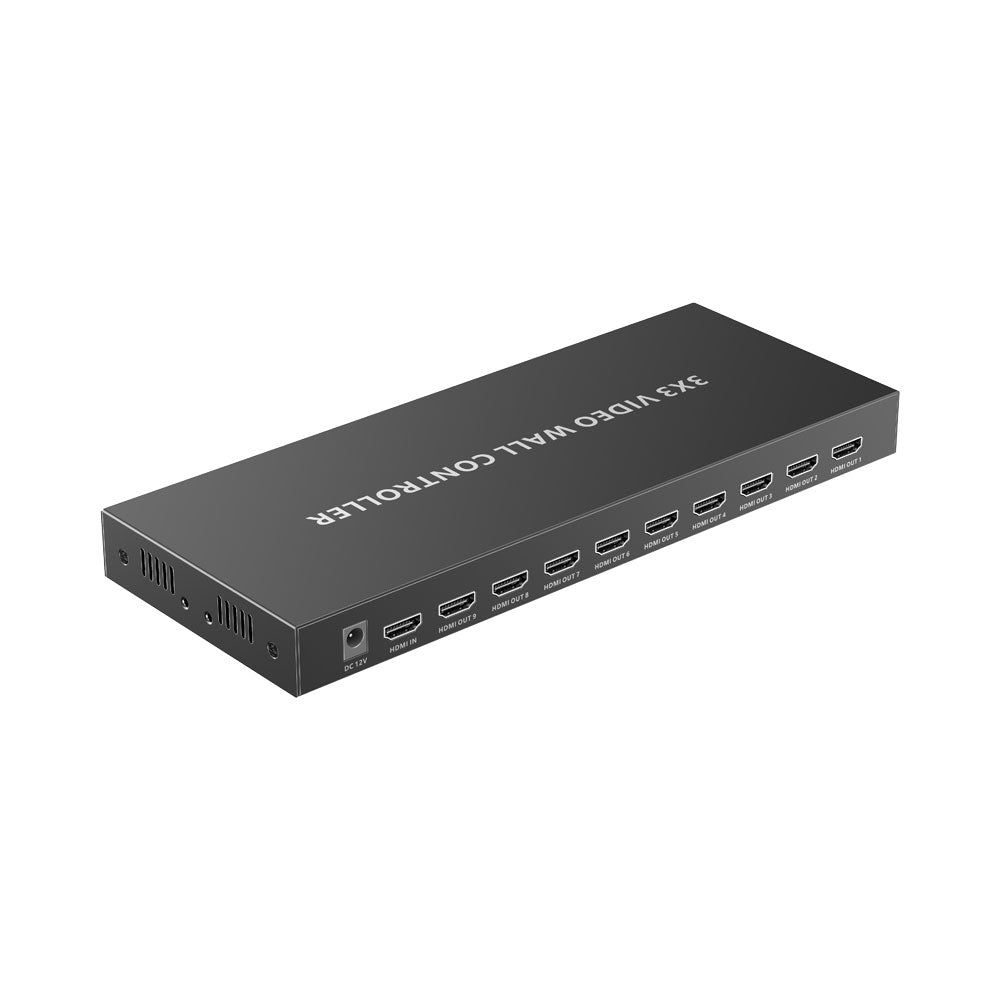

LENKENG LKV109VW-V2.0 | 3×3 Video Wall Controller
This product is a 1-in-9-out video wall controller, supporting one HDMI source input and nine HDMI outputs. It supports 1x2/1x3/1x4/2x2/2x3/3x2/2x4/4x2/3x3 splicing modes, which can be set by RS232 or dip switch. Equipped with 3.5mm audio output, S/PDIF audio output and 180-degree rotation of the display image.
FEATURES:
- HDMI signal input and 9× HDMI signal outputs
- 4096×2160 @60Hz resolution input, 1080p output, downwards compatible
- Variety of splicing modes, such as 1x2/1x3/1x4/2x2/2x3/3x2/2x4/4x2/3x3, etc
- Dip switch switching splicing mode
- RS232 control instruction to set splicing mode
- 3.5mm left/right channel audio output
- S/PDIF audio output
- 180-degree rotation of HDMI display image in 2x2/2X3/2X4 mode (for when the upper displays are installed upside down)
- Firmware upgrading via micro USB port
- Lightning, surge and ESD protection
SPECIFICATIONS:
| Video signal |
HDMI Input |
1x HDMI |
| HDMI Output |
9x HDMI |
| Compatibility |
HDMI 2.0 |
| HDCP 1.4/HDCP 2.2 |
| Resolutions |
Input: |
| 4096×2160 @24/25/30/50/60Hz |
| 3840×2160 @24/25/30/50/60Hz |
| 3440×1440 @60Hz |
| 2560×1600 @60Hz |
| 2560×1440 @60Hz |
| 2560×1080 @60Hz |
| 2048×1536 @60Hz |
| 1920×1200 @60Hz |
| 1080p @24/25/30/50/60Hz |
| Output: |
| 1080p @30/60Hz |
| Audio signal |
3.5mm Output |
PCM |
| S/PDIF Output |
PCM |
| HDMI Output |
PCM |
| Splice Settings |
Mode |
1×2/1×3/1×4/2×2/2×3/3×2/2×4/4×2/3×3, etc. |
| DIP Switch |
| RS232 (GND/RxD/TxD) |
Baud rate: 9600 The mode can be switched using RS232 only when the DIP switch is set to 1111 |
| Power |
Power Supply |
DC12V 2A |
| Power Consumption |
<18W |
| Operating Environment |
Working Temperature |
-20°C~60°C |
| Storage Temperature |
-30°C~70°C |
| Humidity |
0~90%RH (No Condensation) |
| Physical Properties |
Housing |
Iron |
| Weight |
775g |
| Colour |
Black |
| Dimensions (L × W × H) |
265 × 105 × 25mm |
| Protection |
Lightning, Surge and ESD Protection |
