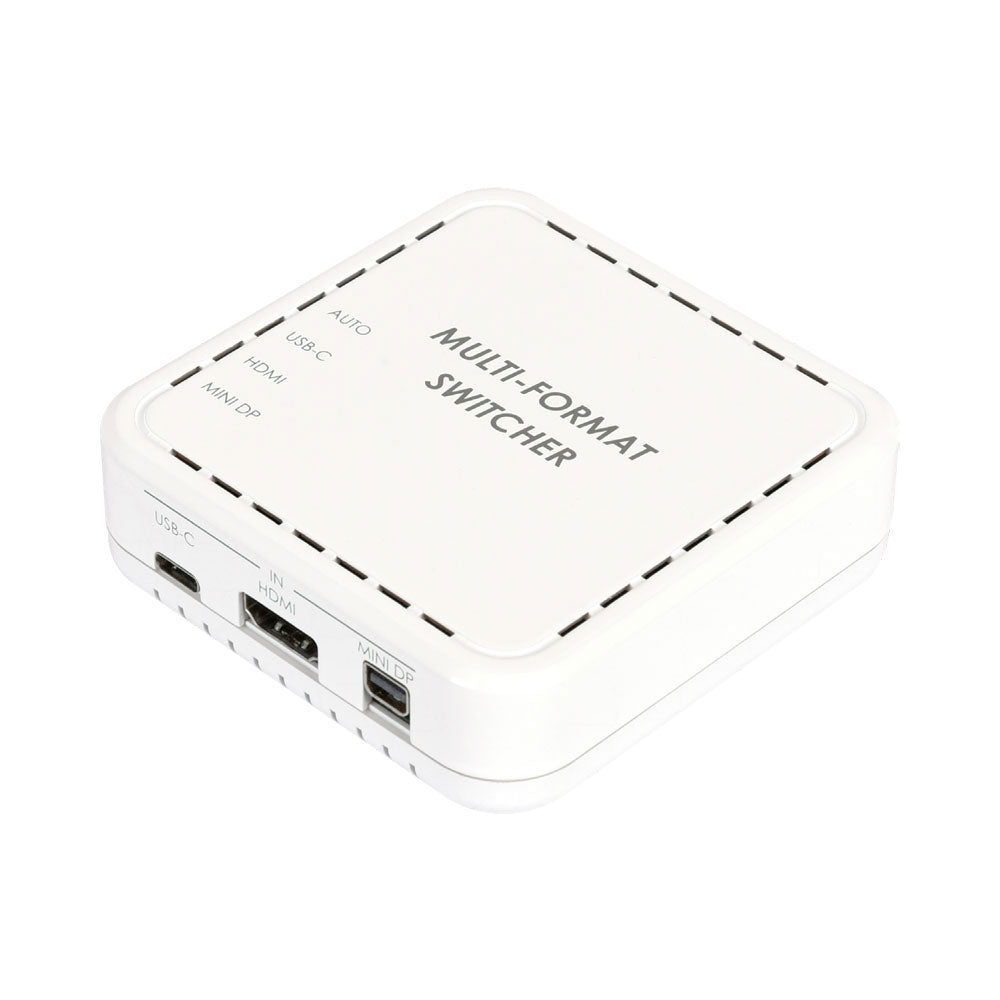

CYP CPLUS-31PS | 4K Multi-Format to HDMI Output Switch
This 3×1 Multi-Format to HDMI Switch is a 4K @60Hz (4:4:4) switch featuring USB Type-C, HDMI and Mini DisplayPort inputs which are automatically converted to a standard HDMI format for use with projectors or displays. The unit provides easy switching functionality with both a manual input selection button and an optional auto-sensing “last memory” feature which can automatically switch to a newly connected source or revert to the previous source, if the current one becomes disconnected, with no user intervention necessary. It is controllable via a single front panel button.
FEATURES:
- EDID bypass with an optimized algorithm to ensure optimal resolution and feature support
- Easy to read LEDs to indicate input selection and operational mode
- Controllable via a single front panel button with LEDs
SPECIFICATIONS:
| INTERFACE |
| Input Ports |
1× USB Type-C |
| 1× Mini DisplayPort |
| 1× HDMI |
| Output Port |
1× HDMI |
| Service Port |
1× Mini USB |
| VIDEO |
| HDMI Compliance |
HDMI 2.0, DP 1.4 and DVI 1.0 |
| HDCP Compliance |
2.x |
| Input Signal Type |
4096 × 2160 @60Hz YUV 4:4:4 |
| Output Signal Type |
4096 × 2160 @60Hz YUV 4:4:4 |
| RESOLUTION |
| Maximum Input |
HDMI: 4096 × 2160 @60Hz |
| Mini DisplayPort: 4096 × 2160 @60Hz |
| USB Type-C: 4096 × 2160 @60Hz |
| Maximum Output |
HDMI: 4096 × 2160 @60Hz |
| AUDIO |
| Input |
LPCM (8 Channels), Bitstream, HD Bitstream |
| Output |
LPCM (8 Channels), Bitstream, HD Bitstream |
| POWER |
| Power Supply |
5V 1.2A Mini USB |
| Power Consumption |
4.7W |
| ENCLOSURE |
| Material |
Plastic |
| Colour |
White |
| Dimensions (W × H × D) |
85 × 26 × 85mm |
| Weight |
80g |
| FIELD FIRMWARE UPDATE |
| Interface |
Mini USB |
