| VIDEO |
| Host Charging Supports |
Supports Max. 96W 5V, 9V, 15V @3A, 20V @4.8A |
| DisplayPort Supports |
Max. 8K @30Hz |
| DP1.4 Specification |
| DPCP |
| RGB, YCbCr 4:4:4, YCbCr 4:2:2 and YCbCr 4:2:0 |
| 8/10/12-bit Deep Colour |
| HDR |
| HDMI 1 Supports |
Max. 8K @30Hz |
| HDCP 2.2 |
| RGB, YCbCr 4:4:4, YCbCr 4:2:2 and YCbCr 4:2:0 |
| 8/10/12-bit Deep Colour |
| HDR |
| HDMI 2 Supports |
Max. 4K @30Hz |
| HDCP 2.2 |
| RGB, YCbCr 4:4:4, YCbCr 4:2:2 and YCbCr 4:2:0 |
| 8/10/12 bit Deep Colour |
| HDR |
| Streaming Support on Windows System Extended Displays |
Max. 2× Streams Simultaneously: |
| Supports Dual 4K @60Hz Output or |
| 8K @30Hz plus 4K @30Hz |
| Max. 3× Streams Simultaneously: |
| Supports Triple 4K @60Hz |
| Streaming Support on MacOS Systm Displays |
DisplayPort and HDMI 1 Output the Same Video |
| Note: |
The Actual Resolution Supported is Determined by the Host and the Display Together |
| PORTS |
| 1× USB3.2 Gen2 Type-C |
Max. 10Gbps Data Transmission |
| Max. 5V 1.5A Charging |
| Short-Circuit and Over-Current Protection |
| 2× USB3.2 Gen2 Type-A |
Max. 10Gbps Data Transmission |
| Max. 900mA Charging per Port |
| Short-Circuit and Over-Current Protection |
| 1× RJ45 LAN |
10/100/100/2.5Gbps |
| Wake-On-LAN and Wake-On-WAN |
| 1× 3.5mm Audio (Line-In / Line-Out) |
24/32-bit, 44.1 / 48 / 96 / 192 / 384KHz Sample Rate |
| Automatic Detection Switch to CTIA/MTP Mode |
| 1× DC Power Jack |
Support Smart Charging, Dynamically Distributing Power to PC and Port Replicator According to the Requirement of the Connected Devices |
| Connects to the 21V 134W DC Power Supply |
| Max. 124W Power for Host and the Port Replicator and 10W for Buffer Power |
| Max. 96W for Host Charging |
| Anti-Theft Lock |
Both Kensington and Nano Locks Are Supported |
| OS Support |
Windows 10 Upwards, MacOS 13.5.2 (Limitations Can Vary on Different Apple Proprietary Silicon) |
| Package Includes |

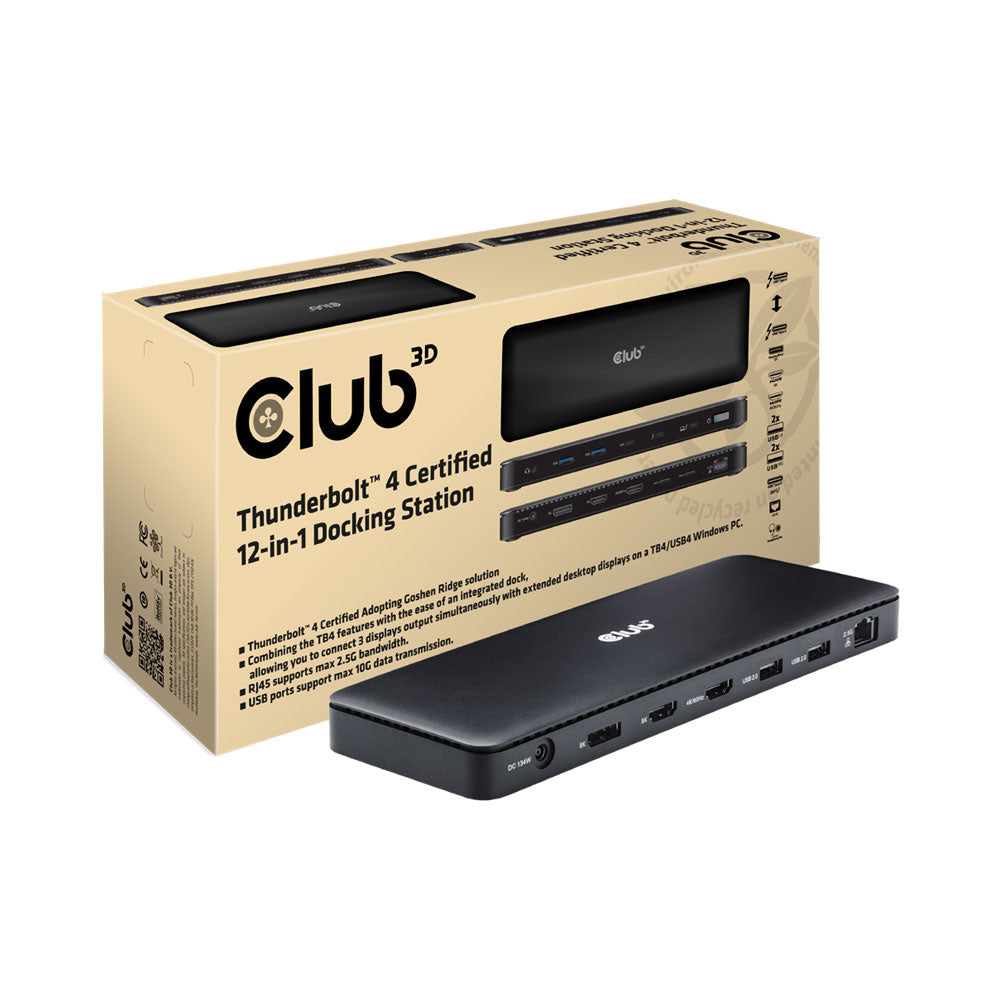

CSV-1582 Thunderbolt 4 Certified 12-in-1 Port Replicator |
| 134W 21V 6.4A Power Adapter |
| Thunderbolt 4 Cable 0.8m (for Connection to Host) |
| QR Code for the QIG (Quick Installation Guide) |
| Port Replicator Dimensions |
22.5 × 8.5 × 2.2cm |
| Power Supply Dimensions |
16 × 6.5 × 3cm |
| Power Cable Length |
1m |
| Thunderbolt 4 Cable Length |
0.8m |
| Total Weight |
1.172kg |
| Certifications |
Meets ROHS, FCC and CE EMI Requirements |
