Description

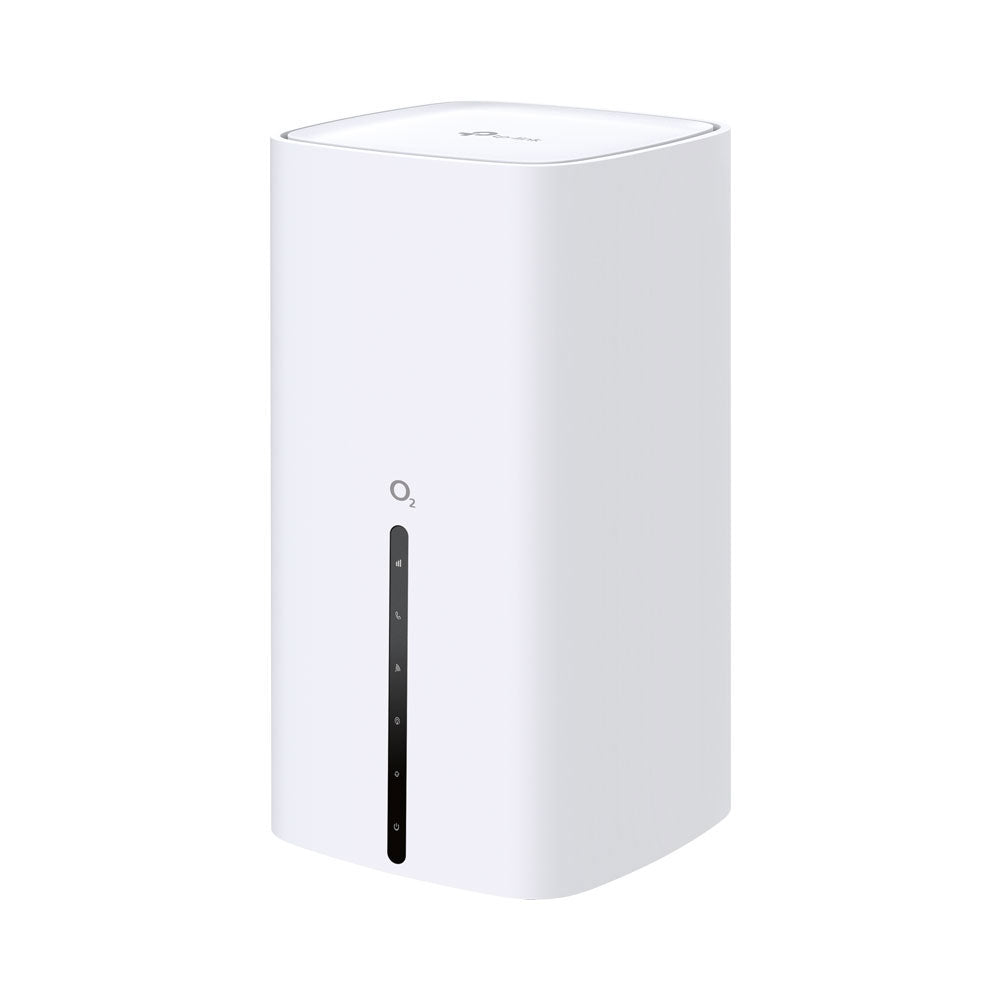

TP-Link NX510v | 5G AX3000 Wi-Fi 6 Telephony Router
Enjoy Wi-Fi and Phone Calls All-in-One 5G Router
FEATURES:
- Boost Your 5G Speed - Take advantage of your advanced 5G network with download speeds up to 3.4Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads and smooth video chats and video conferences
- AX3000 Dual-Band Wi-Fi 6 Speed - 2402Mbps (5.0GHz) and 574Mbps (2.4GHz)
- VoLTE/CSFB Telephony - With 1× voice port, users can make or receive phone calls over the internet simply by connecting the device to their existing telephone set
- Plug and Play - Enjoy 5G network right after inserting a SIM card
- Supports EasyMesh - Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage
- Gigabit Ports for Consummate Connectivity - Gigabit Ethernet ports provide warp speeds and reliable connections for high-intensive wired devices such as your smart TV, game console, NAS and more
- Easy Remote Management - TR-069 and TR-369 protocols and TAUC (TP-Link Aginet Unified Cloud) are supported
SPECIFICATIONS:
| HARDWARE FEATURES | |
| CPU | 1GHz Dual-Core CPU |
| Interface | 3× 10/100/1000Mbps RJ45 LAN Ports |
| (1× port for WAN/LAN auto-sensing) | |
| Button | 1× RESET/Wi-Fi multiplex button and 1× WPS button |
| External Power Supply | Output: 12V 2A |
| Input: 100-240V~50-60Hz 0.8A | |
| Dimensions (W × D × H) | 99 × 99 × 192mm |
| Antenna | Internal Wi-Fi antennas; optional Internal/external LTE/5G antennas |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11a/n/ac/ax 5GHz |
| IEEE 802.11b/g/n/ax 2.4GHz | |
| Frequency | 2.4GHz and 5.0GHz |
| Signal Rate | 5G SA : 2.4Gbps (downstream) / 900Mbps (upstream) |
| 5G NSA: 3.4Gbps (downstream) / 550Mbps (upstream) | |
| LTE: 1.6Gbps (downstream) / 200Mbps (upstream) | |
| Transmit Power | CE:≤20dbm (2.4GHz); ≤23dbm (5G band1/band2) |
| ≤30dbm (5G band3) | |
| RCM: ≤30dbm (2.4GHz);≤23dbm (5G band1/band2) | |
| ≤30dbm (5G band3/band4) | |
| Wireless Security | WPA/WPA2-PSK/WPA3 encryption |
| Network Type | 5G: |
| N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 | |
| 4G: | |
| FDD-LTE:B1/B3/B5/B7/B8/B20/B28 | |
| TDD-LTE: B38/B40/B41/B42/B43 | |
| 3G: | |
| DC-HSDPA, HSPA+, HSDPA, HSUPA,WCDMA B1/B5/B8 | |
| Mesh Technology | 802.11k/v/r, support EasyMesh |
| SOFTWARE FEATURES | |
| Working Mode | 5G/4G/3G, Wi-Fi Router |
| Multi SSID | 3 more 2.4GHz/5GHz Network |
| Features | Parental Controls, QoS (Quality of Service), Address Reservation, Port Forwarding, Dynamic DDNS, SIM Management,SMS, Cloud Upgrade, EasyMesh , VoLTE, IPTV, IPv6, NAT Forwarding, Firewall, LED Control, Network Diagnosic, CWMP, SNMP, Traffic Statistic, WPS,1024-QAM, OFDMA, IPSEC VPN, WEB Remote Control |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
| Protocols | Supports IPv4 and IPv6 |
| OTHERS | |
| Certification | CE, RoHS |
| Package Contents | 5G AX3000 Wifi6 Telephony Router NX510v |
| 1× RJ45 Ethernet Cable | |
| 1× Power Adapter | |
| 1× RJ11 Cable | |
| 1× Quick Installation Guide | |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1,10, MAC OS, NetWare, UNIX or Linux Internet |
| Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browers or higher | |
| Environment | Operating Temperature: 0°C~40°C |
| Storage Temperature: -40°C~70°C | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
