| HARDWARE FEATURES |
| Interface |
1 × 10/100/1000 Mbps LAN/WAN Port |
| 3 × 10/100/1000 Mbps LAN Ports |
| 1 × Micro SIM Card Slot |
| Button |
WPS Button, Reset Button, WiFi On/Off Button, Power On/Off Button |
| External Power Supply |
Power Adapter: Input Power 100-240v~50/60 Hz 0.6A |
| Output parameter 12VDC 1.5A |
| Dimensions ( W x D x H ) |
9.0×6.3×1.5 in ( 229×160×37 mm) |
| Antenna |
2 × Detachable 4G LTE Antennas |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
| Frequency |
2.4 GHz and 5 GHz |
| Signal Rate |
300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz |
| Reception Sensitivity |
5 GHz: 11a 54M: -74 dBm |
| 11ac HT20: -66 dBm |
| 11ac HT40: -63 dBm |
| 11ac HT80 : -59 dBm |
| 11n HT20: -73 dBm |
| 11n HT40: -70 dBm |
| 2.4 GHz: 11g 54M: -74 dBm |
| 11n HT20: -72 dBm |
| 11n HT40: -69 dBm |
| Transmit Power |
< 20 dBm (2.4 GHz), < 23 dBm (5 GHz) |
| Wireless Functions |
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless |
| Statistics |
| WAN Failover |
Yes |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Network Type |
4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) |
| TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) |
| 3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
| SOFTWARE FEATURES |
| Quality of Service |
Bandwidth Control |
| Security |
DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control |
| WAN Type |
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management |
TP-Link Cloud, Local Management, Remote Management |
| DHCP |
Server, DHCP Client List, Address Reservation |
| Port Forwarding |
ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
TP-Link, DynDns, NO-IP |
| VPN |
PPTP VPN, IPSec VPN , OpenVPN |
| Access Control |
Parental Control, Local Management Control |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/Domain Filter, |
| IP and MAC Address Binding |
| Protocols |
IPv4, IPv6 |
| Guest Network |
2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1 |
| OTHERS |
| Certification |
CE, RoHS |
| Package Contents |

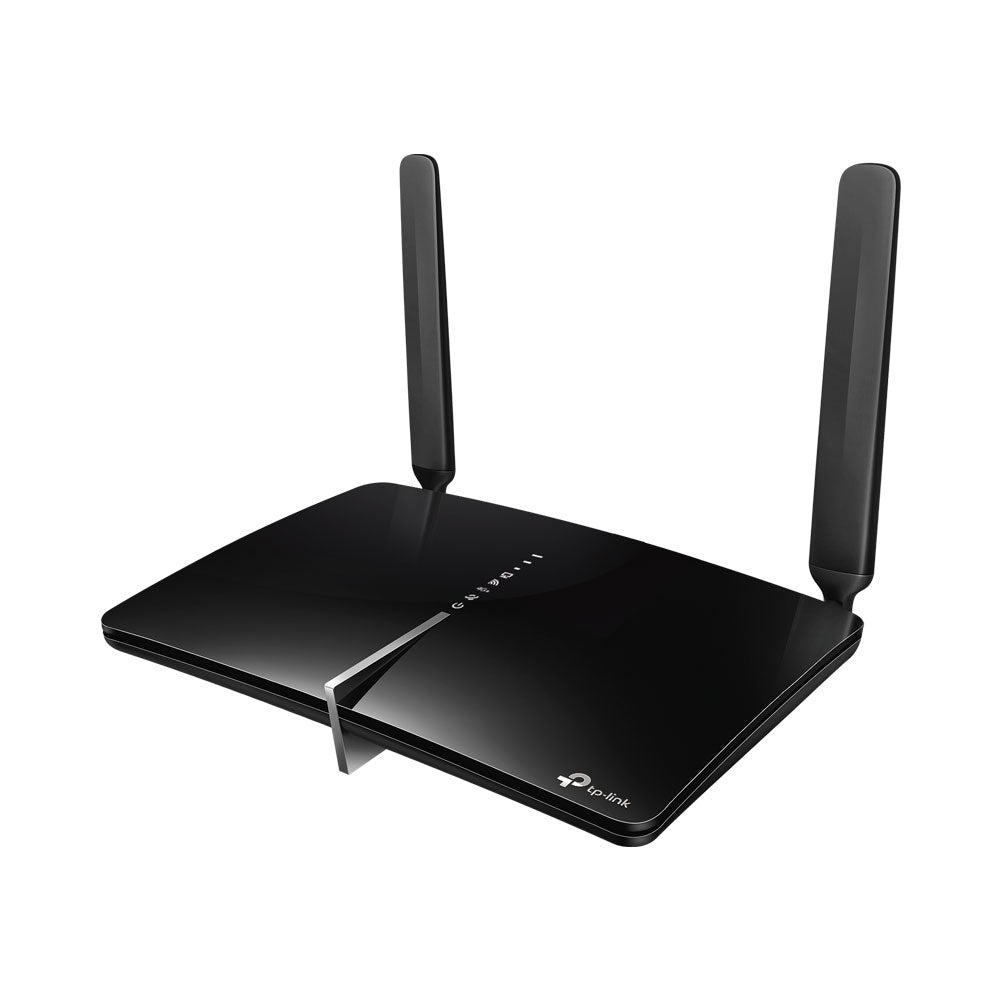

4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router Archer MR600 |
| Power Adapter |
| RJ45 Ethernet Cable |
| Quick Installation Guide |
| System Requirements |
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, |
| NetWare, UNIX or Linux |
| Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other |
| Java-enabled browser |
| Micro SIM Card |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉ ~158℉) |
| Operating Humidity: 10%~90% non-condensing |
| Storage Humidity: 5%~90% non-condensing |
