Description
Introducing the Cudy BE3600 Wi-Fi 7 Mesh Router, a cutting-edge networking solution engineered to meet the demands of modern households and small businesses. Harnessing the latest Wi-Fi 7 technology, this dual-band router delivers an impressive combined wireless speed of up to 3.6 Gbps—comprising 2,882 Mbps on the 5 GHz band and 688 Mbps on the 2.4 GHz band. This ensures seamless, high-speed connectivity for bandwidth-intensive activities such as 4K streaming, online gaming, and large file transfers.
At the heart of the BE3600 is a robust Broadcom 2 GHz Quad-Core CPU, paired with 512 MB of RAM, enabling efficient handling of multiple simultaneous connections. This powerhouse configuration supports up to 200 devices without compromising performance, making it ideal for smart homes and offices with numerous connected devices.
Equipped with five Gigabit Ethernet ports, the BE3600 offers versatile wired connectivity options for devices requiring stable, high-speed internet access. Its coverage extends up to 130 m² (1,400 ft²), ensuring a strong and reliable Wi-Fi signal throughout your space. Additionally, the router supports both VPN server and client functionalities, providing secure remote access and safeguarding your online activities.
User-friendly features include the Cudy App and cloud control capabilities, allowing for effortless network management and monitoring from anywhere. With its advanced technology and comprehensive feature set, the Cudy BE3600 Wi-Fi 7 Mesh Router is designed to elevate your networking experience to new heights.
FEATURES:
- Connect up to 200 Devices
- 2 GHz Quad-Core processor with 512 MB RAM
- Wi-Fi 7 ultra-fast wireless speeds up to 3.6 Gbps
- Efficient MU-MIMO + OFDMA delivers data to multiple devices
- Smart control mobile and cloud remote management via Cudy App

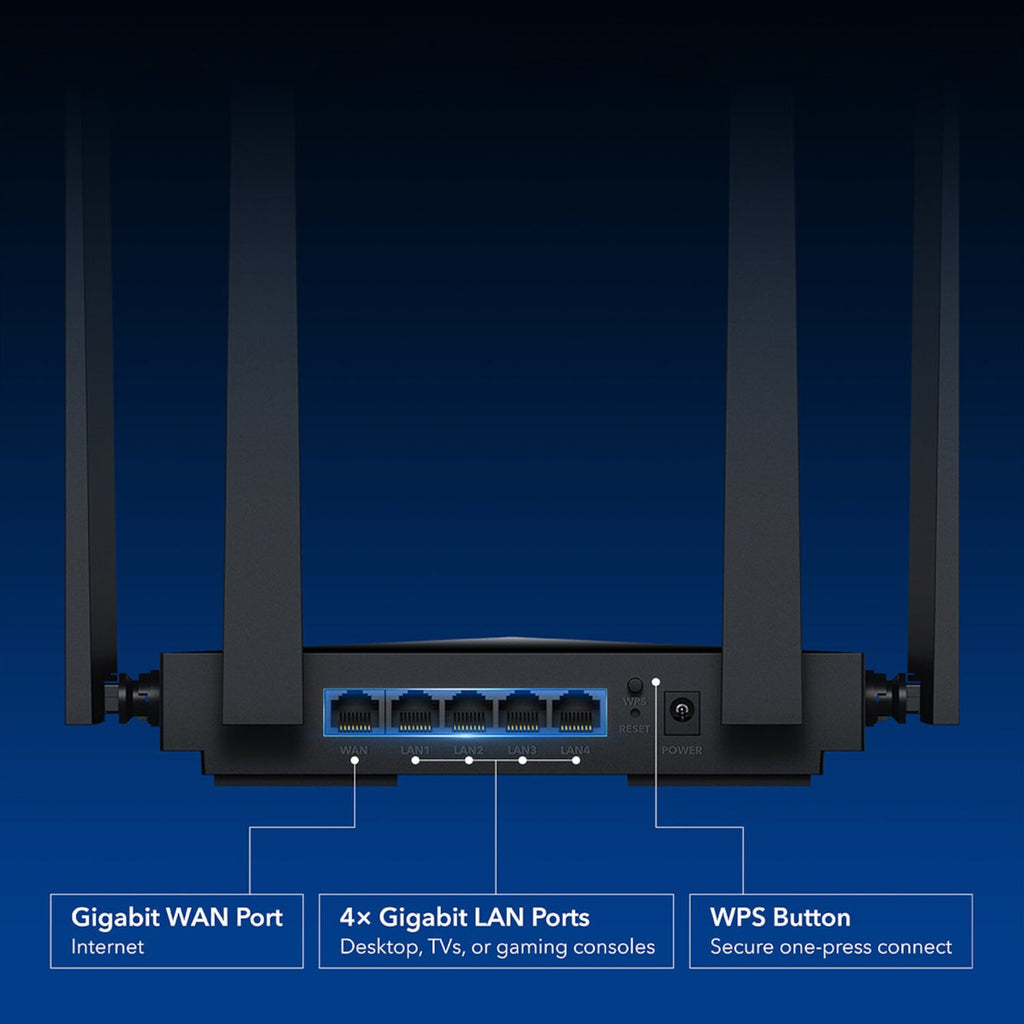

- Includes 1× WAN and 4× LAN ports for high-speed wired connections
- Mesh networking ready, for seamless whole-home or whole-office Wi-Fi
- Dual-band performance combines 2,882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz
- Extensive stable signal across 130 m² (1,400 ft²), eliminating dead zones and signal drops
- Supports VPN server/client and WPA3 encryption for enhanced network protection and remote access
SPECIFICATIONS:
- CPU
- Chipset: BCM6764
- CPU Details: 2.0 GHz Quad-Core, ARM Cortex-A7
- Memory/Storage
- Flash/ROM: 128 MB (1 Gbit) NAND
- DDR/RAM: 512 MB (4 Gbit) DDR3L
- Wireless
- 5 GHz Wi-Fi Speed: 2882 Mbps
- 2.4 GHz Wi-Fi Speed: 688 Mbps
- 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
- 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
- Wi-Fi Antennas: 4× Fixed
- 5 GHz Antenna Gain Max: 5.5dBi
- 2.4 GHz Antenna Gain Max: 5.4dBi
- FEM or PA/LNA:
- 5 GHz: 2× External
- 2.4 GHz: 2× Internal
- Beamforming: True
- Range Performance: Max: 220 m (722 ft)
- Wall Performance:
- Two wooden/concrete walls with thickness < 10 cm (4'')
- One concrete wall with thickness < 20 cm (7'')
- Interfaces

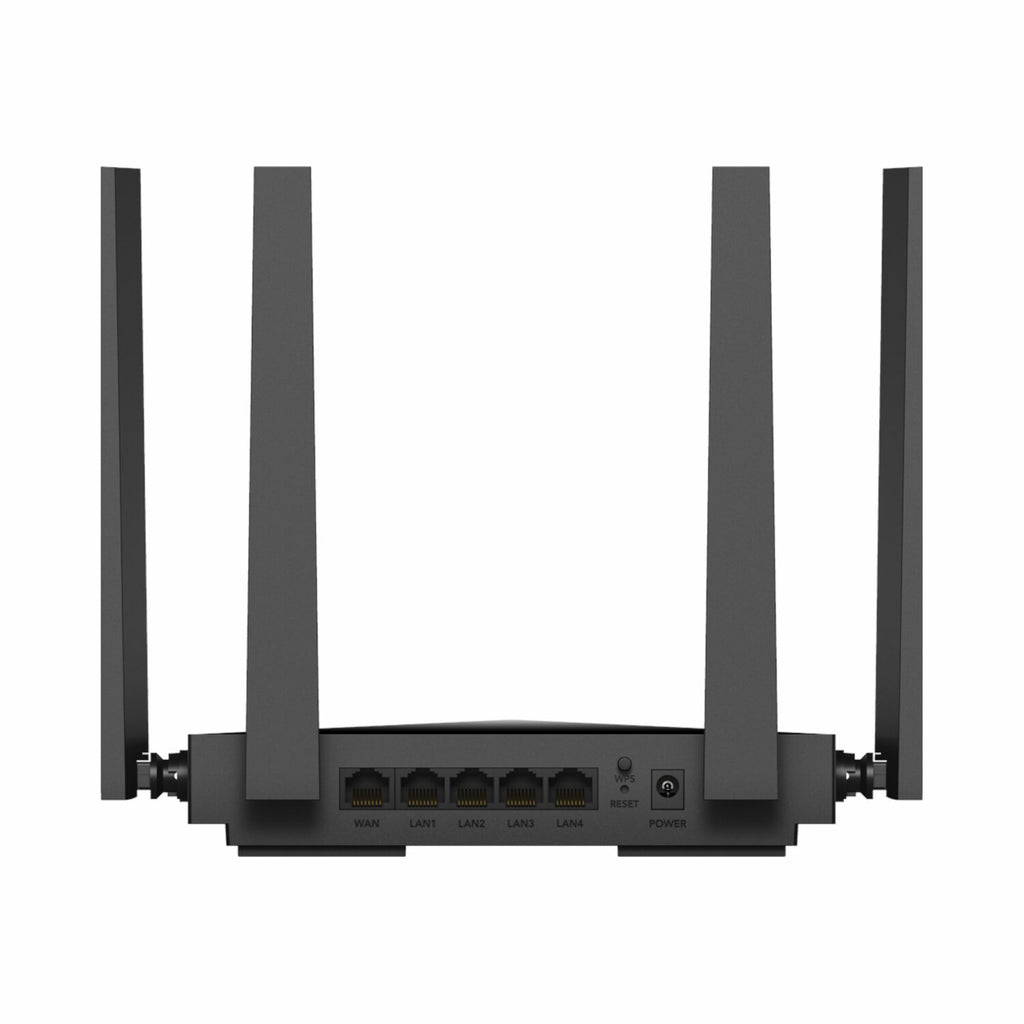

- Gigabit RJ45 Ports: 5
- Ethernet Notes: 1× WAN port, the rest are LAN ports
- LED:
- Power
- Internet
- WAN
- LAN
- 2.4 GHz Wi-Fi
- 5 GHz Wi-Fi
- Physical Buttons:
- WPS Button
- Reset Button
- Power Input: DC Jack
- Power
- Power Methods: DC
- DC: 12V 1A
- Power Adapter:
- Input: 100 ~ 240 V, 50/60 Hz AC
- Output: 12V 1A DC
- Max Power Consumption: 9W
- Reliability
- Operating Temperature: 0 ℃ ~ 40 ℃
- Storage Temperature: -40 ℃ ~ 70 ℃
- Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 95% non-condensing
- Certifications: FCC, CE
- Mechanical
- Installation: Desktop/Wall Mount
- Device Dimensions: 18.33 × 10.9 × 3.8 cm
- Antenna Length: 17.5 cm
- Product Weight 333.5 g

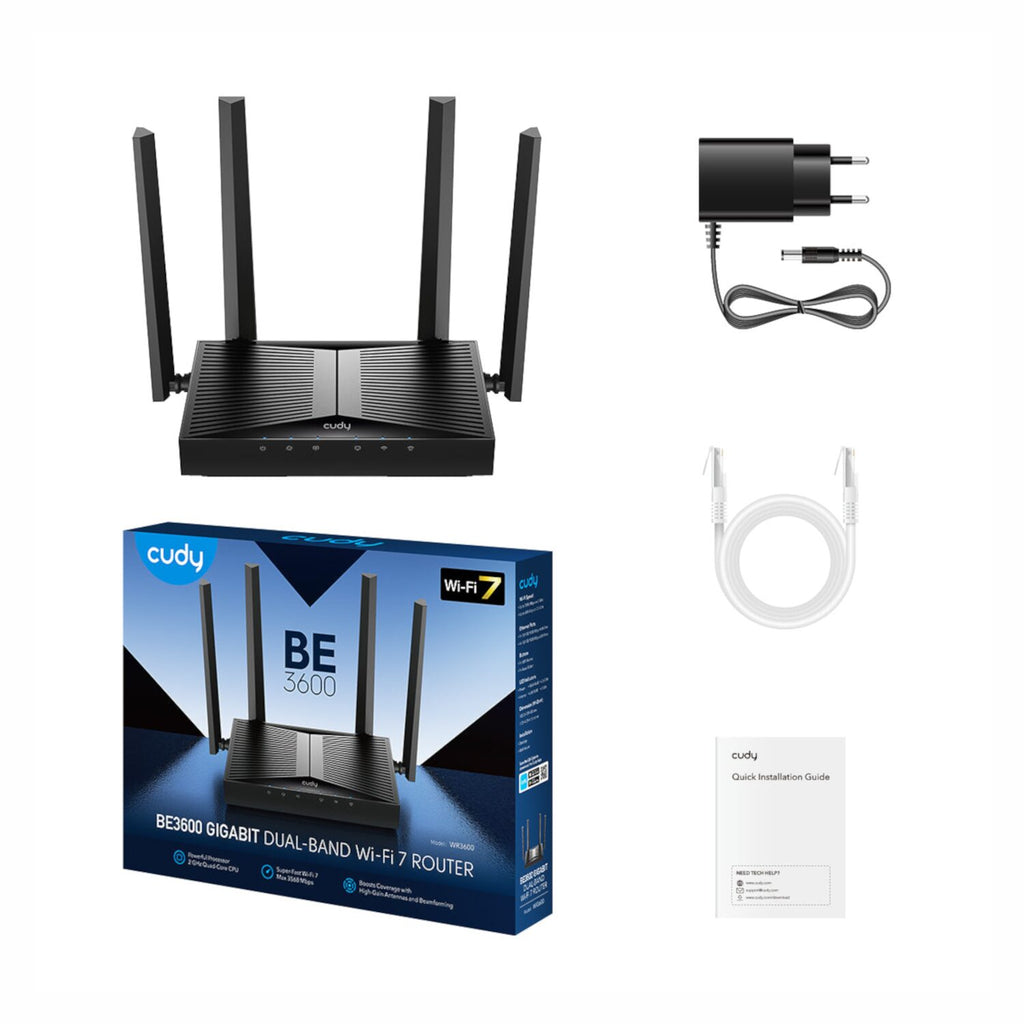

WHAT'S IN THE BOX:
- Cudy BE3600 Wi-Fi 7 Mesh Router x1
- Power Adapter x1
- Ethernet Cable x1
- Installation Guide x1
