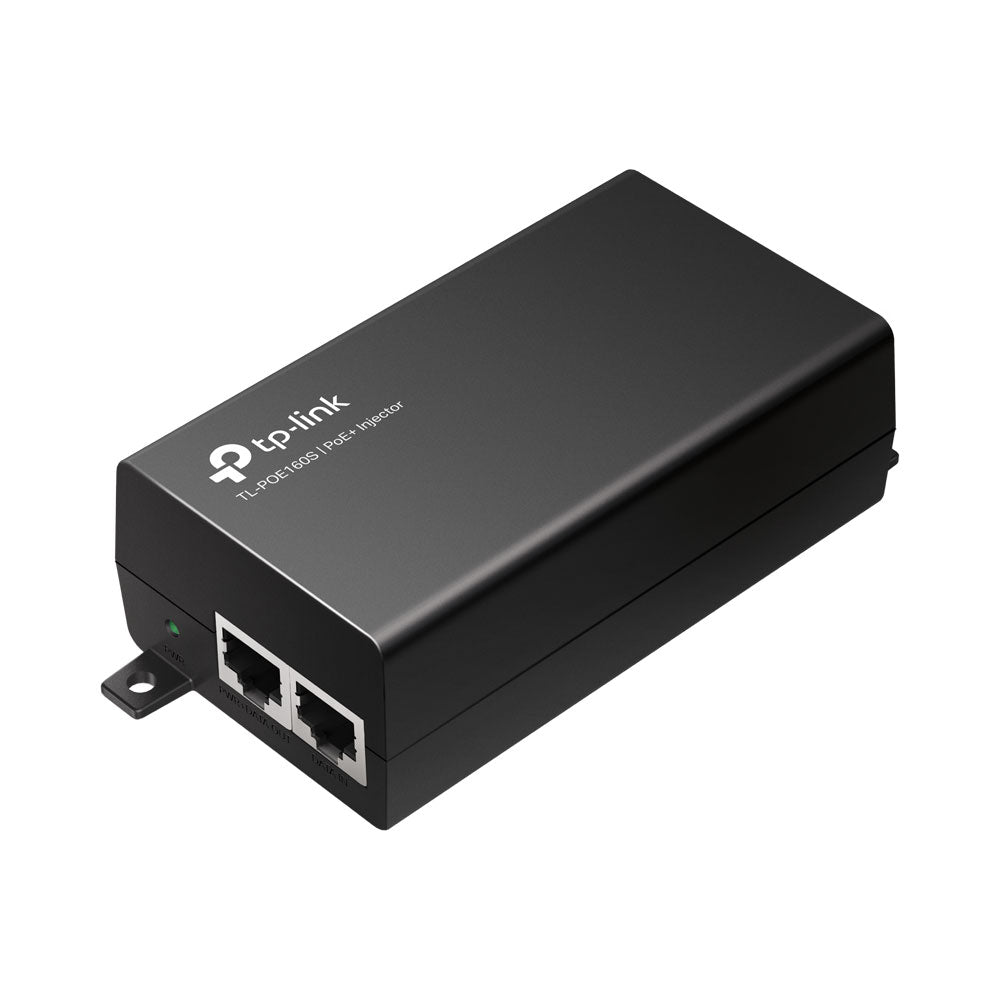

TP-Link TL-POE160S Dual Port PoE+ Injector
The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
- 2 Gigabit ports ensure faster transmission
- Complies with IEEE802.3af/at standards, supplies up to 30 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, requires no configuration
- Integrated power supply
| NETWORK | |
| Standards and Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at |
| GENERAL | |
| Certification | FCC, CE, RoHS |
| Environment | Operating Temperature: 0°C to 40°C (32°F to 104°F) |
| Storage Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Humidity: 10% to 90%RH non-condensing | |
| Storage Humidity: 5% to 90%RH non-condensing | |
| HARDWARE FEATURES | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) |
| EIA/TIA-568 100Ω STP (maximum 100 m) | |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) | |
| EIA/TIA-568 100Ω STP (maximum 100 m) | |
| 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) | |
| Ports | 1 10/100/1000Mbps RJ45 data-in port |
| 1 10/100/1000Mbps RJ45 power+data-out port | |
| 1 AC power port | |
| Power Consumption | Input: 100-240 V, 50/60 Hz |
| Output: Auto-determine the necessary power requirements (max. 30 W) | |
| Basic Function | Auto-Sensing Algorithm enables providing power with 802.3af/at PD |
| Auto-determine the necessary power requirements | |
| Wall-mounting and desktop installation supported | |
| Plug-and-Play | |
| LED Indicator | ON: Supplying power normally |
| OFF: No power supply | |
| Dimensions ( W x D x H ) | 4.9 x 2.3 x 1.4 in |
| (125 x 59 x 37 mm) | |
