Description

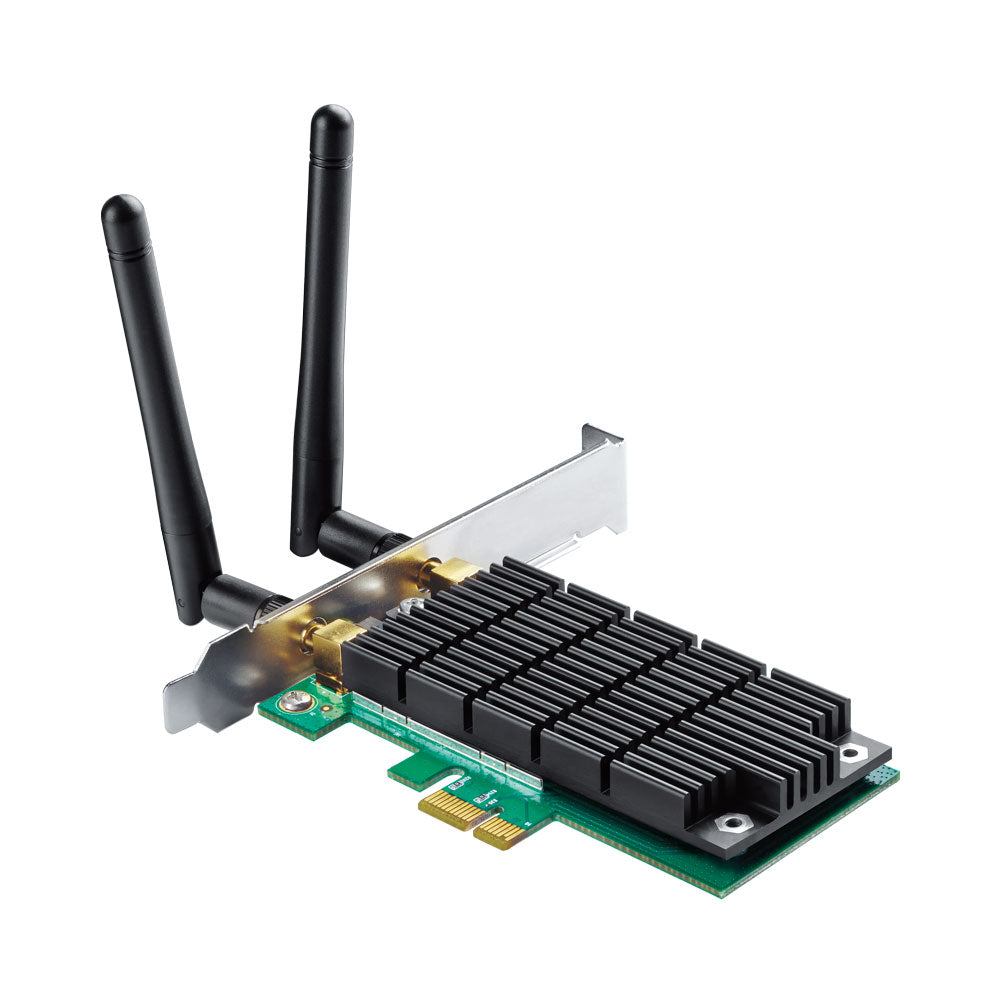

TP-Link AC1200 2x2 MIMO Wireless Dual Band PCI Express Card (ARCHER T4E)
- Easy Installation - Plug the adapter into an available PCI-E slot to upgrade your desktop
- High Speed Wi-Fi - Up to 1200 Mbps Wi-Fi speeds (867 Mbps on 5 GHz band and 300 Mpbs on 2.4 GHz band)
- 802.11ac Dual Band - 3 times faster than the 802.11n standard, perfect for high-intensity network usage
- Beamforming - Wi-Fi signals are strengthened towards certain direction where client exists
- Multiple-Size Brackets - Low profile and full heigh brackets are both provided, suitable for all PCs
- 2x2 MIMO - Users can easily access to high-speed wireless connection
- Broad Wireless Range - Two external antennas ensure greater Wi-Fi coverage and enhanced stability
| HARDWARE FEATURES | |
| Interface | PCI Express |
| Dimensions ( W x D x H ) | 4.8 x 4.5 x 0.85 in (120.8*115.2*21.5 mm) |
| Antenna Type | 2 Dual Band Detachable Antennas |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ac/n/a 5 GHz |
| IEEE 802.11n/g/b 2.4 GHz | |
| Signal Rate | 5 GHz |
| 11ac: Up to 867 Mbps(dynamic) | |
| 11n: Up to 300 Mbps(dynamic) | |
| 11a: Up to 54 Mbps(dynamic) | |
| 2.4 GHz | |
| 11n: Up to 300 Mbps(dynamic) | |
| 11g: Up to 54 Mbps(dynamic) | |
| 11b: Up to 11 Mbps(dynamic) | |
| Reception Sensitivity | 5 GHz : |
| 11ac HT80: -59.5 dBm | |
| 11ac HT40: -63 dBm | |
| 11ac HT20: -68 dBm | |
| 11n HT40: -70 dBm | |
| 11n HT20: -73 dBm | |
| 11a 54Mbps: -76 dBm | |
| 11a 6Mbps: -92 dBm | |
| 2.4GHz : | |
| 11n HT40: -67.5 dBm | |
| 11n HT20: -70 dBm | |
| 11g 54Mbps: -72 dBm | |
| 11b 11Mbps: -86.5 dBm | |
| Transmit Power | 5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP) |
| 2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP) | |
| Wireless Modes | Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | AC1200 Wireless Dual Band PCI Express Adapter Archer T4E |
| Low-Profile Bracket | |
| Quick Installation Guide | |
| Resource CD | |
| System Requirements | Windows 10/8.1/8/7/XP (32/64bit) |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
