Shuttle XPC nano NC40U | Palm-Sized Barebone Celeron NUC PC
Multi-Tasking and Superior Performance for Your Business Needs
Shuttle’s XPC nano NC40U series houses the performance hybrid architecture of Intel 12th Gen Alder Lake-U platform, capable of multi-tasking and parallelism and with Intel Iris Xe graphics for powering AI workloads, including taking the graphics and multimedia processing to a new level. Despite its 0.85l palm-size design, it can accommodate one 2.5" hard disk (up to 15mm) and enable additional M.2 SSDs or NVMe SSD installation for flexible storage capacity. Combined with rich I/Os such as USB3.2 Gen2, USB3.2 Gen1 and Intel Gigabit LAN, supporting triple display by the HDMI, DisplayPort and Type-C that increase the functionality to adapt to various business computing to suit digital signage, kiosk, edge computing and video conferencing.
FEATURES:
- Intel UHD Graphics for 12th Gen Intel Processors
- Up to 64GB of DDR4 SO-DIMM memory
- 2× NVMe (RAID support), 1× SATA 2.5"
- 1× HDMI 2.0b, 1× DisplayPort 1.4a
- 2× M.2-2280, 1× M.2-2230
- Gigabit Ethernet
- 2× USB3.2 Gen2 (10Gbps), 4× USB3.2 Gen1 (5Gbps), 1× USB3.2 Gen1 (5Gbps) Type-C
- Always-On Jumper
- Wall/VESA Mount Included
SPECIFICATIONS:
| Cooling system |
|
Smart fan |
| Processor |
|
Intel Celeron 7305 or Intel i3-1215U / i5-1235U / i7-1255U |
| Graphics |
|
Intel Iris Xe Graphics |
| Display Resolution Max. |
|
HDMI 4096 × 2160 @60Hz DisplayPort 4096 x 2160 @60Hz |
| Display Output |
|
3 Independent Displays |
| Video Decoder |
|
WMV9, AVC / H.264, JPEG / MPEG, HEVC / H.265, VP9, AV1 |
| Memory |
|
2 × DDR4 3200/2933/2666 MHz, Max. 64GB |
| Storage |
|
1 × 2.5" HDD/SSD (max. 15 mm) |
| Expansion Slot |
|
2 × M.2 2280, M Key 1 × M.2 2230, E Key |
| Video Output |
HDMI Port |
1 |
| |
DisplayPort |
1 |
| |
Type-C |
1 |
| I/O Port |
USB 3.2 Gen1/Gen2 (Front) |
3× (Includes Type-C) |
| |
USB 2.0 (Front) |
No |
| |

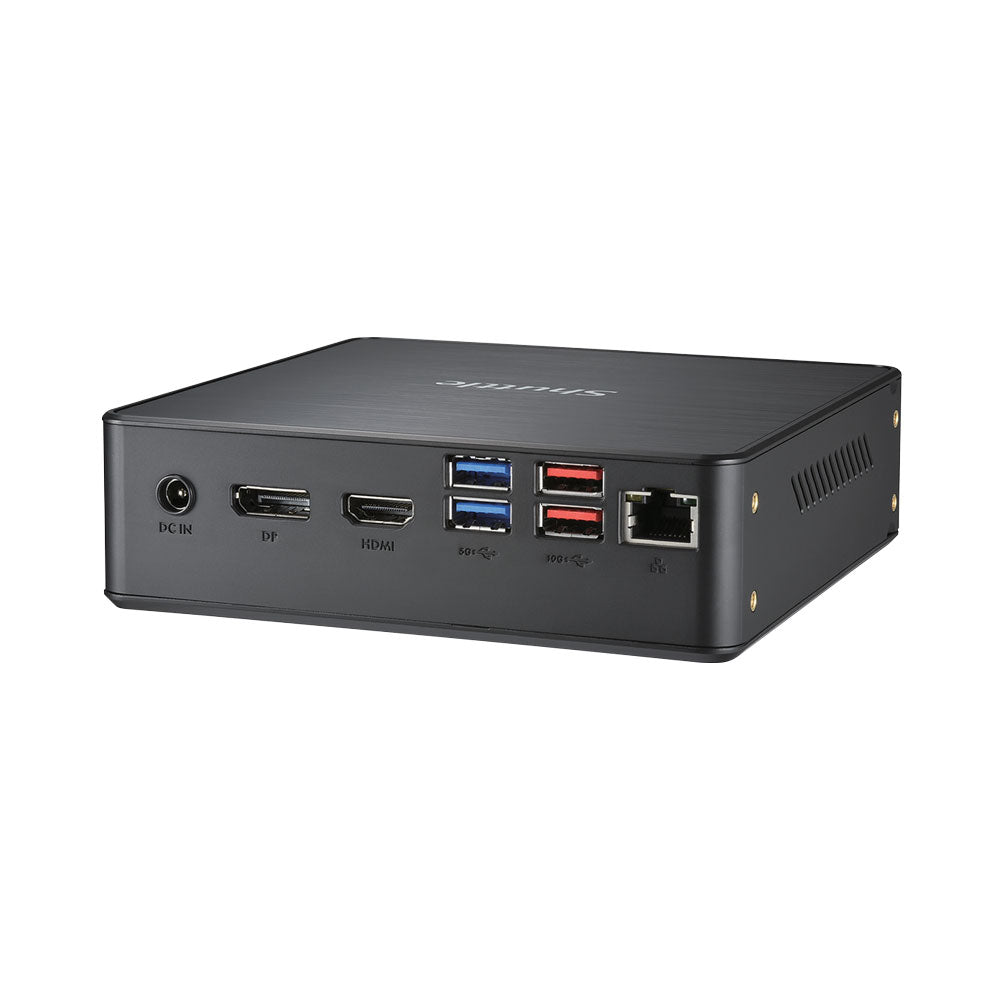

USB 3.2 Gen1/Gen2 (Rear) |
2 / 2 |
| |
USB 2.0 (Rear) |
No |
| |
COM Port |
No |
| |
Line out / Mic in |
1 / 1 |
| Network |
LAN |
Intel Gigabit LAN |
| |
WLAN |
Optional |
| VESA Mount |
|
Bracket included |
| Stand |
|
Bracket included |
| Dimension (L × W × H) mm |
|
142 × 142 × 42mm |
| Certification |
|
CB, CE, BSMI, cTUVus, FCC, RCM, RoHS, VCCI |
| Operating Temperature (⁰C) |
|
0~50 |
| Chassis |
|
Plastic |
| Power Supply |
Power Input |
19V DC |
| |
Bundled Adapter |
19V / 3.42A 65W external adapter |
| Operating System |
|
Windows 10 / 11 64bit, Linux |
