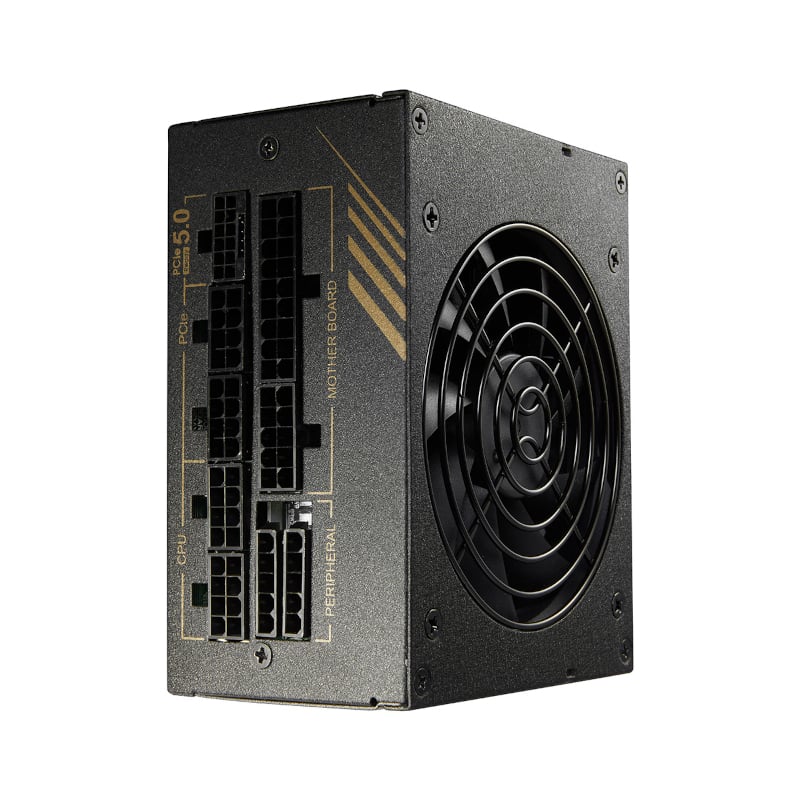

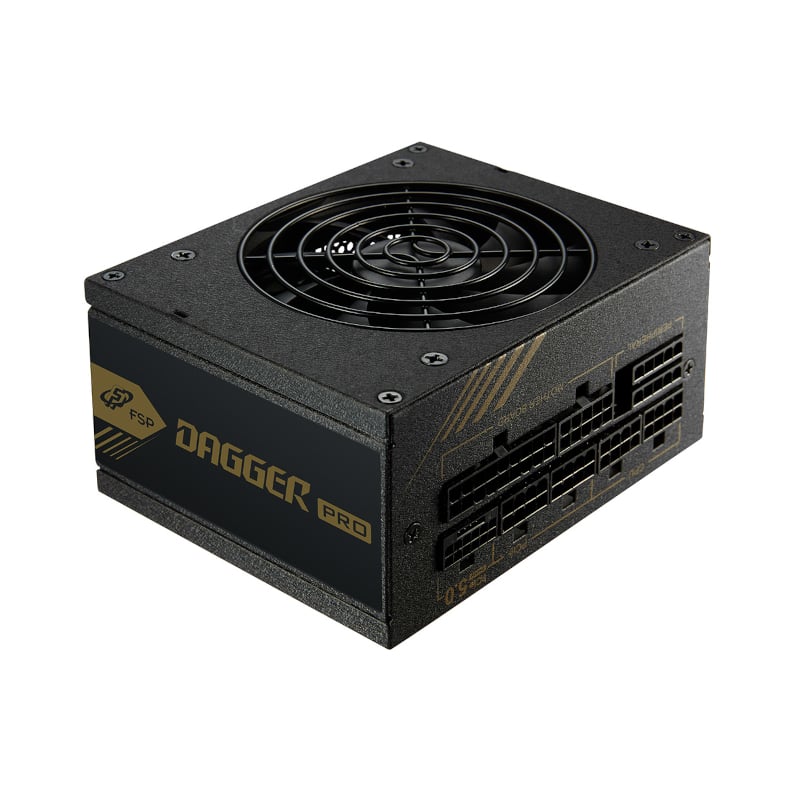

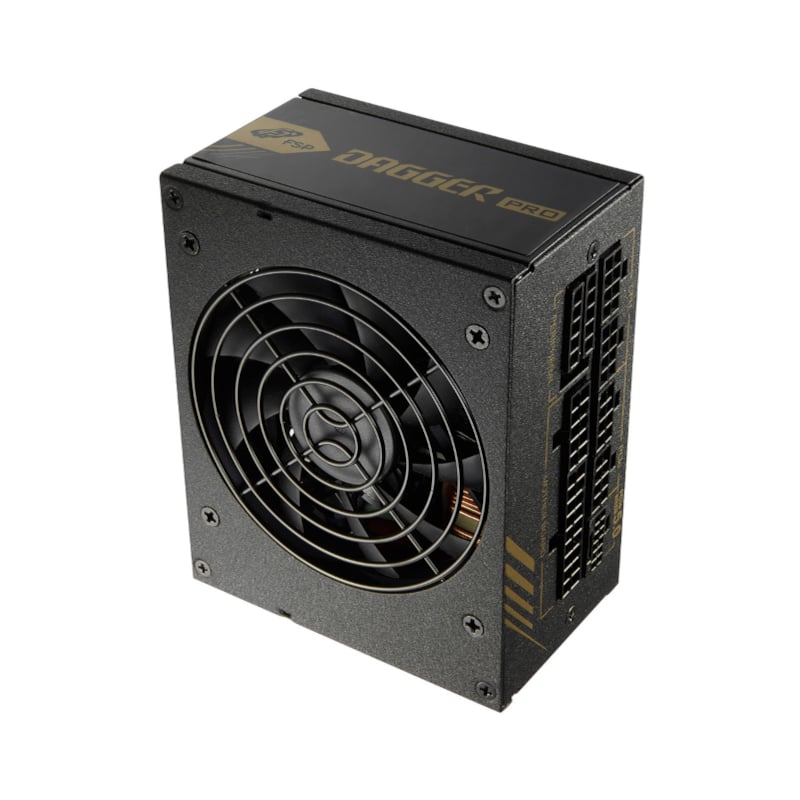

The FSP DAGGER PRO ATX3.0 750W is a power supply with 80 PLUS® Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU-rated power and as a result, reduces lots of electricity cost. The Fully-modular design and flat ribbon cables provide easier installation. An ideal solution for applications with space constraints, enhancing overall airflow efficiency and cable management.
The DAGGER PRO 750W comes with a native PCIe 5.0 connector for the latest graphic cards and features dual CPU power connectors to support high-end motherboards for gaming enthusiasts. The VGA card is a component which needs greedy and stable power support most. The compact-sized DAGGER PRO ATX3.0 750W comes with a single +12V rail design that offers VGA cards full power individually and to avoid any overloading conditions.
It is compatible with most Mini-ITX and Micro ATX small form factor PCs. It is ideal for home computer rigs but a great alternative for mini-PC enthusiasts. It Adapts to your individual requirements, not only does it fit into cases with the SFX form factor but can also be installed easily into normal ATX, Micro-ATX or Mini-ITX cases.
FEATURES:
- Compliance with ATX12V V3.0

- Compliance with PCIe 5.0

- Efficiency ≧ 90% at typical load

- MIA IC (Multiple Intelligence Ability) chipset inside

- Semi-Fanless design for silent operation

- Quiet and long-lasting 92mm ball bearing fan

- Ribbon cables for the need of enthusiasts

- Powerful single +12V rail design

- Intel's Latest CPU ready

- Japanese electrolytic capacitors

- Full protections with OCP, OVP, SCP, OPP, OTP

SPECIFICATIONS:
- Rated Output Power: 750W

- Form Factor: SFX

- 80 PLUS Certification: Gold

- Input Voltage: 100-240V

- Input Current: 12-6A

- Input Frequency: 50-60Hz

- PFC: Active PFC

- Efficiency: 90%

- Fan Type: ball bearing fan,92mm

- Operation Temp: 200,000 Hrs

- Protection: OCP, OVP, SCP, OPP, OTP

- AC Input: 100-240Vac~ 12-6A 50-60Hz

- DC Output: +3.3V(20A), +5V(20A), +12V(70.83A), -12V(0.3A), +5Vsb(2.5A)

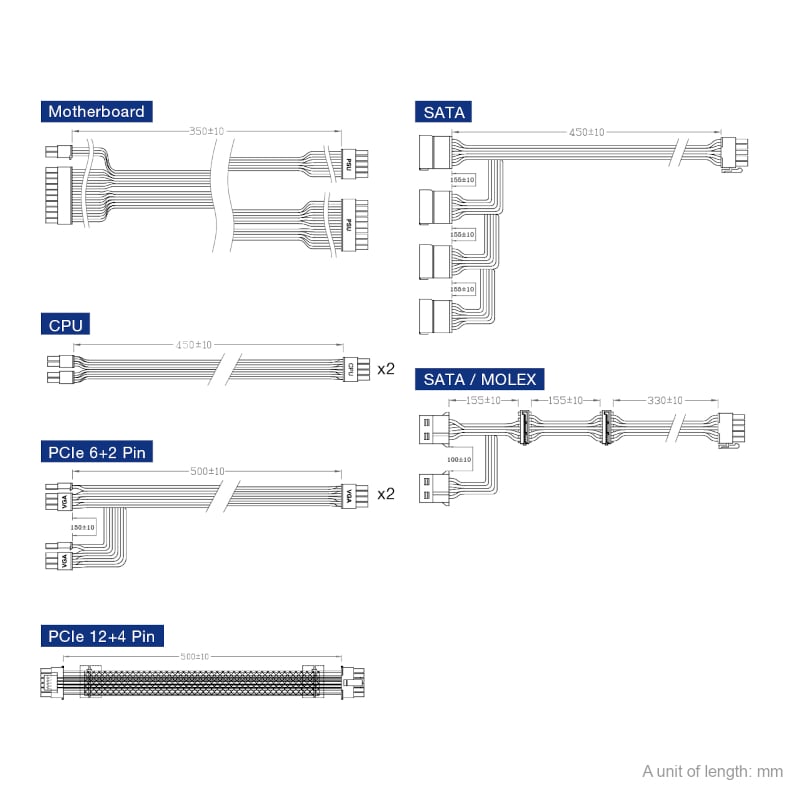

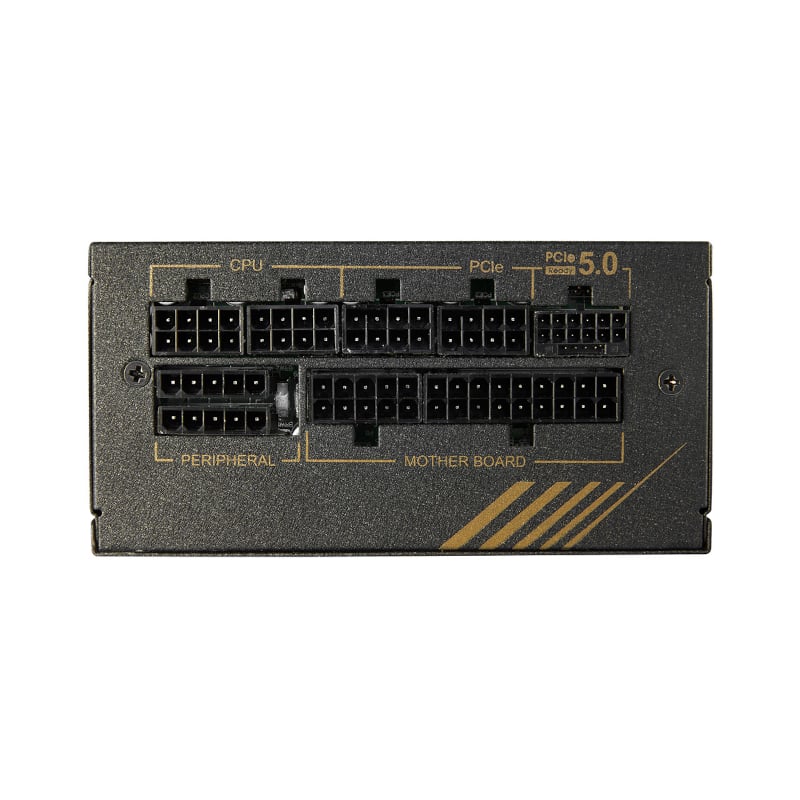

- Connectors:

- ATX 20+4 x1

- 4+4 PIN x2

- PCIe 6+2 x4

- 12VHPWR x1

- SATA x6

- Molex (peripheral) x2

- Product Dimensions: 12.5 × 10 × 6.4 cm

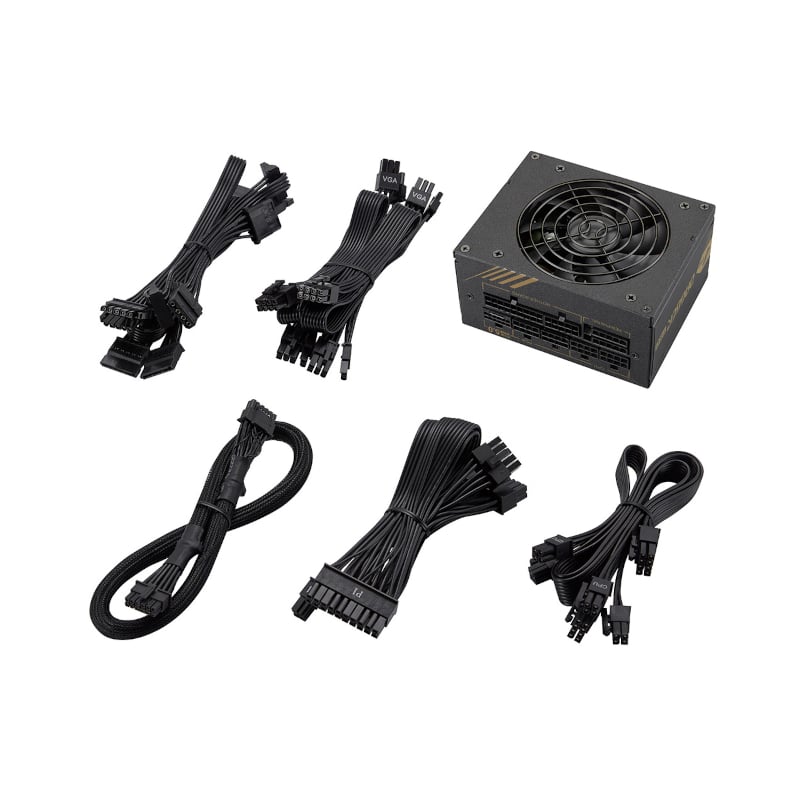

WHAT’S IN THE BOX:
- FSP DAGGER PRO 750W Modular PSU x1

- Modular Cables Set x1
