Description

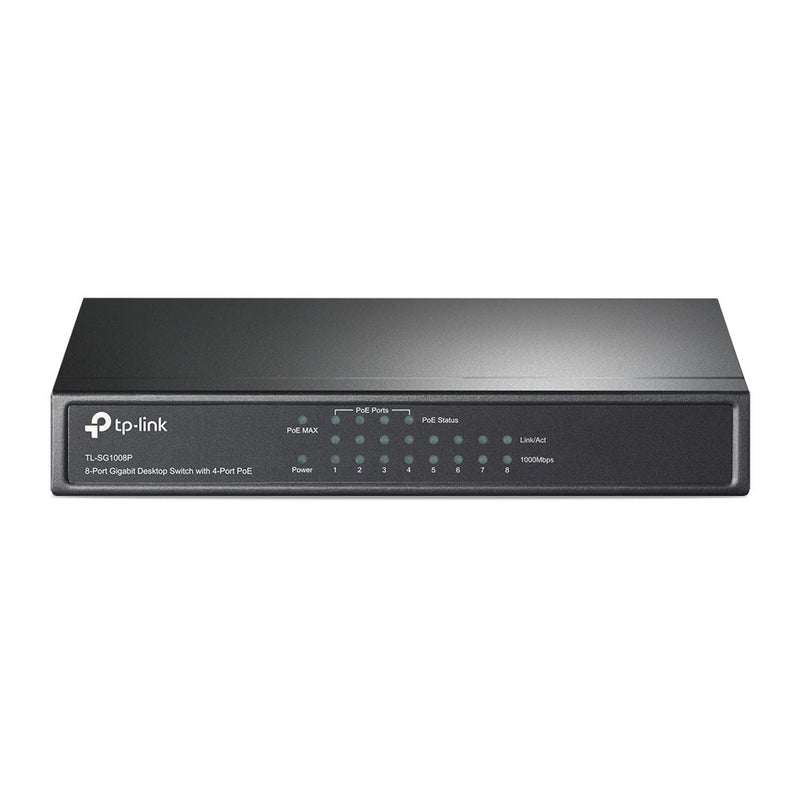

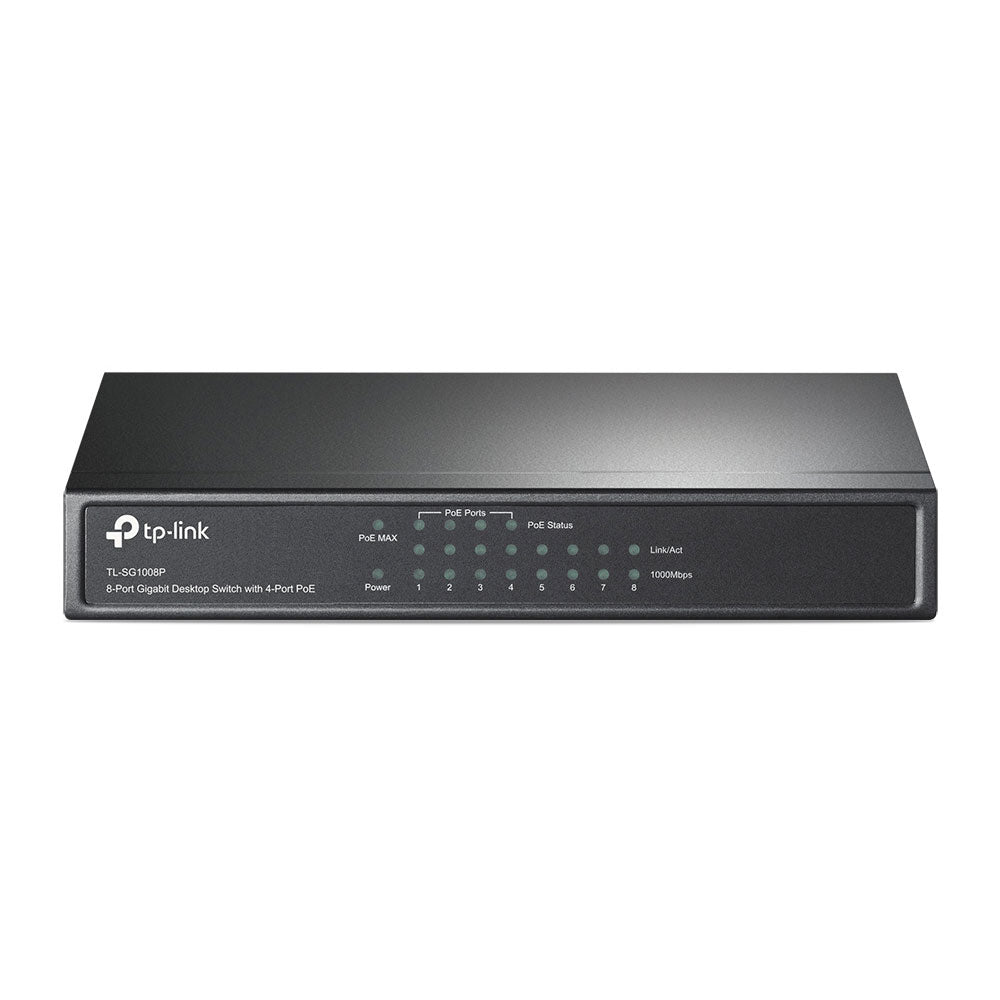

TP-Link TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE
- 8 10/100/1000Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- Requires no configuration and installation
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 55W for all PoE ports
| HARDWARE FEATURES | |
| Interface | 8 10/100/1000Mbps RJ45 Ports |
| AUTO Negotiation/AUTO MDI/MDIX | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| Fan Quantity | Fanless |
| Physical Security Lock | No |
| External Power Supply | External Power Adapter(Output: 48VDC / 1.25A) |
| PoE Ports (RJ45) | Standard: 802.3 af compliant |
| PoE Ports: Port1- Port4 | |
| Power Supply: 55W | |
| Backbound Bandwidth | 16Gbps |
| Mac Address Table | 4K |
| Dimensions ( W x D x H ) | 6.7*3.9*1.1 in. (171*98*27 mm) |
| Max Power Consumption | 5.49W(220/50Hz. no PD connected) |
| 65.24W(220/50Hz. with 55W PD connected) | |
| Max Heat Dissipation | 18.73BTU/h(no PD connected) |
| 222.60BTU/h(with 55W PD connected) | |
| SOFTWARE FEATURES | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | Compatible With IEEE 802.3af Compliant PDs |
| Priority Function | |
| Mac Address Auto-Learning And Auto-Aging | |
| EEE802.3x Flow Control | |
| 802.1p/DSCP QoS | |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG1008P, Power Adapter, Installation Guide |
| Consumption | 65.2W (max. with 55w PoE device connected) |
| 5.5W (max. no PoE device connected) | |
